- Used Injection moulding machine KRAUSS MAFFEI KM 65/80 CX (2010) for sale | GINDUMAC.COM

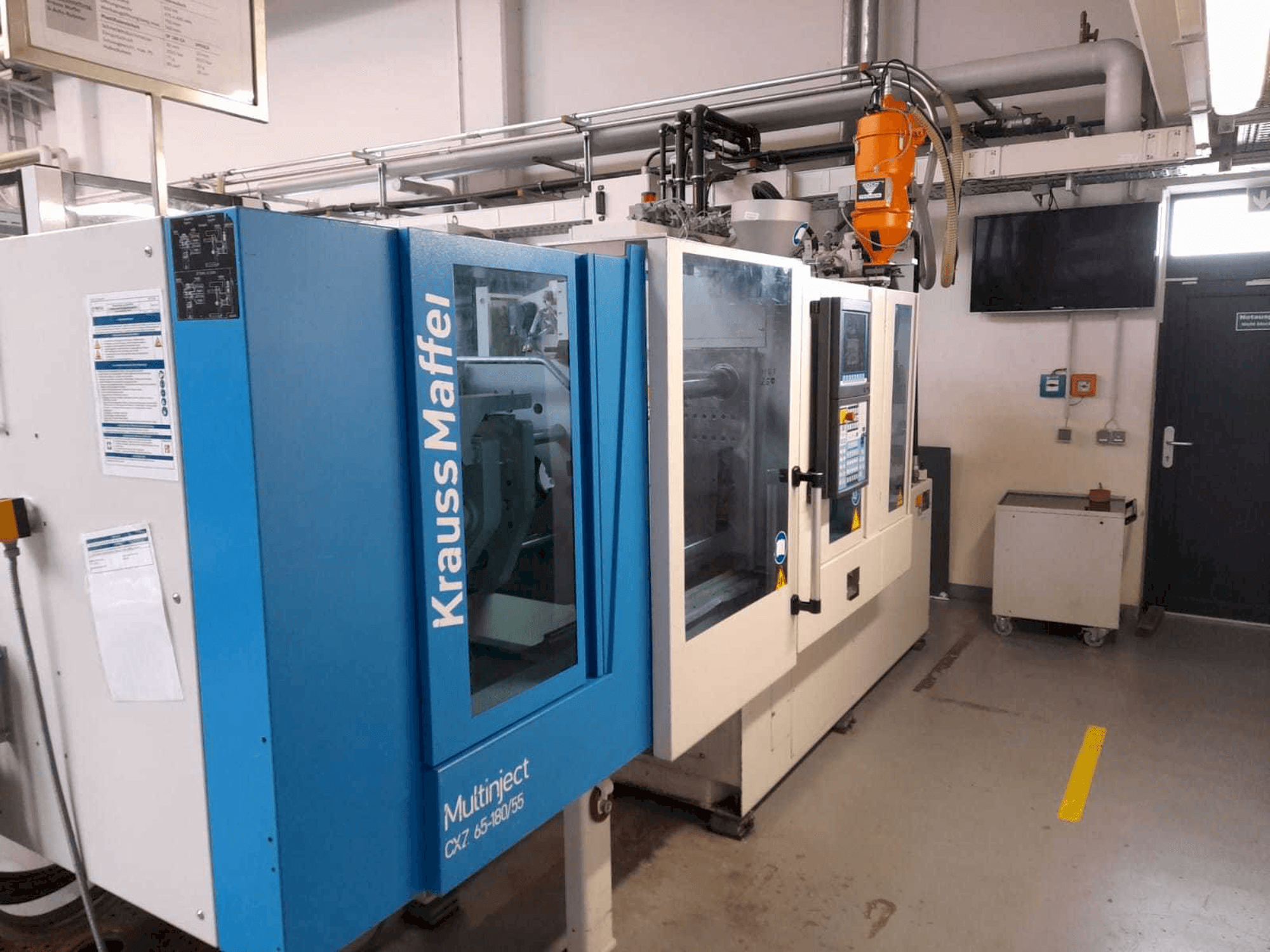

This KRAUSS MAFFEI KM 65/80 CX Injection moulding machine was manufactured in 2010 in Germany. This machine is equipped with a hydraulic clamping unit with a clamping force of 650 kN. It has a tie bar spacing of 470 x 420mm and an opening width of 750mm. The maximum mold opening stroke is 500mm. The plasticizing unit SP180 CX features a 30mm screw diameter, injection pressure of 2025 bar, and a maximum shot weight of 77g (PS) with a stroke volume of 85cm³. Additionally, it includes a plasticizing unit SP55 CX with a 20mm screw diameter, injection pressure of 2025 bar, and a maximum shot weight of 23g (PS) with a stroke volume of 25cm³. The machine has approximately 7,500 operating hours and 2,000 production hours, with a net weight of 4340 kg. Contact us anytime for further information.
Overview
- brand: Krauss Maffei
- year: 2010
- MODEL: KM 65/80 CX
- production hours: 2000
- application type: Injection Moulding
- Location: Germany
- machine type: Injection Moulding Machine
- availability: Sold
Technical Information - Krauss Maffei KM 65/80 CX
General Data
- Machine weight: 4340 KG
Injection Unit
- Screw diameter: 30
- Shot weight: 77
- Stroke volume: 85 CM³
- Injection pressure: 2025 BAR
Clamping unit
- Clamping force: 650 KN
- Opening stroke: 500
- Distance between bars: 470 x 420
Additional Information
- Technical Machine Benefits:
- - Plasticising unit sp180 cx described above
- - Plasticising unit sp55 cx - screw diameter 20mm, injection pressure 2025 bar, shot weight max. Ps 23g, stroke volume 25cm³
- - Opening width 750mm
- - Operating hours: 7,500
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
