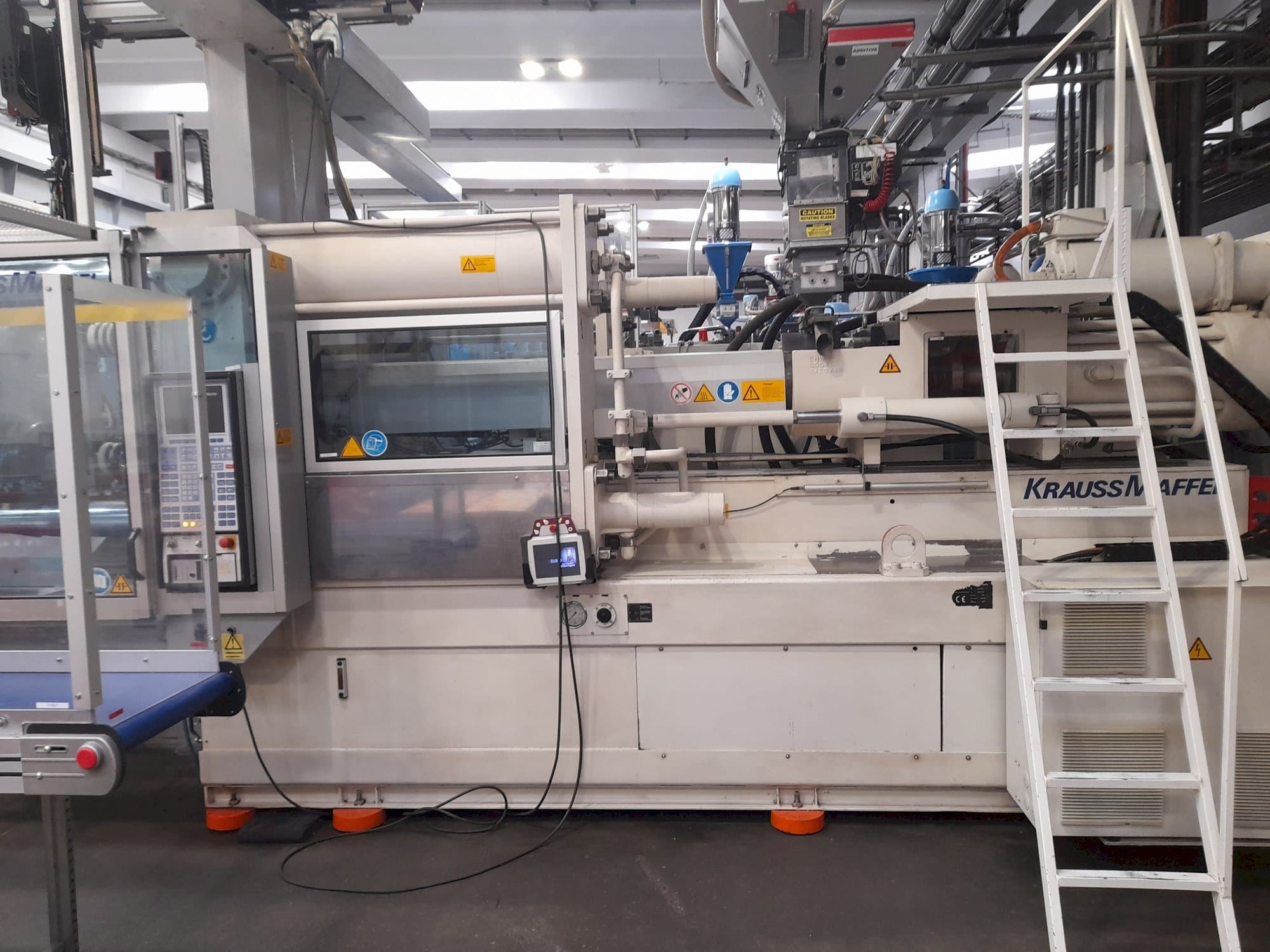

Front view of Krauss Maffei KM 450-3500 C3  machine

Krauss Maffei KM 450-3500 C3

Krauss Maffei - KM 450-3500 C3


Rs. 6,226,250

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

Click to chat on WhatsApp
Show in original language

This Krauss Maffei KM 450-3500 C3 Injection moulding machine was built in the year 2008 and has 88518 hours. It is equipped with a Krauss Maffei MC4 control unit. The machine has a clamping force of 5500 kN and a screw diameter of 90 mm.


  • brand: Krauss Maffei
  • year: 2008
  • MODEL: KM 450-3500 C3
  • production hours: 88518
  • application type: Injection Moulding
  • Location: Poland
  • machine type: Injection Moulding Machine
  • availability: Immediately
  • control unit brand: Krauss Maffei
  • GINDUMAC ID: PL-INJ-KRA-2008-00004

Technical Information

General Data

  • Measurements width: 7990 mm
  • Measurements depth: 2560 mm
  • Measurements height: 2550 mm
  • Machine weight: 26300 kg

Control Unit

  • Brand: Krauss Maffei
  • Model: MC4

Injection Unit

  • Screw diameter: 90 mm
  • Shot weight: 1777 g
  • Stroke volume: 1953 CM³
  • Injection pressure: 1740 bar

Clamping unit

  • Clamping force: 4500 kn
  • Opening stroke: 280 kn

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Tie bar spacing (h) 900 mm
      • - Tie bar spacing (v) 900 mm
      • - Platen length: 1270 mm
      • - Platen width: 1200 mm
      • - Opening of the press: 1170 mm
      • - L/d ratio: 23
      • - The machine also has a hydraulic ejector, one hydraulic core, one pneumatic core, and sequential double needle closing
    • Qualitative Machine Benefits:
      • - Ready for tests

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
