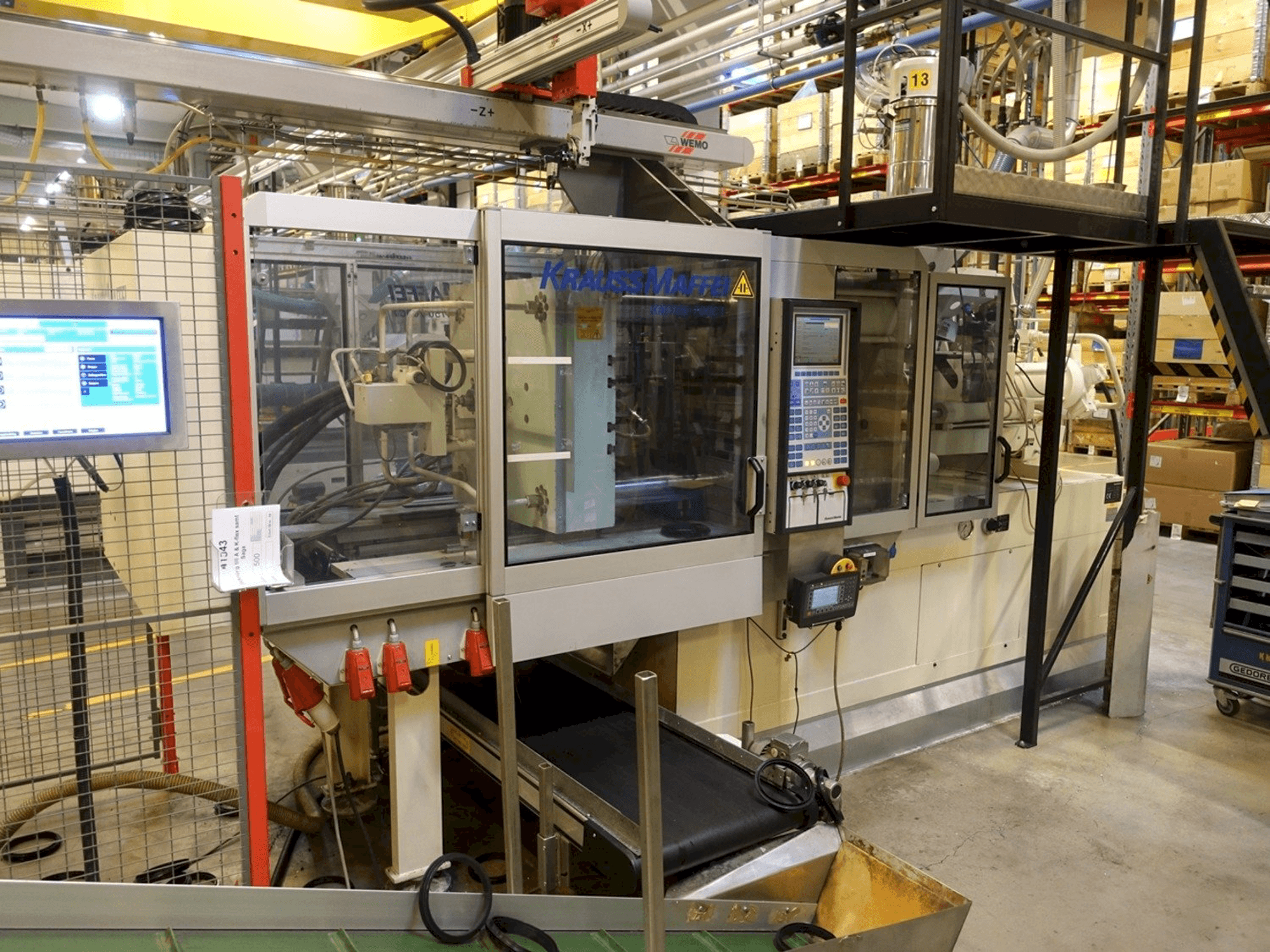

Front view of Krauss Maffei KM 150-700 C1 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Krauss Maffei KM 150-700 C1

Photo Gallery

Krauss Maffei - KM 150-700 C1SE-INJ-KRA-2002-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Krauss Maffei KM 150-700 C1 Injection moulding machine

Show in original language

This Krauss Maffei KM 150-700 C1 Injection moulding machine was made in the year 2002 and has 62224 running hours. The machine has a clamping force of 1500 kN, a screw diameter of 50 mm, and includes a WEMO portal longitudinal robot.

Overview

brand: Krauss Maffei
year: 2002
MODEL: KM 150-700 C1
production hours: 62224
application type: Injection Moulding
Location: Sweden
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Krauss Maffei KM 150-700 C1

Injection Unit

Screw diameter: 50 mm
Stroke volume: 377 CM³
Injection pressure: 1892 bar

Clamping unit

Clamping force: 1500 kn
Opening stroke: 600 mm
Max open daylight: 840 mm
Distance between bars: 500 x 500 mm
Mould height min: 240 mm

Additional equipment

- WEMO (2002) portal longitudinal robot, Type: 8-5 PPE
- Colour feeder

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Platens hxv: 780 x 790 mm
- - Core pullers: 2
- - Heating zones: 4

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
