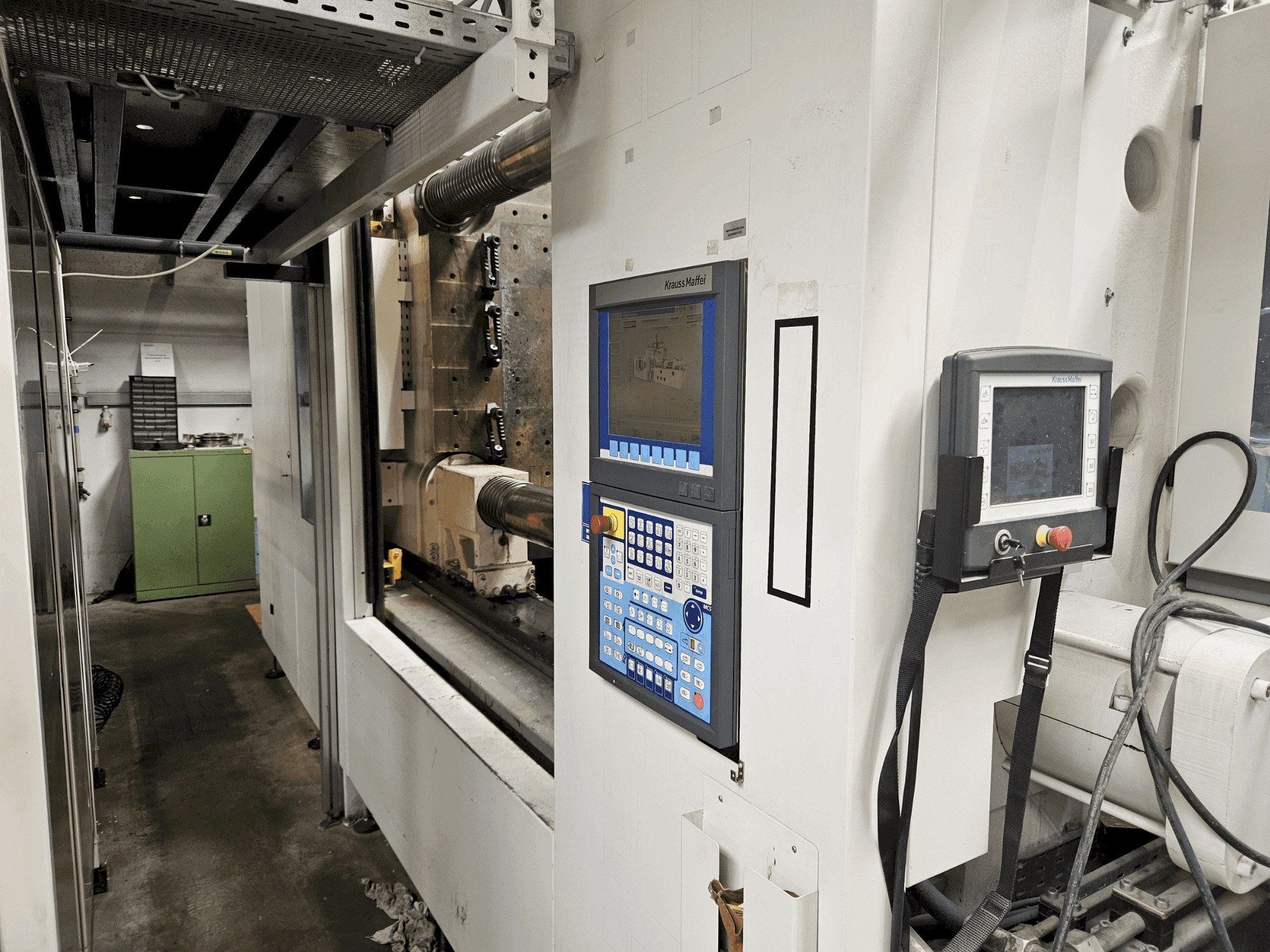

This Krauss Maffei 800-12000 MX was manufactured in 2007. It features a hydraulic clamping unit with a force of 8000 kN and a standard screw with a diameter of 135 mm. The machine offers a maximum injection pressure of 1389 bar and a shot weight in PS of 1600 g. It includes a handling robot, KM LRX 500, enhancing operational efficiency. For more information about this Injection moulding machine, please reach out to us.
Overview
- brand: Krauss Maffei
- year: 2007
- MODEL: 800-12000 MX
- production hours: 87676
- application type: Injection Moulding
- Location: Poland
- machine type: Hydraulic Injection Moulding Machine
- availability: Immediately
- control unit brand: KRAUSS MAFFEI
Technical Information - Krauss Maffei 800-12000 MX
Control Unit
- Model: MC5
- Brand: KRAUSS MAFFEI
Injection Unit
- Screw diameter: 135 mm
Clamping unit
- Clamping force: 8000 kN
- Ejector stroke: 250 mm
Additional equipment
- - Handling Robot: KM LRX 500
- - Equipped with a handling robot for automated processes
Additional Information
- Technical Machine Benefits:
- - High clamping force of 8000 kn for robust operations
- - Advanced control system for precise operations
- - Centering ring: m36 // core pullers: 2 // cooling circuits: 12 // hot runner control: 2 zones
- - Type of clamping unit: hydraulic
- - Volume of screw channel: 8588 cm³
- - Non-return valve: yes
- - Max. Injection pressure: 1389 bar // max. Injection rate: 1415 cm³/s
- - L/d ratio: 23:1 // plasticizing capacity: 8588 g/s // injection capacity: 7815 cm³
- - Shot weight in ps: 1600 g // opening stroke: 600-1100 mm // mold height (min/max): 2100 mm // max. Daylight opening: 1960/1740 mm
- - Platen dimensions: 1400 x 1120 mm // clearance between tie bars: 12200 mm //max. Mold weight: 250/250 kg //
- Qualitative Machine Benefits:
- - High injection pressure and rate for efficient molding
- - Versatile with options for core pullers and hot runner control
- - machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
