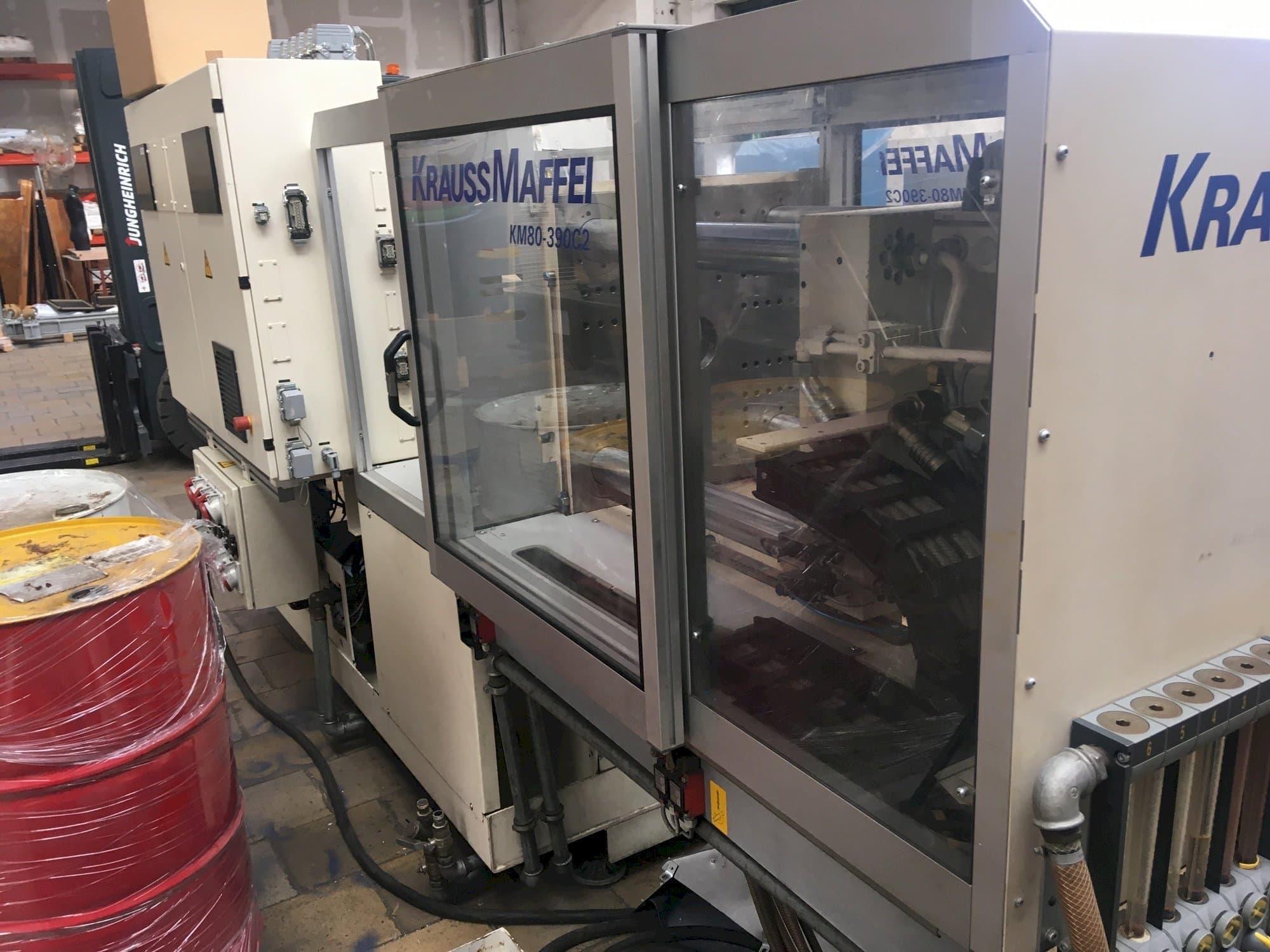

This Krauss Maffei 80/390 C2 Injection Moulding Machine was produced in 2002 in Germany and has been operative for 64000 hours. Equipped with a control unit of the same brand, this machine offers a clamping force of 800 kN. It presents really good conditions, as it has been revised by Krauss Maffei technicians.
Overview
- brand: Krauss Maffei
- year: 2002
- MODEL: 80/390 C2
- production hours: 64000
- application type: Injection Moulding
- Location: Czech Republic
- machine type: Hydraulic Injection Moulding Machine
- availability: Sold
- control unit brand: KRAUSS MAFFEI
Technical Information - Krauss Maffei 80/390 C2
General Data
- Measurements width: 4100 mm
- Measurements depth: 1400 mm
- Measurements height: 2200 mm
- Machine weight: 3500 kg
Control Unit
- Brand: KRAUSS MAFFEI
- CNC main language: german
- CNC language customizable: Yes
Injection Unit
- Screw diameter: 35 mm
- Shot weight: 142 g/PS
- Stroke volume: 156 cm³
- Injection pressure: 2429 bar
- Screw speed: 310 rpm
- Heating capacity: 12 kW
- Nozzle pressure: 84 bar
Clamping unit
- Clamping force: 800 kN
- Opening stroke: 500 mm
- Max open daylight: 750 mm
- Distance between bars: 405 x 405 mm
- Mould height min: 250 mm
- Size of mold platens: 610 x 610 mm
- Ejector stroke: 150 mm
- Ejector force for / back: 22/10 kN
Additional Information
- Technical Machine Benefits:
- - Robot interface as per euromap 18
- - 2x hotrunner controller
- - 6-fold waterbattery
- - Pneumatic valve
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
