Krauss Maffei - 420 - 3000 CXHU-INJ-KRA-2012-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- ➤ Used Krauss Maffei 420 - 4300 CX For Sale | gindumac.com

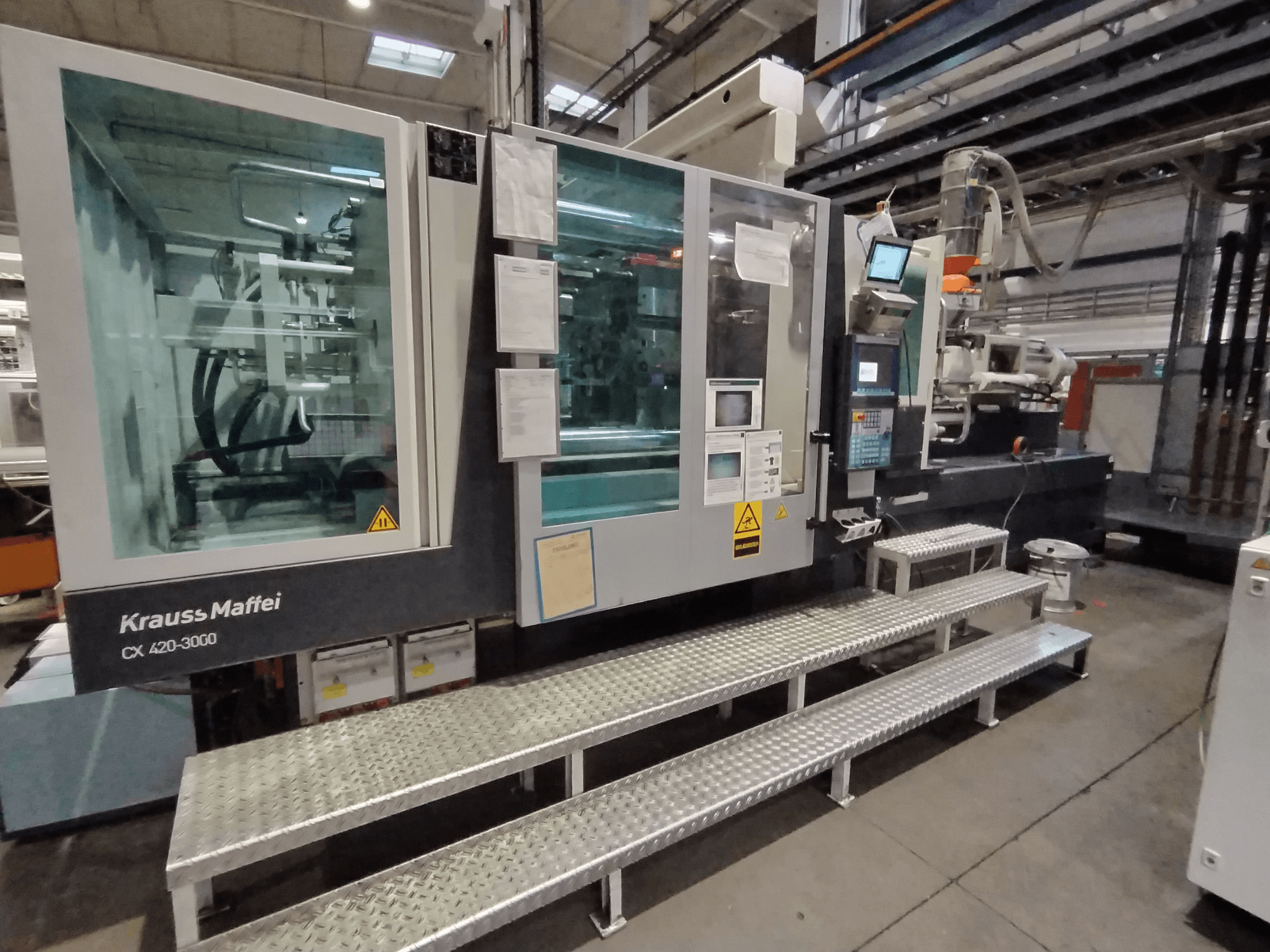

This Krauss Maffei 420 - 4300 CX hydraulic injection moulding machine was manufactured in 2012. It features a clamping force of 4200 kN and a platen size of 1200 mm x 1200 mm. The machine includes an injection unit with a screw diameter of 80 mm and an injection pressure of 2205 bar. Consider the opportunity to buy this Krauss Maffei 420 - 4300 CX hydraulic injection moulding machine. Contact us for further details.
Overview
- brand: Krauss Maffei
- year: 2012
- MODEL: 420 - 3000 CX
- production hours: 70936
- application type: Injection Moulding
- Location: Hungary
- machine type: Hydraulic Injection Moulding Machine
Technical Information - Krauss Maffei 420 - 3000 CX
Technical Specification
- Clamping Force: 4200 kN
- Screw Diameter: 80 mm
Additional Information
Tie bar spacing (H x V): 800 x 800 mm
Platen dimensions (H x V): 1200 x 1200 mm
Mold installation height (min): 380 mm
Opening stroke: 1020 mm
Daylight (platen distance): 1400 mm
Max. mold weight:
Fixed side (DS): 3350 kg
Moving side (AS): 4460 kg
Total listed: 6700 kg
Ejector:
Stroke: 250 mm
Force: 95 kN
Retraction force: 48 kN
Pneumatic ejector: No
Core pulls: 2 on moving side (AS) + 2 on fixed side (DS)
Shut-off nozzle: 2-fold hydraulic cascade
Injection unit 1:
Type: SP 4300
Screw diameter: 80 mm
Injection pressure: 2205 bar
Stroke volume: 1810 ccm
Shot weight (PS): 1647 g
Injection flow (PS): 498 g/s
Plasticizing flow: 106 g/s
Screw L/D: 22.5
Nozzle radius: 12 mm
Armored injection unit: Yes
Additional equipment
KM Linear robot, built in 2021
Hot runner control, 12-zone
Mold sensors: Priamus (p=2 / t=0)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
