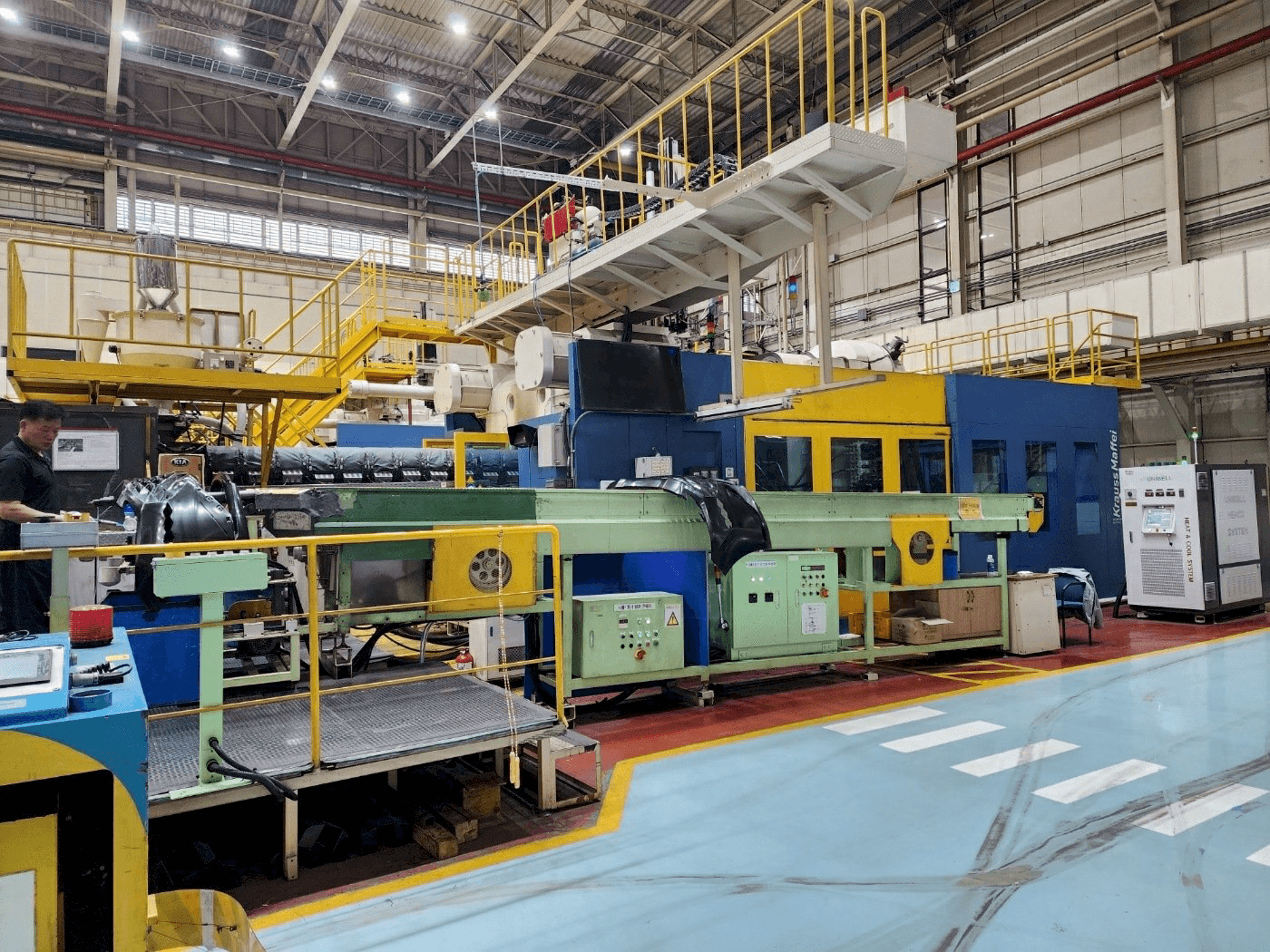

Front view of Krauss Maffei 3200-24500 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Krauss Maffei 3200-24500

Photo Gallery

Krauss Maffei - 3200-24500KR-INJ-KRA-2014-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Krauss Maffei 3200-24500 Injection Moulding Machine

Show in original language

This Krauss Maffei 3200-24500 Injection Moulding Machine was made in the year 2014. The machine has a clamping force of 32000 kN, a screw diameter of 175 mm, and an injection pressure of 1894 bar.

Overview

brand: Krauss Maffei
year: 2014
MODEL: 3200-24500
application type: Injection Moulding
Location: South Korea
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Krauss Maffei 3200-24500

General Data

Measurements width: 18200 mm
Measurements depth: 5210 mm
Measurements height: 4070 mm

Injection Unit

Screw diameter: 175 mm
Shot weight: 12381 g
Stroke volume: 17438 CM³
Injection pressure: 1894 bar

Clamping unit

Clamping force: 32000 kn
Max open daylight: 4200 mm
Distance between bars: 2270 x 1820 mm
Mould height min: 1100 mm
Mould height max: 2000 mm
Size of mold platens: 3240 x 2810 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Injection rate: 1. 720 cm³/s
- - Power: installed max: 410 x 310 kw

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
