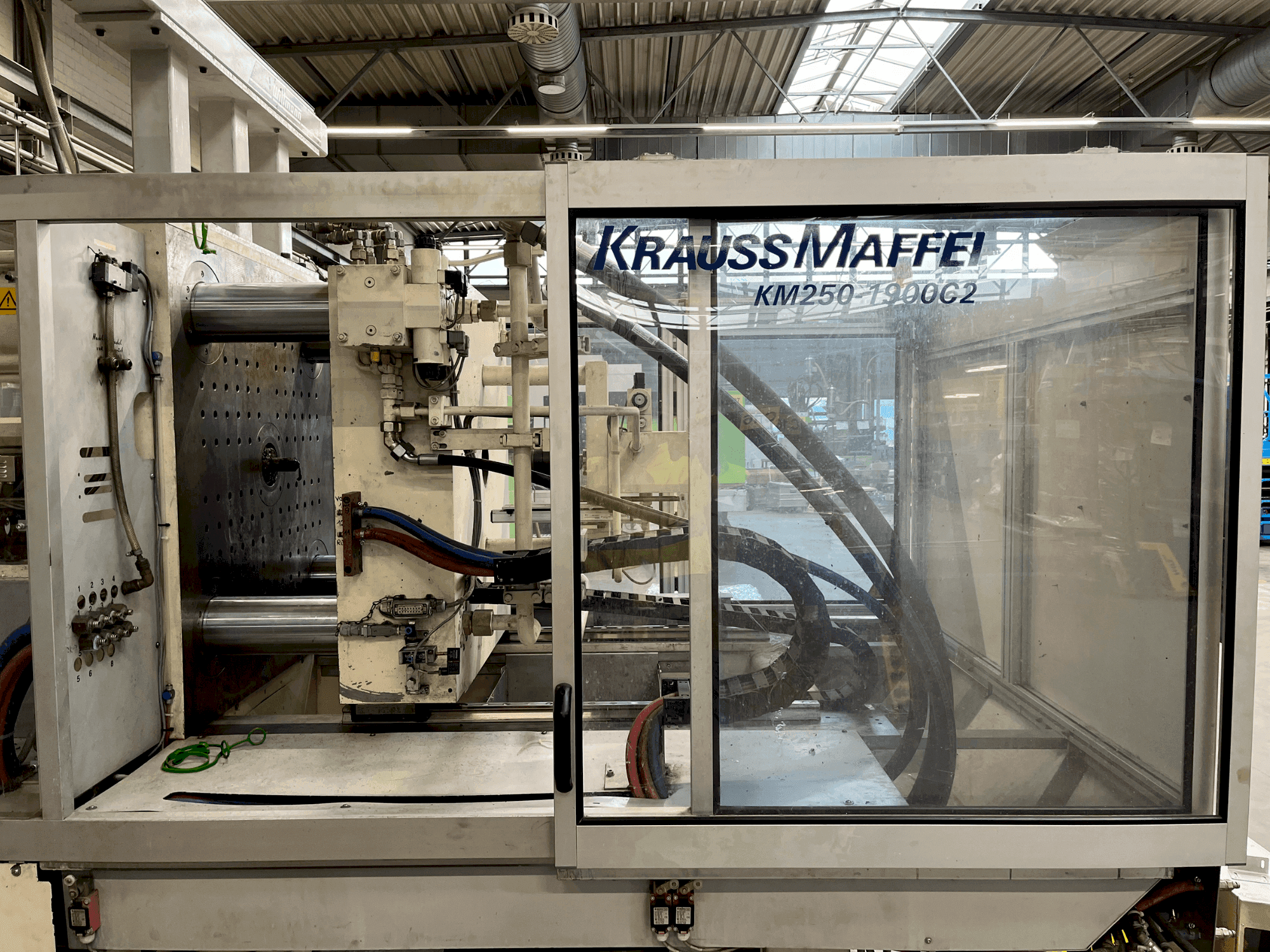

Front view of Krauss Maffei 250-1900 C2  machine

Krauss Maffei - 250-1900 C2DE-INJ-KRA-2004-00004

Rs. 1,337,100
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Krauss Maffei 250-1900 C2 was manufactured in 2004. A robust hydraulic injection moulding machine, it features a clamping force of 250 tons and a maximum opening stroke of 820 mm. The tie bar spacing is 630 mm both horizontally and vertically. With over 84,224 operating hours, this machine has proven reliability and performance. If you are looking to get high-quality moulding capabilities, consider the Krauss Maffei 250-1900 C2 machine we have for sale. Contact us for more information.

Overview

  • brand: Krauss Maffei
  • year: 2004
  • MODEL: 250-1900 C2
  • production hours: 84224
  • application type: Injection Moulding
  • Location: Germany
  • machine type: Hydraulic Injection Moulding Machine
  • availability: Immediately

Technical Information - Krauss Maffei 250-1900 C2

Clamping unit

  • Clamping force: 250 tons KN
  • Opening stroke: 820 mm
  • Ejector stroke: 200 mm

    Additional equipment

    • - Core Pullers: Ejector Side: 2x (on the moving clamping plate)
    • - Connector - Core Pull Feedback (Ejector Side): Yes (counter-operating side)
    • - Connector - Ejector Plate Safety: Yes (counter-operating side)
    • - Tool Needle Shut-Off: Yes (single pneumatic or hydraulic)

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Distance between clamping plates: maximum 1150 mm / minimum 330 mm
        • - Tie bar spacing (horizontal/vertical): 630 mm / 630 mm
        • - Pull-out tie bars: no
        • - Tool centering flange: nozzle side: 160h7 mm
        • - Tool centering flange: ejector side: 160h7 mm
        • - Horizontal injection unit screw: 60 mm
        • - Nozzle radius (horizontal injection unit): 15 mm
        • - Clearance diameter for nozzle in the mold, including heating band (horizontal injection unit): 180 mm
        • - Machine bed width: 750 mm

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
