- KRAUSS MAFFEI 160/750 CX POL Injection moulding machine

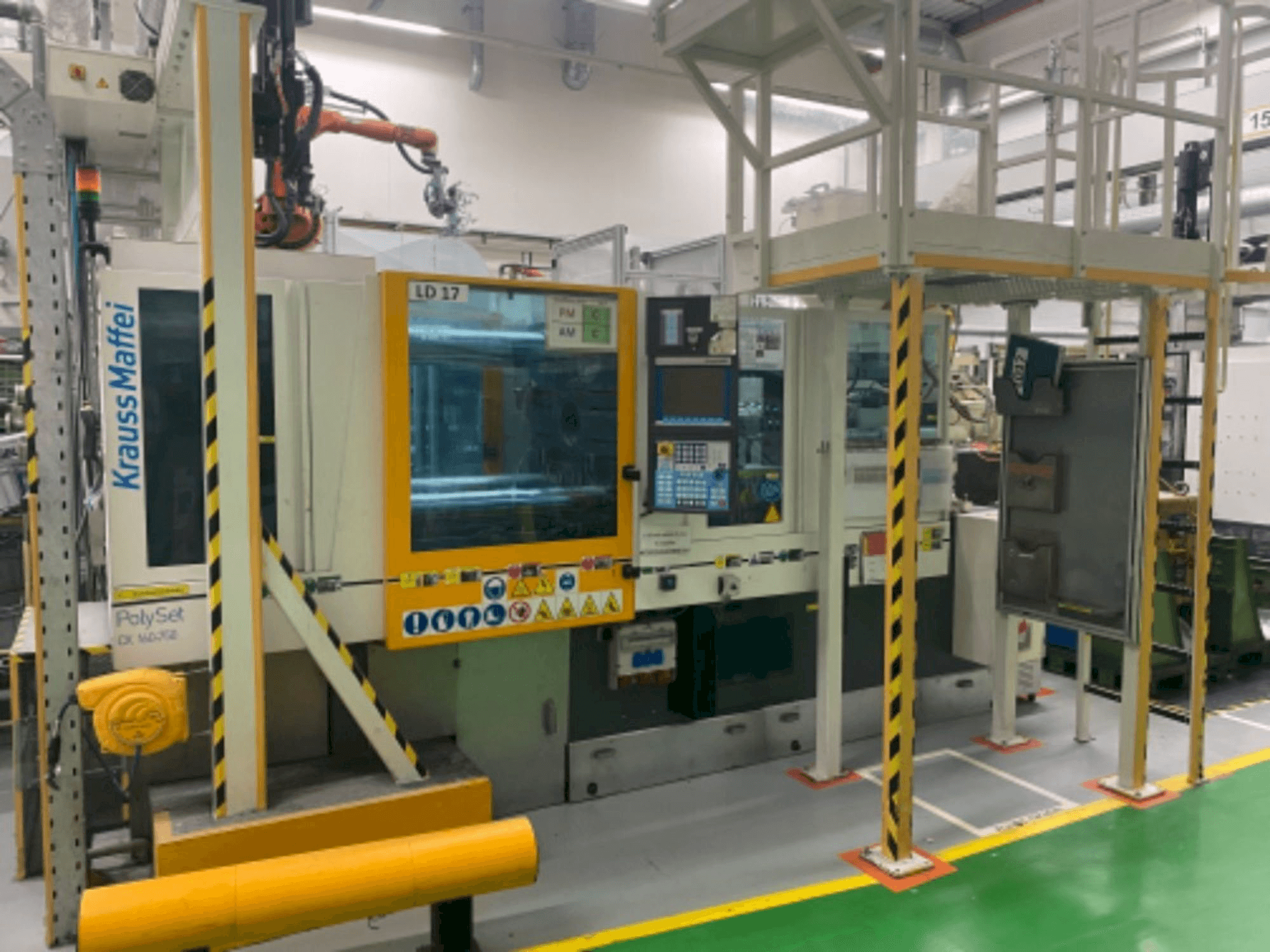

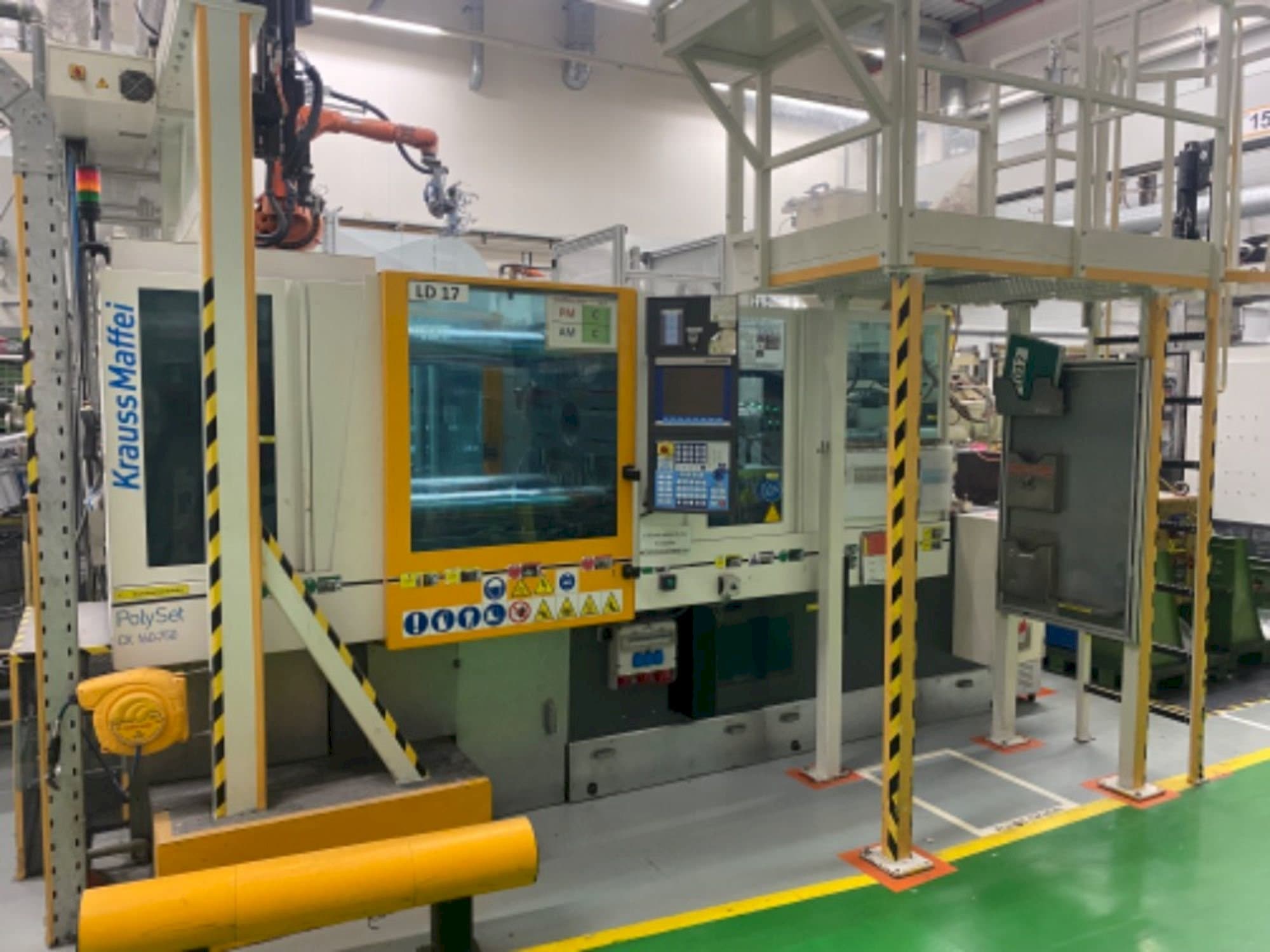

This KRAUSS MAFFEI 160/750 CX POL Injection moulding machine was manufactured in the year 2013 in Germany. It is equipped with a K-M control unit. The machine has a screw diameter of 35 mm and a clamping force of 1600 kN.
Overview
- brand: Krauss Maffei
- year: 2013
- MODEL: 160/750 CX POL
- application type: Injection Moulding
- Location: Czech Republic
- machine type: Hydraulic Injection Moulding Machine
- availability: Sold
- control unit brand: ENGEL
Technical Information - Krauss Maffei 160/750 CX POL
Control Unit
- Model: K-M
- Brand: ENGEL
Injection Unit
- Screw diameter: 35 mm
- Stroke volume: 115 CM³
- Injection pressure: 1488 bar
Clamping unit
- Clamping force: 1600 kN
- Opening stroke: 950 mm
- Ejector stroke: 75 mm
Additional Information
- Technical Machine Benefits:
- - H/r zone 4-4
- - Core pull fixed 3
- - Core pull moving 3
- - Total installed power 80 kw
- - Including 3-axis k-m robot
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
