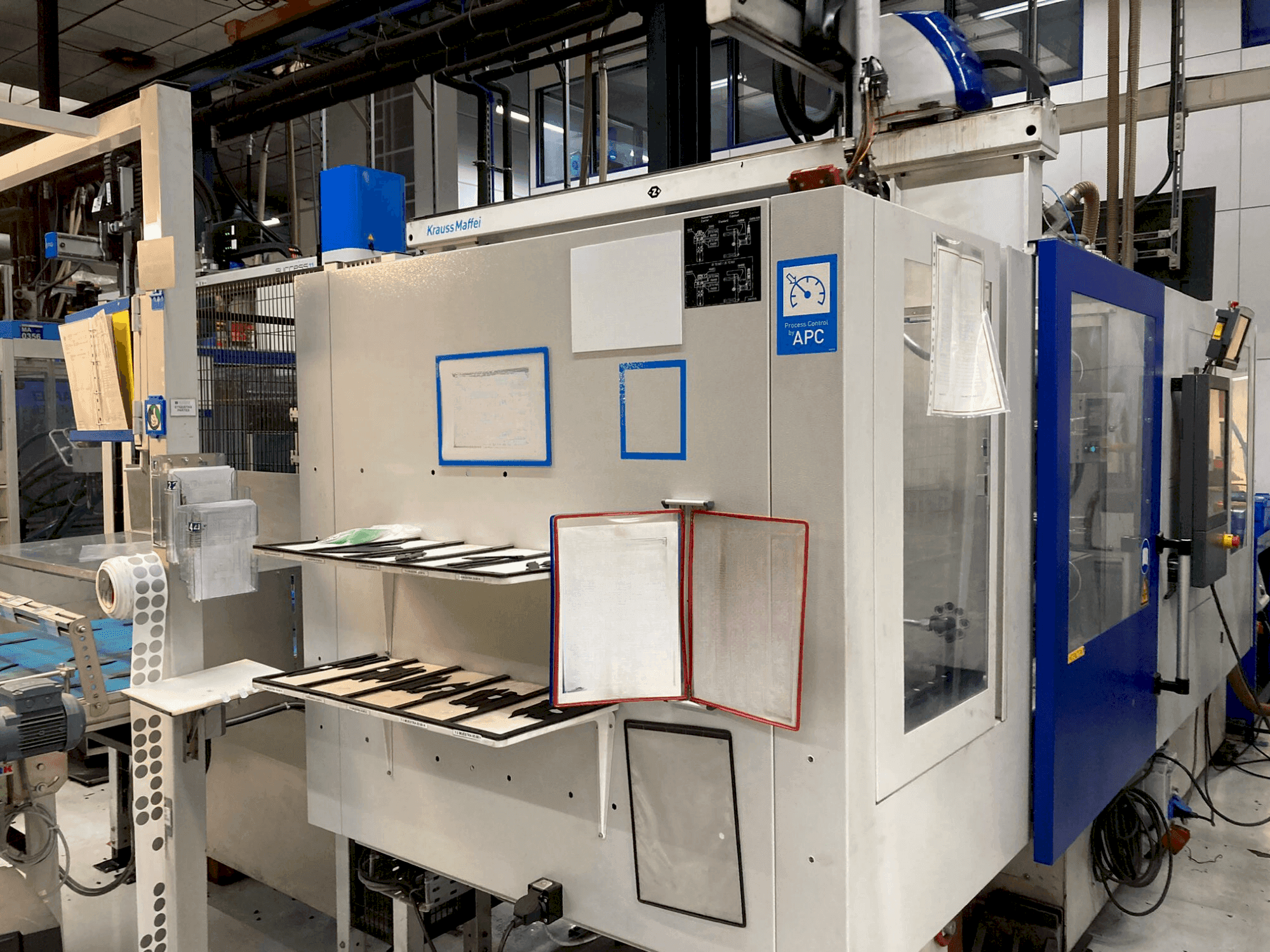

Krauss-Maffei 160-380 CX Injection moulding machine

Show in original language

This Krauss-Maffei 160-380 CX Injection moulding machine was manufactured in the year 2016 in Germany. It is equipped with a clamping force of 1600 kN, a SP 380 injection unit with a screw diameter of 35 mm. Shot weight for PS is at 140g.

Overview

brand: Krauss Maffei
year: 2016
MODEL: 160-380 CX
application type: Injection Moulding
Location: Spain
machine type: Injection Moulding Machine
availability: Immediately
control unit brand: KRAUSS MAFFEI
GINDUMAC ID: ES-INJ-KRA-2016-00001

Technical Information

General Data

Measurements width: 4600 MM
Measurements depth: 1600 MM
Measurements height: 2000 MM
Machine weight: 8200 kg

Control Unit

Brand: KRAUSS MAFFEI
Model: MC6

Injection Unit

Screw diameter: 35 mm
Shot weight: 140g (PS)
Stroke volume: 154 cm3 CM³
Injection pressure: 2429 bar
Heating capacity: 10.9 kW
Nozzle pressure: 50 kN

Clamping unit

Clamping force: 1600 kN
Opening stroke: 950
Max open daylight: 520 x 520 mm
Mould height min: 300 mm
Mould height max: 650 mm
Size of mold platens: 820 x 845 mm
Ejector stroke: 150 mm
Ejector force for / back: 22.6/9.8 kN

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
