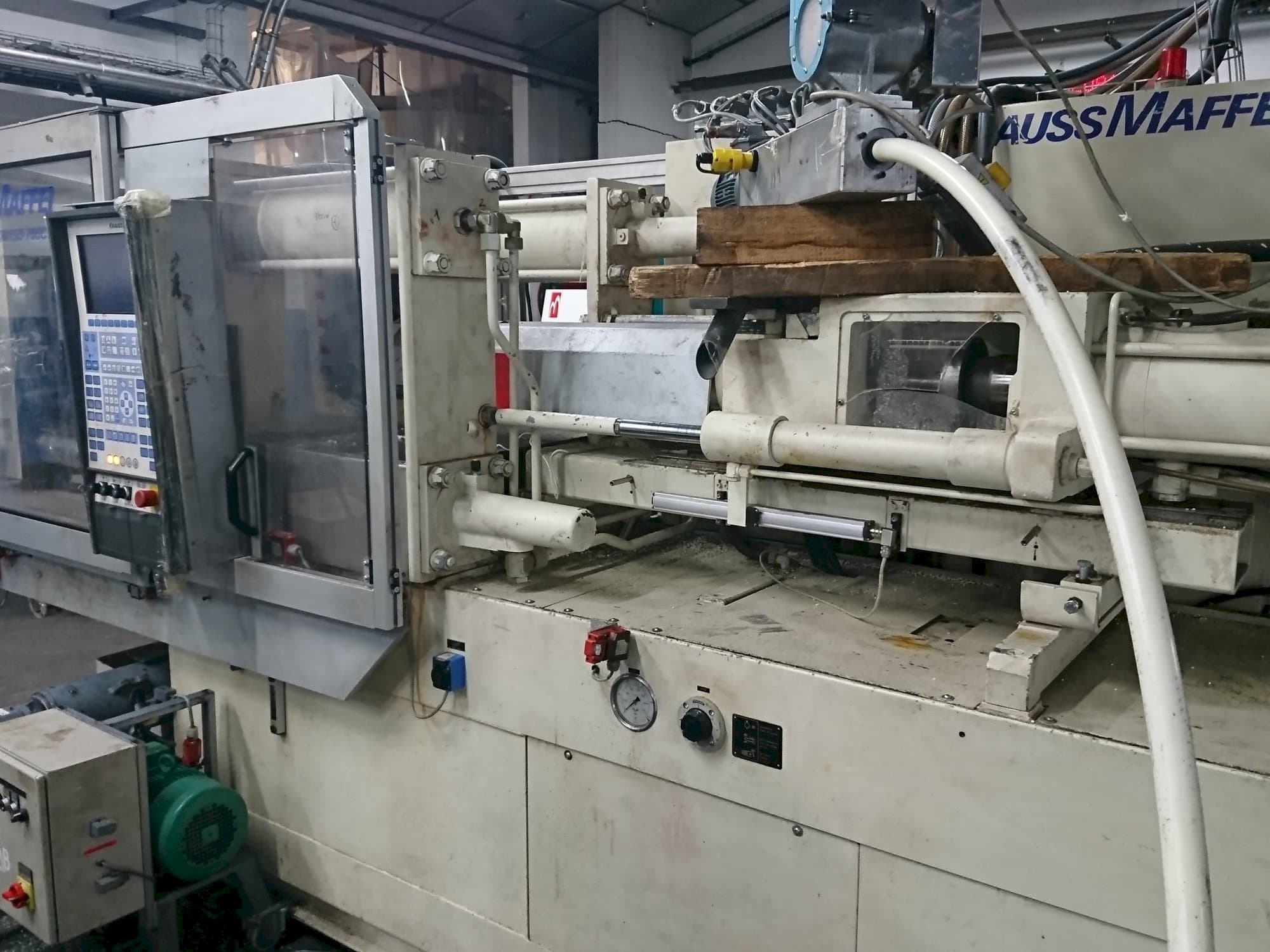

Front view of Krauss Maffei 150-700 C1 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Krauss Maffei 150-700 C1

Photo Gallery

Krauss Maffei - 150-700 C1FR-INJ-KRA-1999-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Krauss Maffei 150-700 C1 Injection Moulding Machine

Show in original language

This Krauss Maffei 150-700 C1 Injection Moulding Machine was produced in 1999 in Germany. It has a production record of approximately 87400 hours. It is operated through a control unit of the same brand. This machine can work with a clamping force of 1500 kN, and an injection pressure of 1892 bar.

Overview

brand: Krauss Maffei
year: 1999
MODEL: 150-700 C1
production hours: 87400
application type: Injection Moulding
Location: France
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Krauss Maffei 150-700 C1

General Data

Measurements width: 4670 mm
Measurements depth: 1480 mm
Measurements height: 2160 mm
Machine weight: 7000 kg

Injection Unit

Screw diameter: 50 mm
Shot weight: 343 g
Stroke volume: 377 ccm CM³
Injection pressure: 1892 bar
Plasticizing rate max.: 35 g/s
Screw speed: 255 1/min

Clamping unit

Clamping force: 1500 kN
Max open daylight: 1000 mm
Distance between bars: 500 x 500 mm
Mould height min: 400 mm
Size of mold platens: 780 x 790 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
