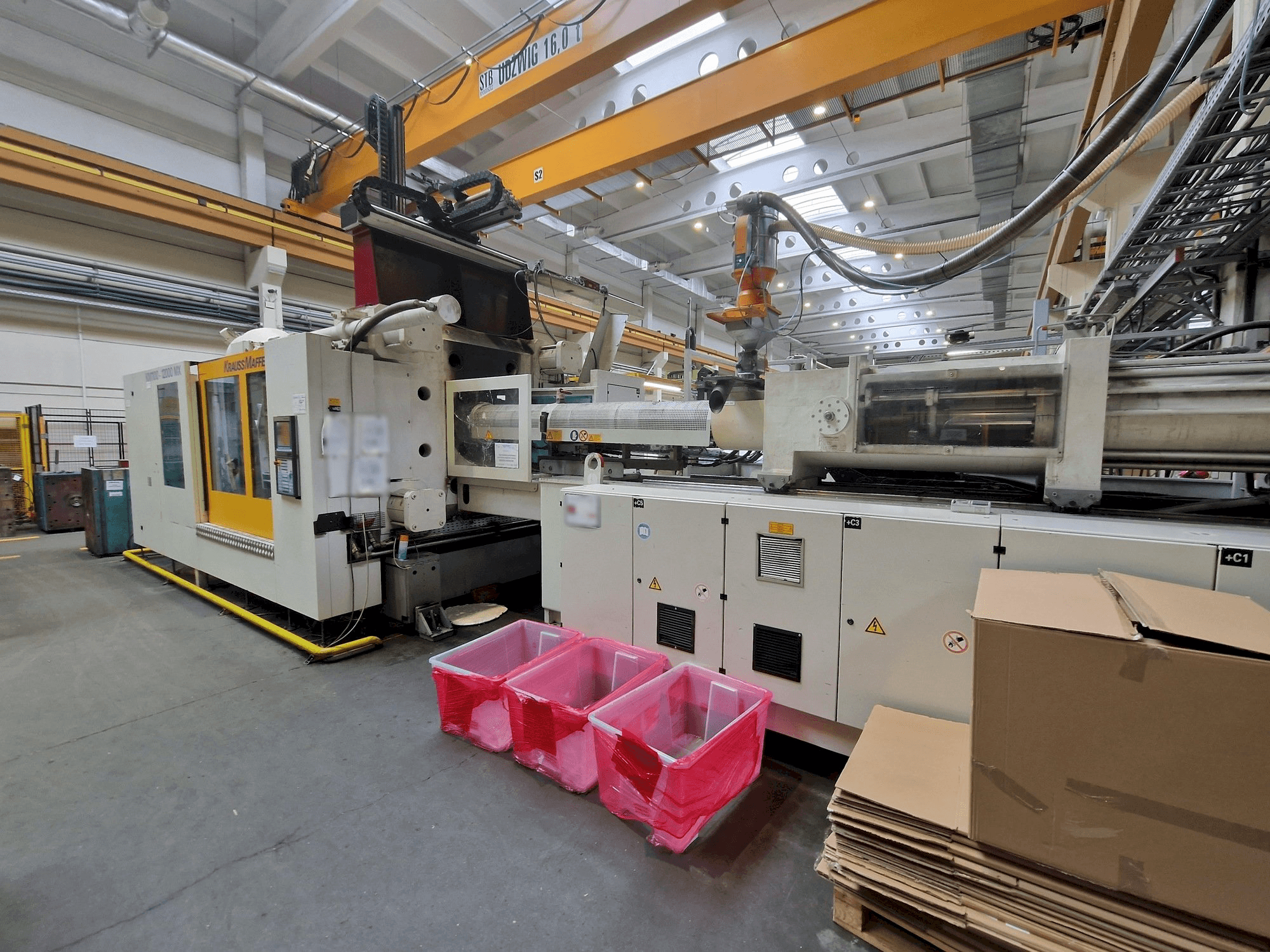

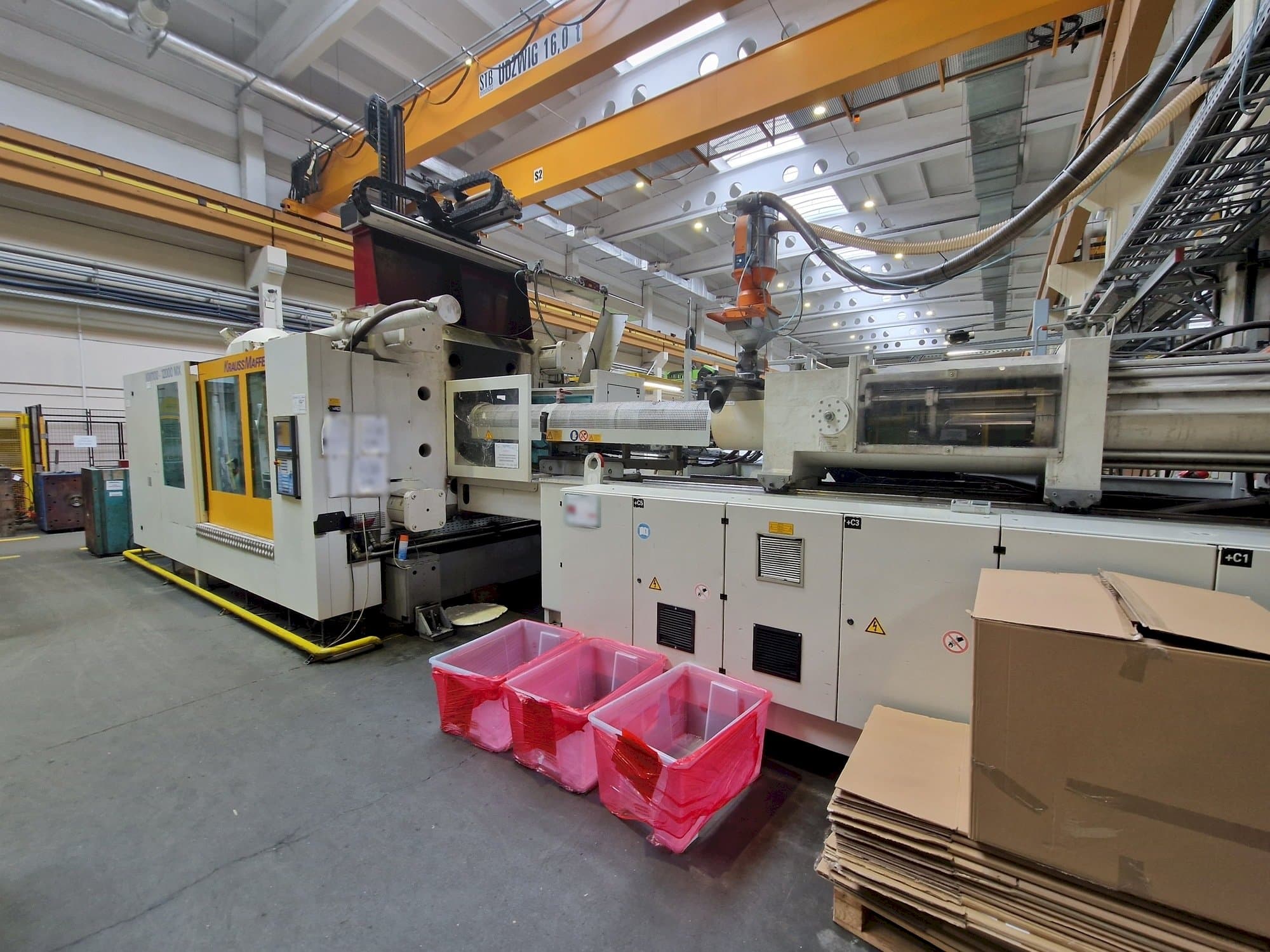

Front view of Krauss Maffei 1100-12000 MX machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Krauss Maffei 1100-12000 MX

Photo Gallery

Krauss Maffei - 1100-12000 MXPL-INJ-KRA-2008-00003

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Kraus Maffei 1100-12000 MX Injection moulding machine

Show in original language

This Kraus Maffei 1100-12000 MX Injection moulding machine was manufactured in the year 2008 in Poland and has 95845 production hours. It is equipped with a Krauss Maffei MC5 control unit. The machine has a clamping force of 11000 kN, is in good condition and well maintained.

Overview

brand: Krauss Maffei
year: 2008
MODEL: 1100-12000 MX
production hours: 95845
application type: Injection Moulding
Location: Poland
machine type: Hydraulic Injection Moulding Machine
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 1100-12000 MX

General Data

Measurements width: 12470 mm
Measurements depth: 3650 mm
Measurements height: 2820 mm
Machine weight: 73000 kg

Control Unit

Model: MC5
Brand: KRAUSS MAFFEI

Injection Unit

Screw diameter: 120 mm
Shot weight: 6175 g
Stroke volume: 6786 CM³
Injection pressure: 1758 bar

Clamping unit

Clamping force: 11000 kN
Opening stroke: 2000 mm
Distance between bars: 1550 / 1250mm
Mould height min: 600 mm
Mould height max: 1200 mm
Ejector stroke: 0 – 300 mm

Additional Information

Machine Benefits

Qualitative Machine Benefits

The machine is in very good condition, full documentation, and service history available, ready for tests.

Technical Machine Benefits

Clearance between the tables 2600 mm, capacity injection: 6786 cm3
Hydro ejector: yes, halfway: yes, clamping: yes, mold open: yes
Table whole tread: m24, quantity core pulling: 2 pcs
Quantity of hydraulic oil: 2440 liters
Motor: 132 / 147 kw, heating power: 85 kw
Safeguard the door: pneumatic, air valves: 5 valves
Valve terminal: 4 nozzles

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
