KNUTH LL 1500 CNC

KNUTH - LL 1500 CNCDE-MIL-KNU-2011-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

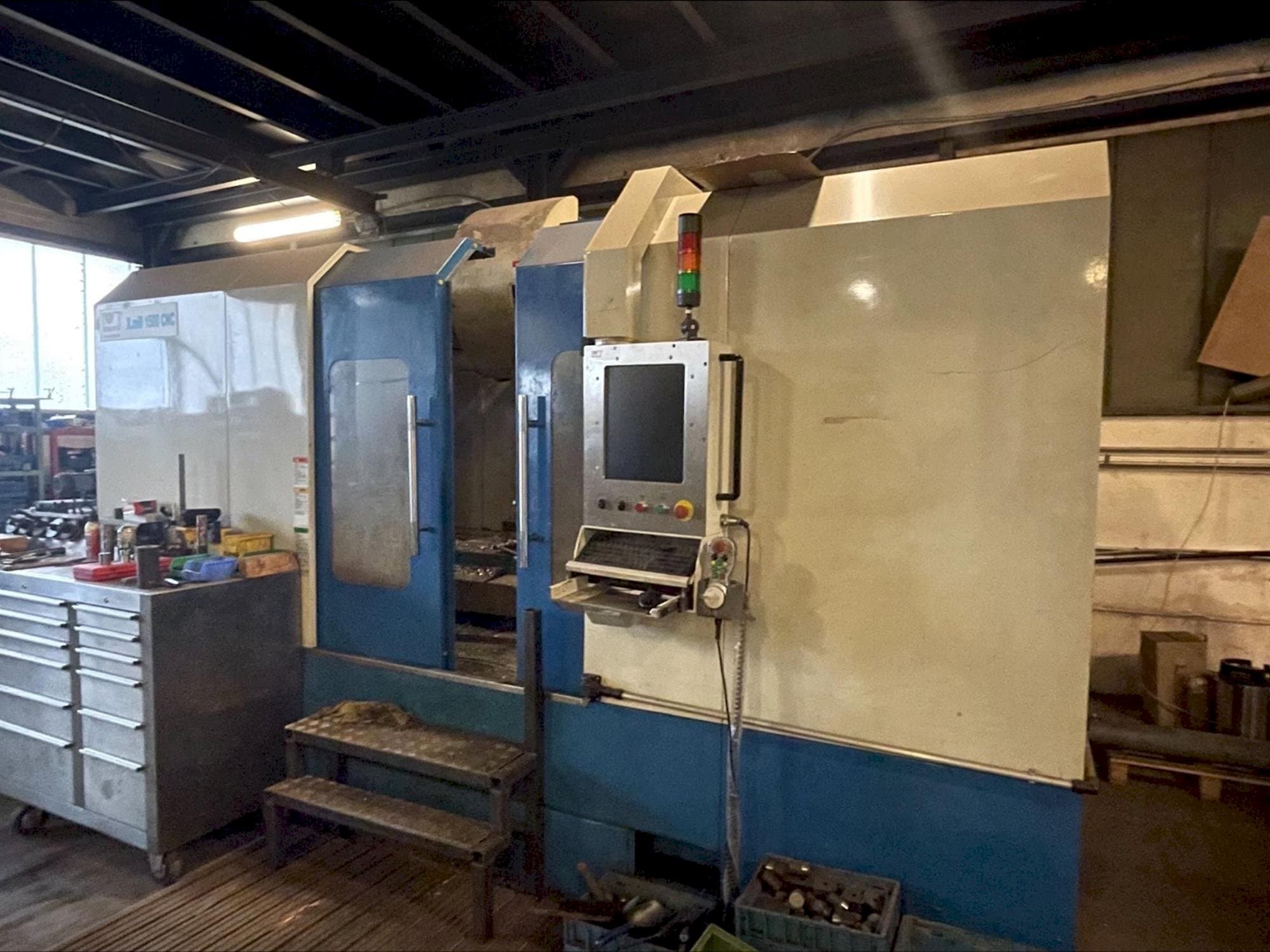

Knuth LL 1500 CNC Vertical machining center

Show in original language

This Knuth LL 1500 CNC Vertical machining center was made in 2011 in Germany. It is equipped with a X Mill 1500 control unit. The machine has a spindle speed of 60-8000 rpm.

Overview

brand: KNUTH
year: 2011
MODEL: LL 1500 CNC
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold

Technical Information - KNUTH LL 1500 CNC

General Data

Measurements width: 4270 mm
Measurements depth: 3413 mm
Measurements height: 3067 mm
Machine weight: 1400 kg

Control Unit

Model: 1500

Main drive

Spindle speed range: 60-8000 1/MIN

Movement

X-AXIS Movement: 1500 mm
Y-AXIS Movement: 800 mm
Z-AXIS Movement: 700 mm

Table

Outer length: 1700 mm
Outer width: 800 mm
Table load: 1500 kg

Tools

Slots in storage: 5 pieces

Additional Information

Machine Benefits

Technical Machine Benefits:
- - T-slots, width: 22 mm
- - T-slots, distance: 135 mm
- - Distance spindle nose: 170 - 870 mm
- - Table surface overhang: 800 mm
- - Spindle mounting: bt 50
- - Feed rate: 15000 mm/min
- - Rapid traverse x-axis: 15000 mm/min
- - Rapid traverse y-axis: 10000 mm/min
- - Rapid traverse z-axis work feed rate tool carrier: 5 - 5000 mm/min
- - Number of tool places : 24 pieces
Qualitative Machine Benefits:
- - Accuracies positioning accuracies: ± 0,01 mm / ±
- - Repeatability: 0,00039"
- - Motor power main drive (cont. /30 min): 15/18. 5 kw / 15/25 hp

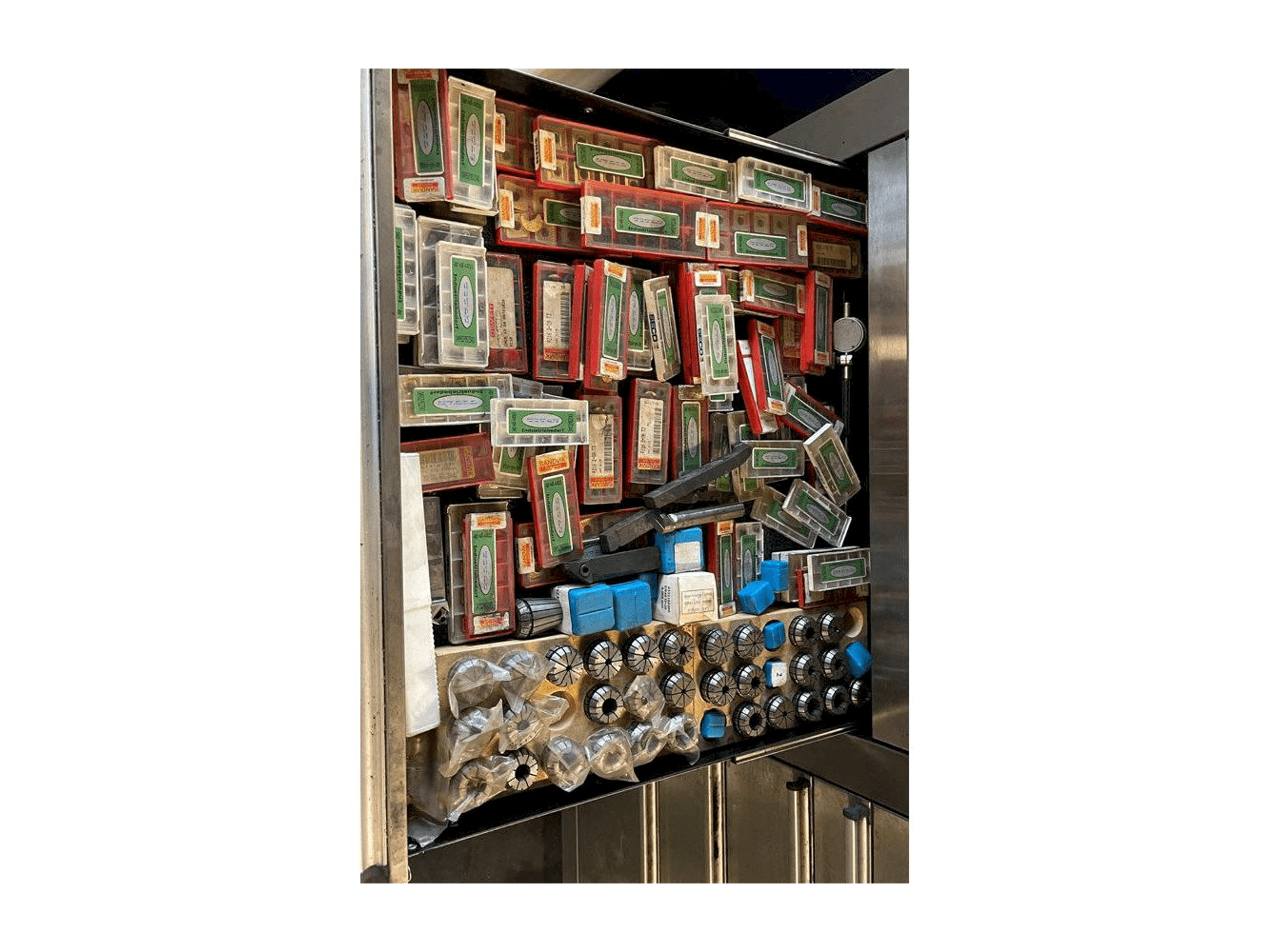

- - Optional many tools and equipment for sale

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
