KNUTH KB 1400

Photo Gallery

KNUTH - KB 1400CZ-MIL-KNU-2011-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
KNUTH KB 1400 Milling

Show in original language

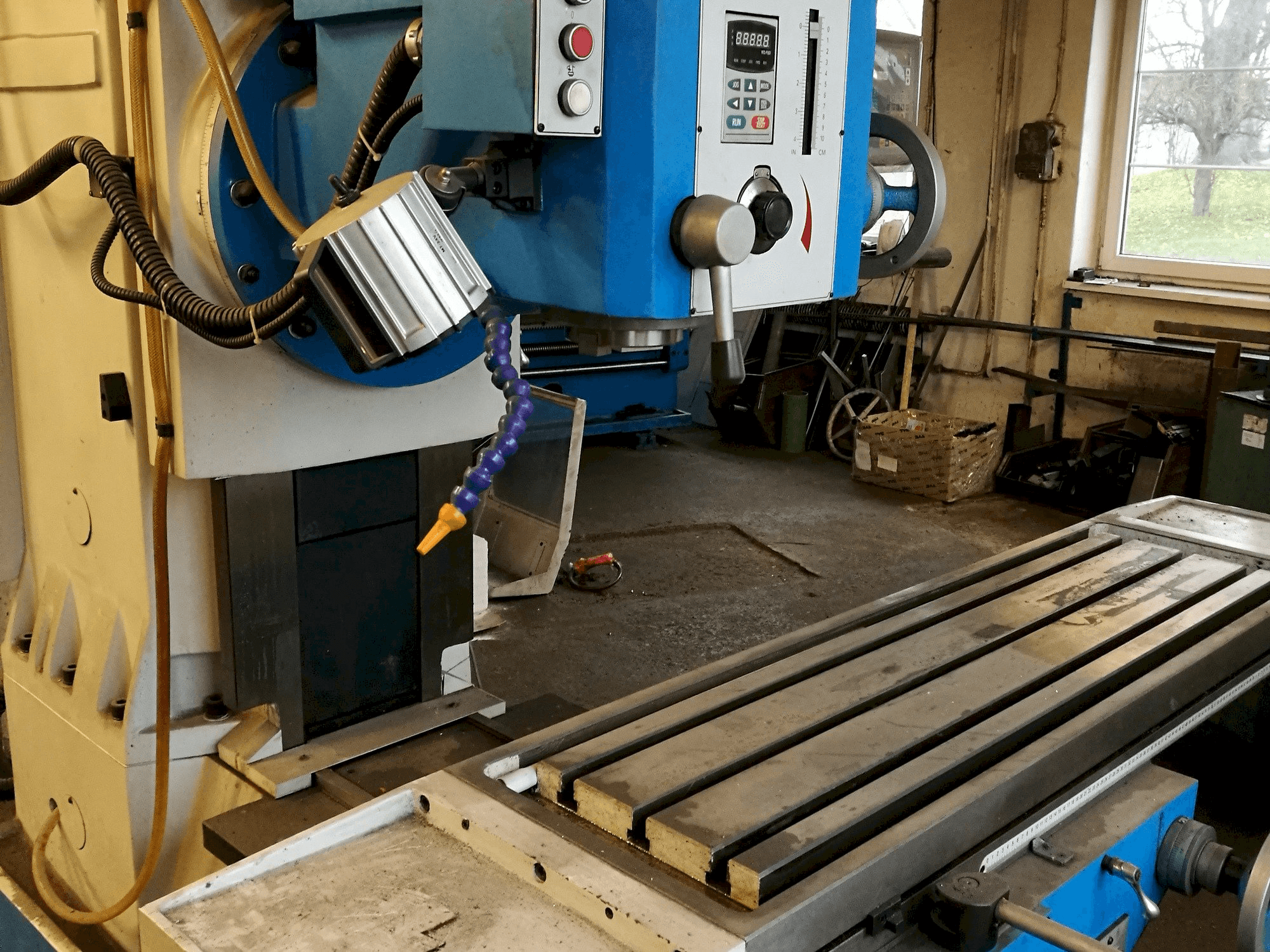

This KNUTH KB 1400 Milling Machine was manufactured in 2011 in Germany. This 3 axis machine works with a speed range of 1800 rpm. It includes tool holders and it is in very good condition, just like new.

Overview

brand: KNUTH
year: 2011
MODEL: KB 1400
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre

Technical Information - KNUTH KB 1400

General Data

Measurements width: 2290 mm
Measurements depth: 1770 mm
Measurements height: 2120 mm
Machine weight: 3660 kg

Main drive

Number of spindles: 1
Spindle speed range: 1800 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 950 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 500 mm

Table

Outer length: 1400 mm
Outer width: 400 mm

Tools

Type of tool holder: ISO 50

Additional Information

Additional equipment

Tool holders

Machine Benefits

Technical Machine Benefits

Spindle axis-to-table surface distance 150 - 650 mm
Head swivel range ± 45°
Rapid feeds 1. 670 mm/min
Motor rating main drive 7,5 kw

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
