➤ Used KERN Status For Sale | gindumac.com

Show in original language

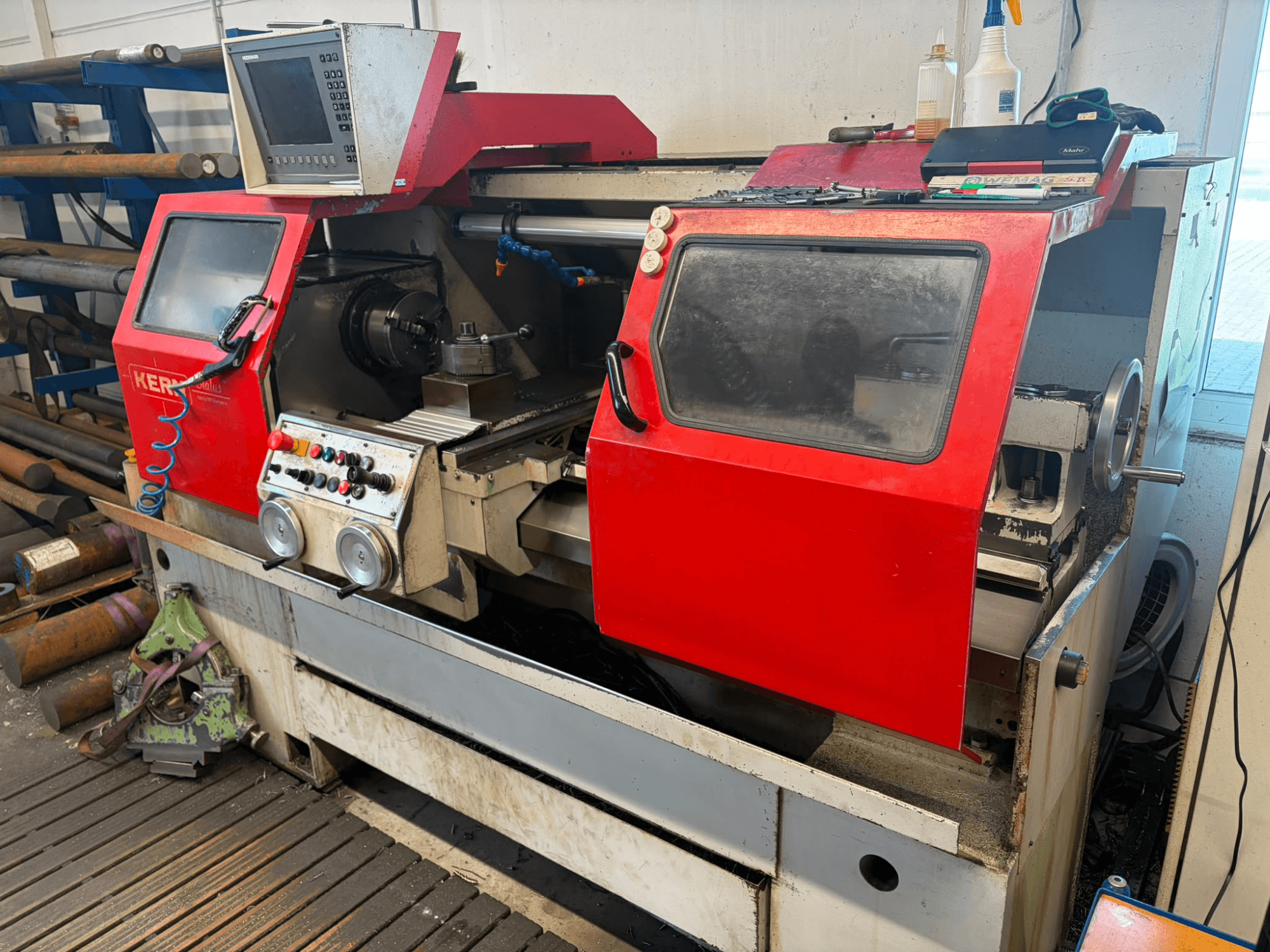

Horizontal turning machine manufactured in 2000. This KERN Status features a maximum turning length of 1,000 mm and a turning diameter over bed of 400 mm. It includes a spindle diameter in the front bearing of 90 mm and a speed range of 0 - 3000 rpm. If you are looking to get high-quality turning capabilities, consider the KERN Status machine we have for sale. Contact us for further details regarding this machine.

Overview

brand: KERN
year: 2000
MODEL: Status
production hours: 50796
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: HEIDENHAIN

Technical Information - KERN Status

Control Unit

Control Brand: HEIDENHAIN
Control Model: MANUAL PLUS M

Movement

Number of Axes: 2
X-axis Travel: 220 mm
Z-axis Travel: 840 mm

Technical Specification

Counter Spindle: No
Driven Tools: No
Spindle Speed: 3000 RPM

Additional Information

- Working Hours: 50,796 h

- Turning Diameter over Bed: 400 mm

- Turning Diameter in Gap: 460 mm

- Turning Diameter over Slide: 230 mm

- Max. Turning Length: 1000 mm

- Spindle Diameter in Front Bearing: 90 mm

- Spindle Bore: 50 mm

- Speed Range: 0 - 3000 rpm

- Gear Stages: 3

- Feed Rates (Longitudinal & Facing): 0.001 - 1000 mm/rev

- Thread Pitches: 0.001 - 2000 mm/rev

- Tailstock Sleeve Diameter: 60 mm

- Tailstock Sleeve Stroke: 120 mm

- Tailstock Inner Taper: MT4

- Tool Holder System: Multifix

- Voltage: 380 V

- Frequency: 50 Hz

- Nominal Current: 30 A

- Control Voltage: 24 V

- Included Accessories: Röhm 3-jaw chuck (Ø200), Röhm 3-jaw chuck (Ø300), steady rest

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
