➤ Used KELLENBERGER R125 x 600 For Sale | gindumac.com

Show in original language

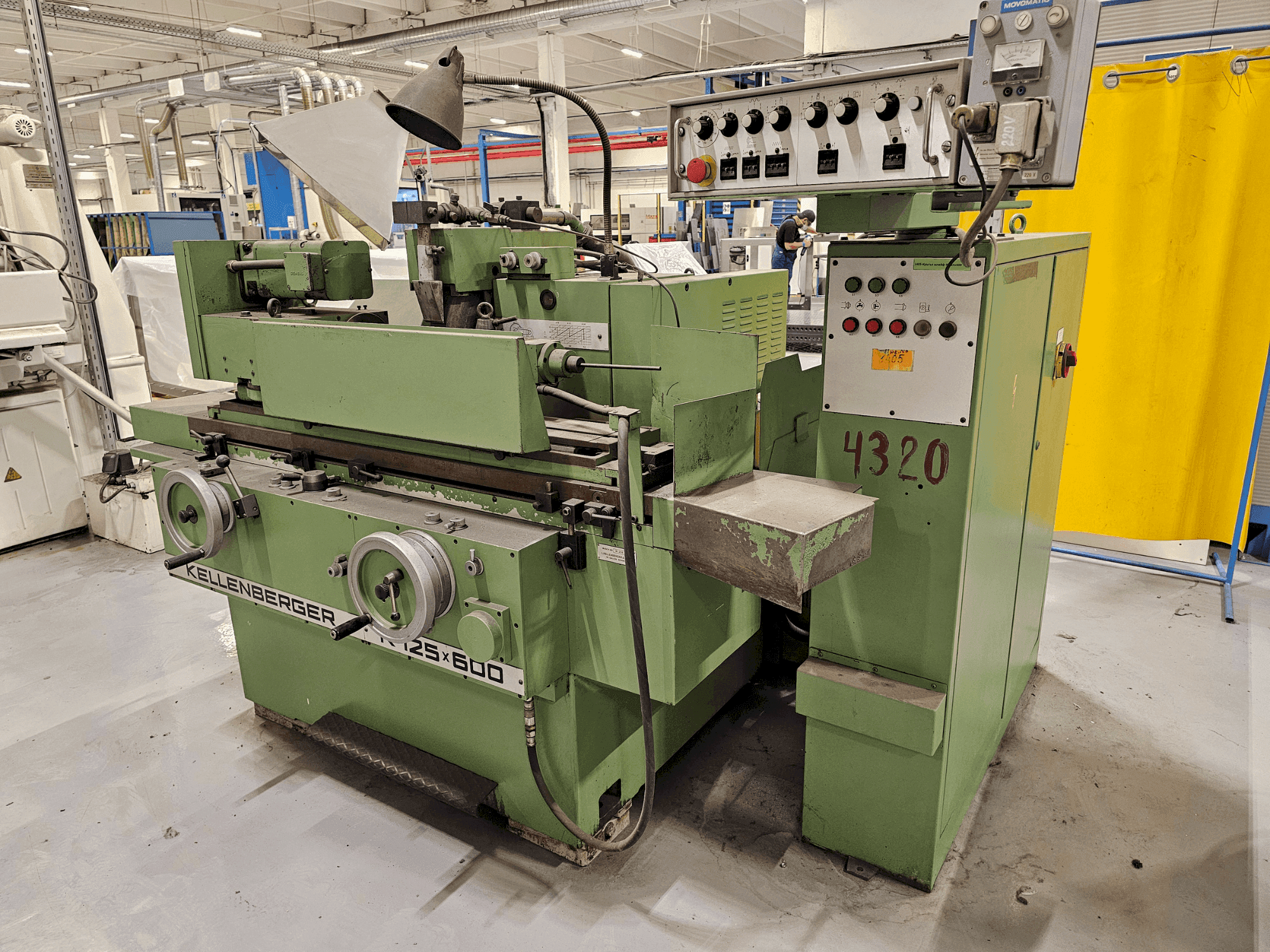

This Kellenberger R125 x 600 cylindrical grinding machine was manufactured in 1984. It features a grinding diameter of 250 mm, a length of 600 mm, and a centre height of 125 mm. The machine can handle a maximum workpiece weight of 130 kg and includes a tailstock with a quill travel of 30 mm. For more information about this machine, please reach out to us.

Overview

brand: KELLENBERGER
year: 1984
MODEL: R125 x 600
application type: Grinding
Location: Bulgaria
machine type: Cylindrical Grinding Machine

Technical Information - KELLENBERGER R125 x 600

General Data

Machine weight: 2700 KG

Workpiece

Workpiece weight: 130 kg

Additional Information

Machine Benefits

Qualitative Machine Benefits

Table speeds: 0. 02-6 m/min
Tailstock quill taper: mt 3
Quill travel: 30 mm
Cross travel: 270 mm
Total power requirement: 5. 5-7. 5 kw
Grinding head swiveling: +/- 0 °

Technical Machine Benefits

Grinding diameter: 250 mm
Grinding length: 600 mm
Centre height: 125 mm
Grinding wheel diameter: 500 mm
Grinding wheel width: 80 (100) mm
Bore: 203. 2 mm
Workpiece spindle speed: 20-400 u/min
Workpiece spindle swiveling: +/- 360 °
Table swiveling: +/- 10 °
Longitudinal feed: 700 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
