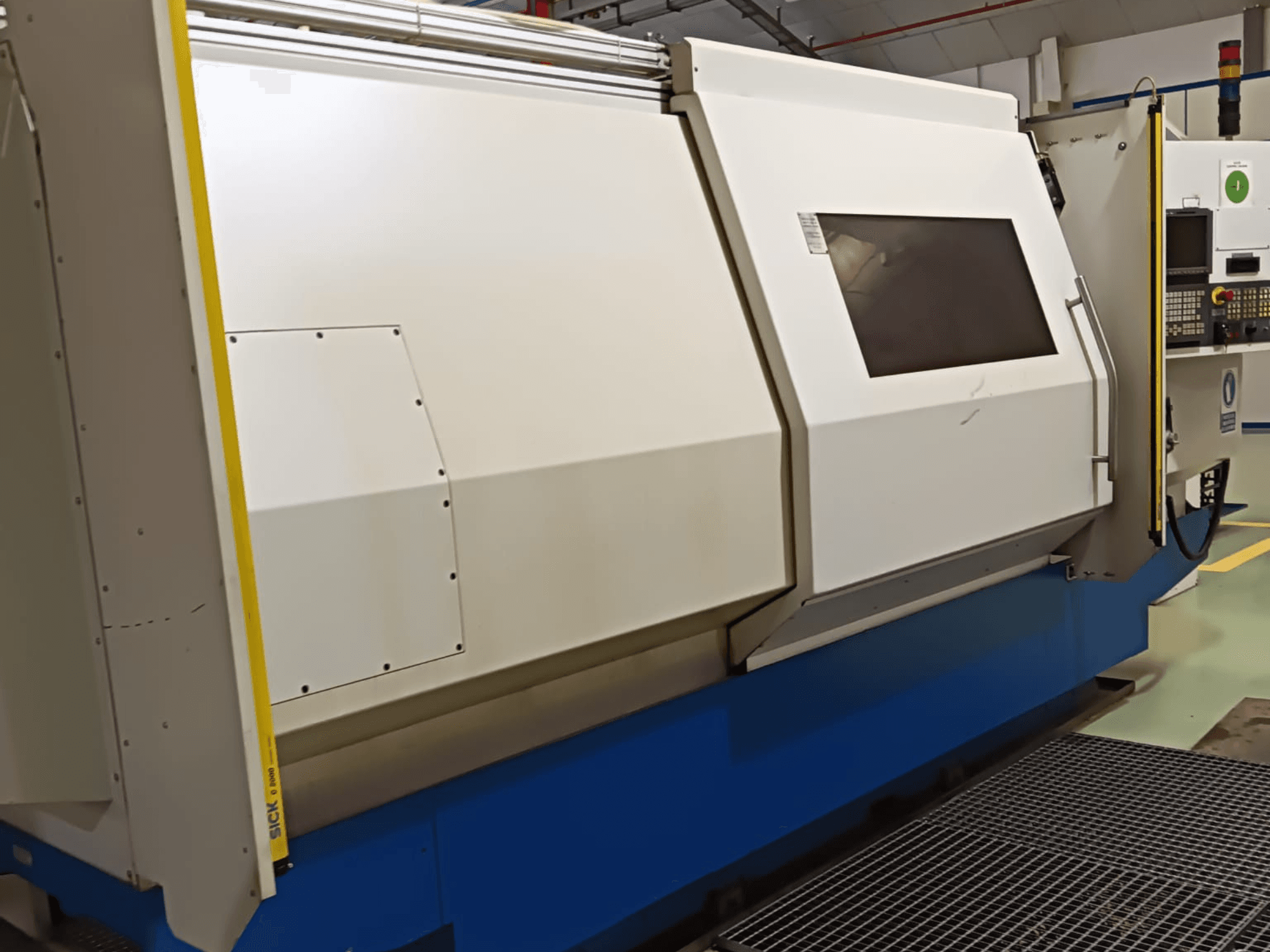

Industrial lathe machine, side view, featuring a large white and blue casing, digital control panel, and safety features.
Industrial lathe machine, side view, featuring a large white and blue casing, digital control panel, and safety features.

JUNKER - jucam 5002/51ES-GRI-JUN-2002-00002

Rs. 10,279,263
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This JUNKER jucam 5002/51 cylindrical grinding machine was manufactured in 2002. It features a FANUC control system, MARPOSS verification, and a robust 24 kW main drive motor. Capable of grinding lengths up to 1000 mm and diameters up to 280 mm, it supports workpieces from 20 to 80 mm. Weighing 11,000 kg, it ensures stability and precision. Contact us for more information about this machine.

Overview

  • brand: JUNKER
  • year: 2002
  • MODEL: jucam 5002/51
  • application type: Grinding
  • Location: Spain
  • machine type: Cylindrical Grinding Machine
  • control unit brand: FANUC

Technical Information - JUNKER jucam 5002/51

Control Unit

  • Control Brand: FANUC

Dimensions

  • Machine Weight: 11000 kg

Movement

  • Number of Axes: 2

Technical Specification

  • Spindle Power: 24 kW

Additional Information

  • Grinding length between centers: 1000 mm

  • Max grinding diameter: 280 mm

  • Workpiece diameter range: 20–80 mm

  • Turning diameter at wheel height: 70 mm

  • Workpiece spindle: 100 × 400 mm

  • Movable headstock: chain-adjusted

  • Workpiece clamping pressure: hydraulic

  • Axes: Z-axis CNC-controlled; wheel spindle head X-axis CNC-controlled

  • Wheel spindle: 180 × 400 mm

  • Wheel dimensions: 400 × 127 mm

  • Peripheral speed: 90 m/s

  • Standard collar (wheel bore) diameter: 127 mm

  • Balancing: electronic

Additional equipment

  • Verification system: MARPOSS (in-process gauging)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
