Johnford DMC-1600

Photo Gallery

Johnford - DMC-1600FR-MIL-JOH-2008-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Johnford DMC-1600 For Sale | gindumac.com

Show in original language

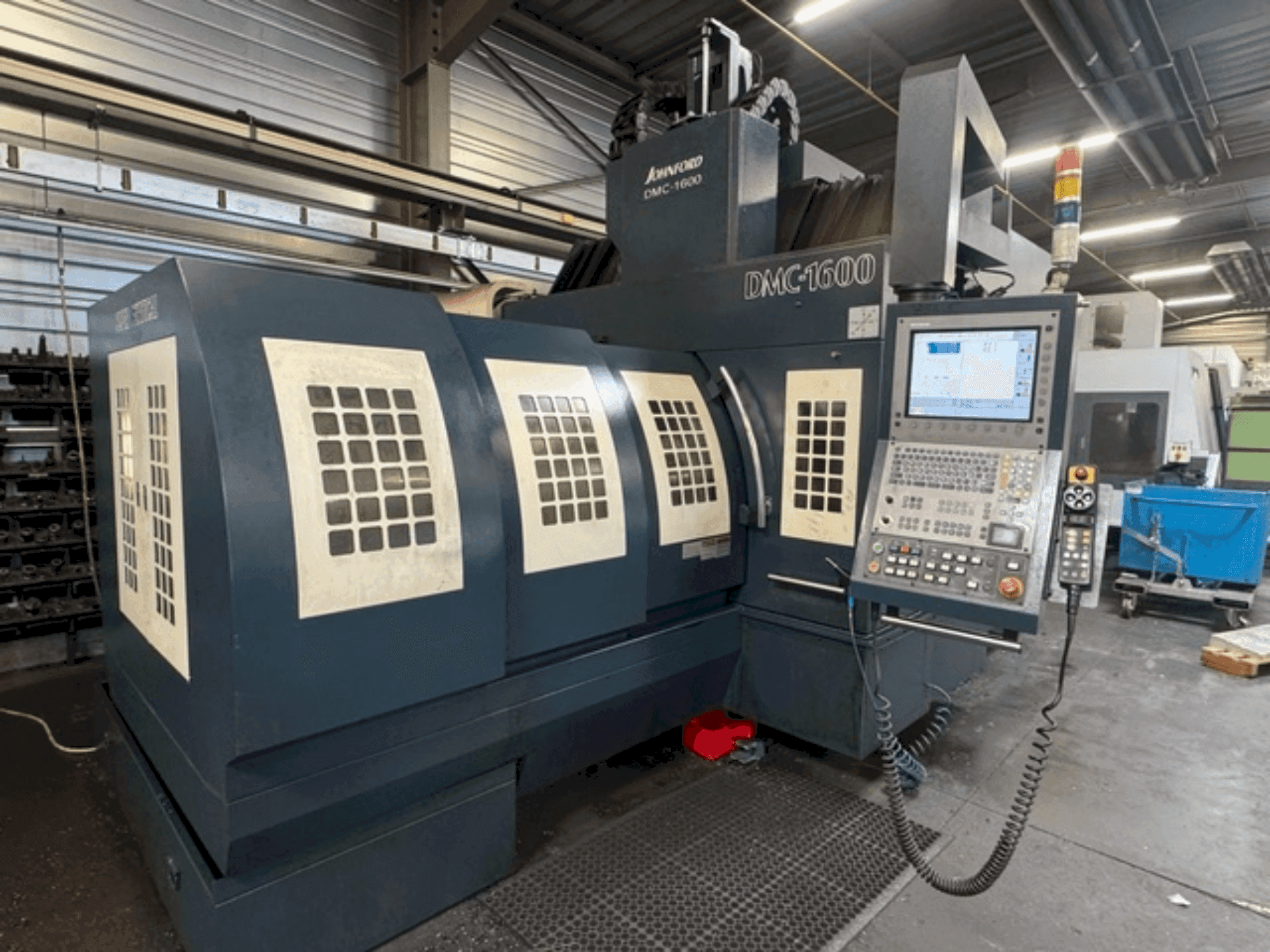

This 3-axis Johnford DMC-1600 was manufactured in 2008. It features a robust table surface of 1700x1100 mm, capable of handling loads up to 6000 kg. With travels of X1600 mm, Y1100 mm, and Z800 mm, it offers extensive machining capabilities. The spindle operates at 8000 rpm with a BT40 taper, supported by a 24-station tool magazine. Additional features include a chip conveyor, coolant system, and a comprehensive set of tools. Contact us for more information about this machine.

Overview

brand: Johnford
year: 2008
MODEL: DMC-1600
application type: Milling
Location: France
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - Johnford DMC-1600

Control Unit

Control Brand: HEIDENHAIN
Control Model: iTNC 530

Dimensions

Machine Depth: 6465 mm
Machine Height: 3600 mm
Machine Weight: 20000 kg
Table Load: 6000 kg

Movement

Number of Axes: 3
X-axis Travel: 1600 mm
Y-axis Travel: 1100 mm
Z-axis Travel: 800 mm

Technical Specification

Spindle Power: 15 kW
Spindle Speed: 8000 RPM

Additional Information

Additional equipment

Electronic Handwheel
USB-RS232 Ports
Air-Conditioned Cabinet
Coolant Through Spindle
3-Color Status Light
Chip Conveyor + Bucket
Full Documentation
Angle Heads
Large Set of Approx. 60 Tool Holders and Cutting Tools

Machine Benefits

Technical Machine Benefits

Spindle/table surface distance: 150-950 mm
Rapid feed speed: 15000/12000 mm/min
Table surface: 1700x1100 mm
Tool magazine: random-arm tool magazine with 24 stations

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
