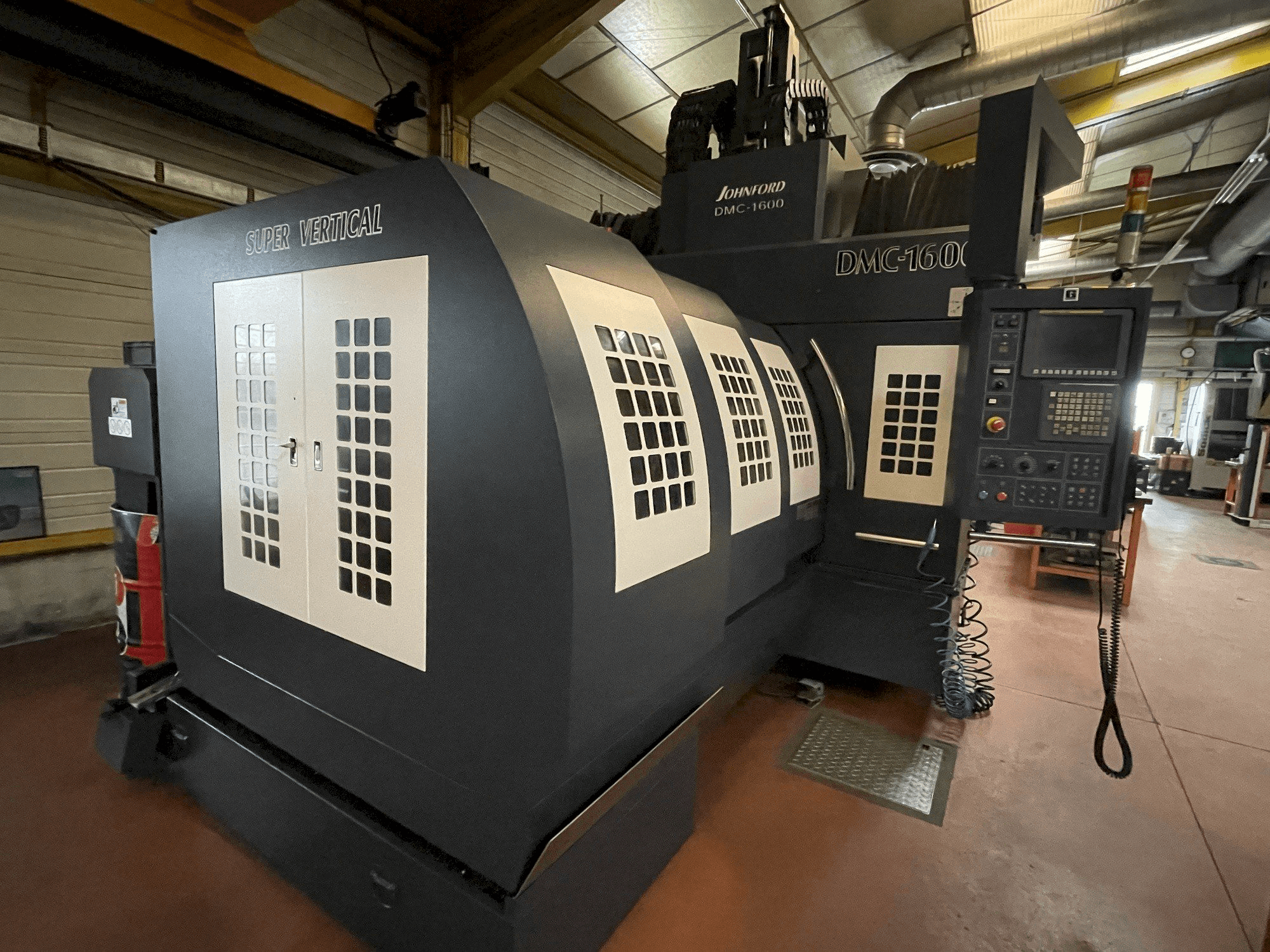

JOHN FORD DMC 1600 Vertical Machining center

Show in original language

This JOHN FORD DMC 1600 Vertical Machining center was manufactured in the year 2007 in Taiwan. It is equipped with a Fanuc Series Oi-MC control unit. The machine has a spindle speed of 8000 rpm.

Overview

brand: Johnford
year: 2007
MODEL: DMC 1600
application type: Milling
Location: France
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - Johnford DMC 1600

General Data

Measurements width: 5500 mm
Measurements depth: 3300 mm
Measurements height: 3800 mm
Machine weight: 20400 kg

Control Unit

Model: Series Oi- MC
Brand: FANUC

Main drive

Spindle speed range: 8000 1/MIN
Spindle motor power: 11kW
Tool taper: ISO 40

Movement

X-AXIS Movement: 1600 mm
Y-AXIS Movement: 1300 mm
Z-AXIS Movement: 800 mm

Table

Outer length: 1700 mm
Outer width: 1100 mm
Table load: 6000 kg

Additional Information

Machine Benefits

Technical Machine Benefits

Passage from spindle nose to table: 150/950 mm
Work advance: 8000mm/min
Fast forwards:. 24/24/12 m/min
Tool changer:. 40 slots
Electronic handwheel
Chip conveyor 2+1
Spindle cooler
2-range gearbox
Part probe
Tool feeler, tools, tool center coolant

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
