➤ Used IMA BIMA CUT 145/330 - For Sale | gindumac.com

Show in original language

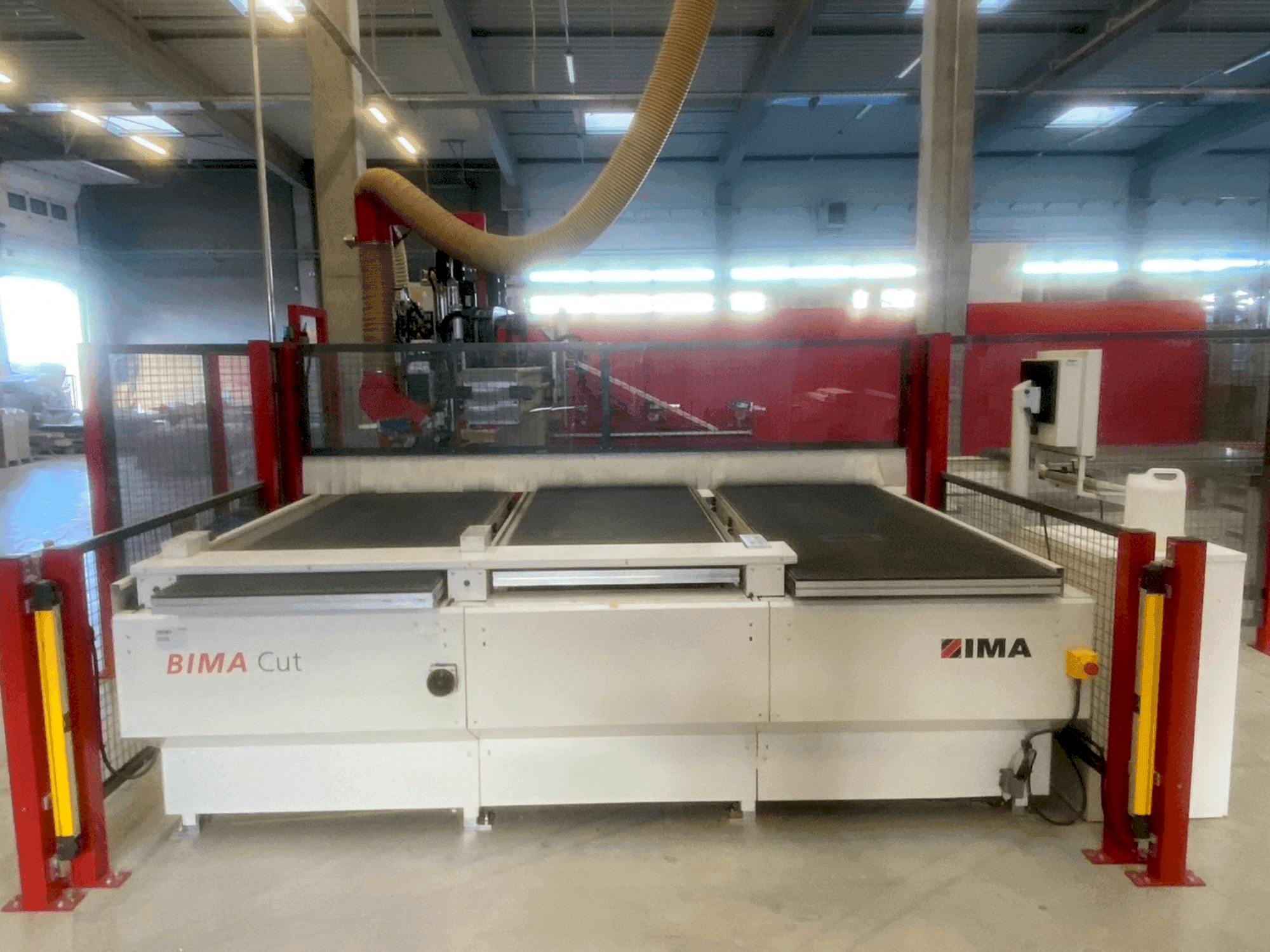

This 3-axis IMA BIMA CUT 145/330 CNC Wood Machining Centre was manufactured in 2014. It features a working range of 3300 mm in the X axis and 1450 mm in the Y axis, with a spindle power of 18 kW. The machine includes a tool magazine with up to 18 positions and a vacuum clamping system for secure workpiece fixation. If you are looking to get high-quality milling capabilities, consider the IMA BIMA CUT 145/330 machine we have for sale. Contact us for more information.

Overview

brand: IMA
year: 2014
MODEL: BIMA CUT 145/330
application type: CNC Wood Machining
Location: Poland
machine type: CNC Wood Machining Centre

Technical Information - IMA BIMA CUT 145/330

Movement

Number of Axes: 3

Additional Information

Machine Benefits

Technical Machine Benefits

Working range in x axis: 3300 mm
Working range in y axis: 1450 mm
Vacuum clamping system for workpiece fixation
Tool magazine with automatic tool change up to 18 positions
Drilling capability: 5 sides – top, X+, X–, Y+, Y–
Saw unit: for cutting and grooving in X and Y axes

Extra Information

Saw blade overhang: 145 mm Saw cutting length: around 330 mm

HBO horizontal milling unit: for X+, X–, Y+, Y– directions (not confirmed if still installed)

Automatic positioning beams and suction cups for workpiece clamping

Automatic loading table

Conveyor outfeed table

Vacuum traverse system for transferring parts onto the conveyor outfeed table

Panel nesting function: allows cutting from large boards with simultaneous machining operations

Each part is cut from the panel, then milling, drilling, and grooving are completed automatically before transfer to the outfeed table

Automatic lubrication system

Waste conveyor belt for chip and scrap removal

Disc-type tool magazine

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
