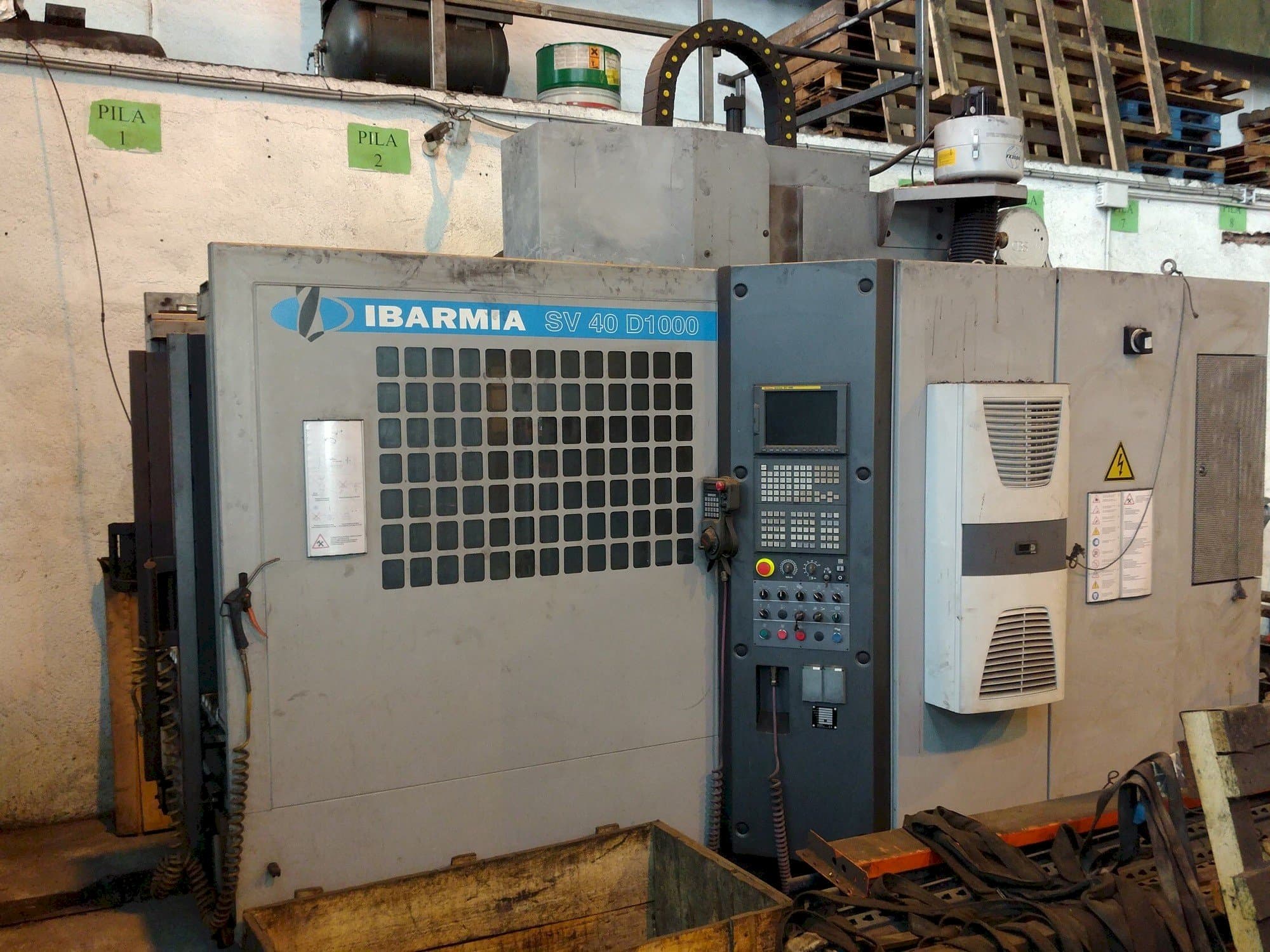

Front view of IBARMIA SV40/D1000 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

IBARMIA SV40/D1000

Photo Gallery

IBARMIA - SV40/D1000ES-MIL-IBA-2009-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
IBARMIA SV40/D1000 Vertical Machining Center

Show in original language

This IBARMIA SV40/D1000 Vertical Machining Center was manufactured in the year 2009 in Spain. It has been working for only 5 hours. It is equipped with a Fanuc Series 21i-MB control unit. This machine can work with a spindle speed range up to 8000 rpm. It is like new.

Overview

brand: IBARMIA
year: 2009
MODEL: SV40/D1000
production hours: 5
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - IBARMIA SV40/D1000

General Data

Measurements width: 3470 mm
Measurements depth: 3660 mm
Measurements height: 3360 mm
Machine weight: 9800 kg

Control Unit

Model: Series 21i-MB
CNC main language: Spanish
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 8000 1/MIN

Tools

Max tool diameter: 1000 mm
Type of tool holder: ISO 40

Media

Main electronic connection: 400 V 50 Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Main spindle: vertical head
- - 22kw fanuc engine
- - Dividing plate diameter: 800 mm
Qualitative Machine Benefits:
- - Like new

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
