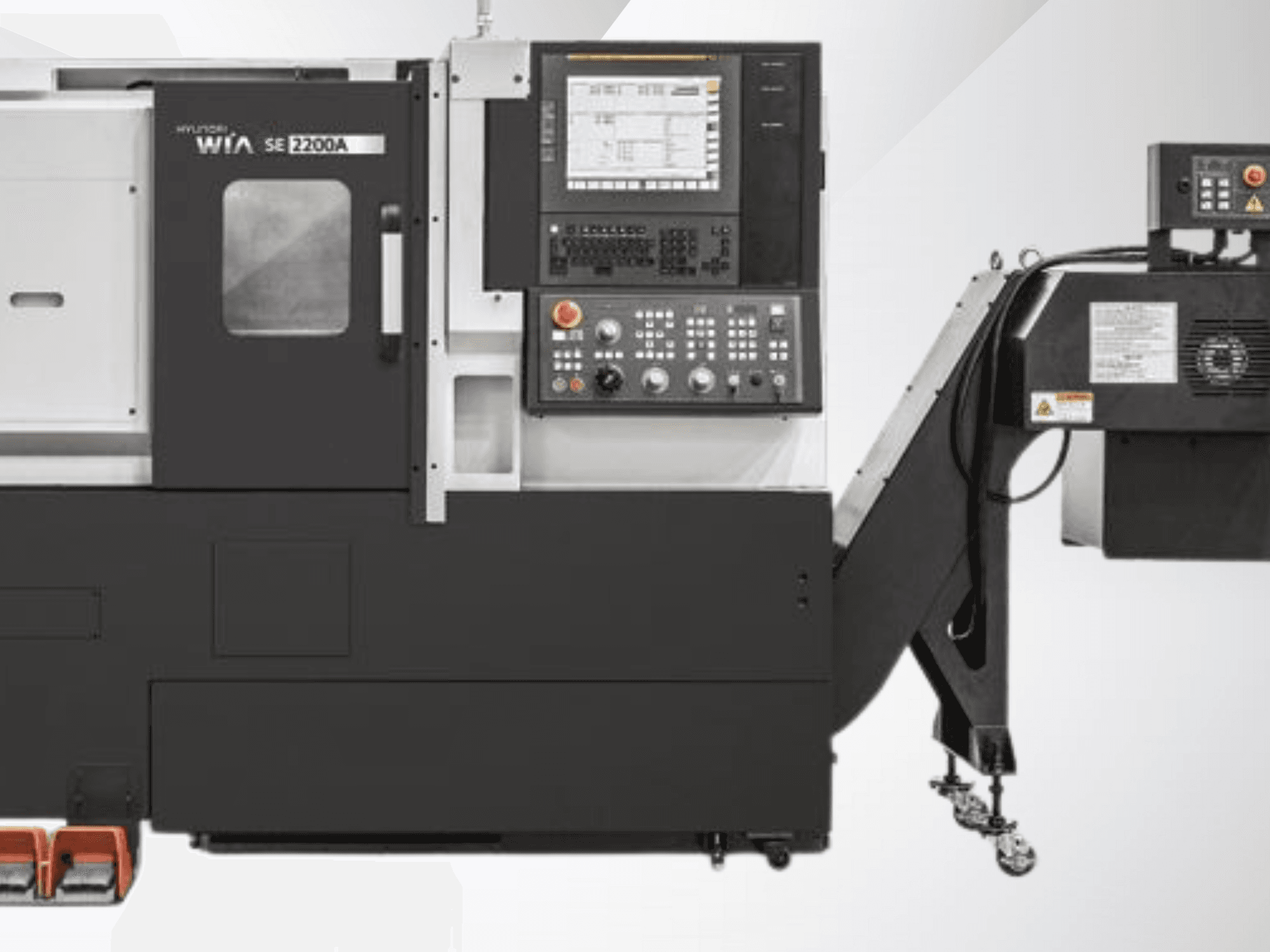

Hyundai WIA SE 2200A CNC lathe, front view, features control panel and spindle motor, designed for precision machining.
Hyundai WIA SE 2200A CNC lathe, front view, features control panel and spindle motor, designed for precision machining.

Hyundai - WIA SE 2200 LMDE-TUR-HYU-2025-00003

Rs. 11,392,177
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Hyundai WIA SE 2200 LM was manufactured in 2025. It features a maximum turning diameter of Ø300 mm and a length of 529 mm, with a spindle speed of up to 6,000 rpm. The machine includes a 12-tool turret and supports milling with a tool speed also up to 6,000 rpm. Ideal for precision turning and milling tasks. Contact us for more information about this machine.

Overview

  • brand: Hyundai
  • year: 2025
  • MODEL: WIA SE 2200 LM
  • production hours: 0
  • application type: Turning
  • Location: Germany
  • machine type: Horizontal Turning Machine
  • control unit brand: FANUC

Technical Information - Hyundai WIA SE 2200 LM

Control Unit

  • Control Brand: FANUC
  • Control Model: i – SMART PLUS

Dimensions

  • Machine Height: 1700 mm
  • Machine Length: 2970 mm
  • Machine Weight: 3550 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 210 mm
  • Z-axis Travel: 560 mm

Technical Specification

  • Spindle Speed: 6000 RPM

Additional Information

  • Condition: Original packaging, 0 operating hours

  • Capacity

    • Max. swing: Ø600 mm

    • Swing over the carriage: Ø390 mm

    • Max. turning diameter: Ø300 mm

    • Max. turning length: 529 mm

    • Bar capacity (main): Ø32 mm

    • Chuck size (main): 5

  • Spindle (Main)

    • Spindle bore: Ø42 mm

    • Motor (max/cont.): 7.5/3.7 kW (10/5 HP)

    • Torque (max/cont.): 63.6/23.6 Nm (46.9/17.4 lbf·ft)

    • Spindle nose: A2-5

    • Spindle type: Flat type

    • C-axis indexing: 0.001°

  • Feed

    • Rapid traverse rate (X/Z): 15 m/min

    • Slide type: Roller LM guide

  • Turret

    • Number of tools: 12 (24)

    • Tool size (OD/ID): Ø20/Ø32 mm

    • Indexing time: 0.15 sec

  • Live tool

    • Milling tool speed: 6,000 rpm

    • Motor (max/cont.): 3.9/2.6 kW (5/3.5 HP)

    • Torque (max/cont.): 36.7/18.5 Nm (27.1/13.6 lbf·ft)

    • Collet size: ER20 (Ø13 (0.5"))

    • Type: BMT45

  • Tailstock

    • Taper: MT#4

    • Quill diameter: Ø55 mm

    • Travel: 580 mm

  • Tank capacity

    • Coolant tank: 200 l

    • Lubricating tank: 0.7 l

  • Power supply

    • Electric power: 23 kVA

    • Power cable thickness: Over 16 mm²

    • Voltage/frequency: 220 V, 50/60 Hz

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
