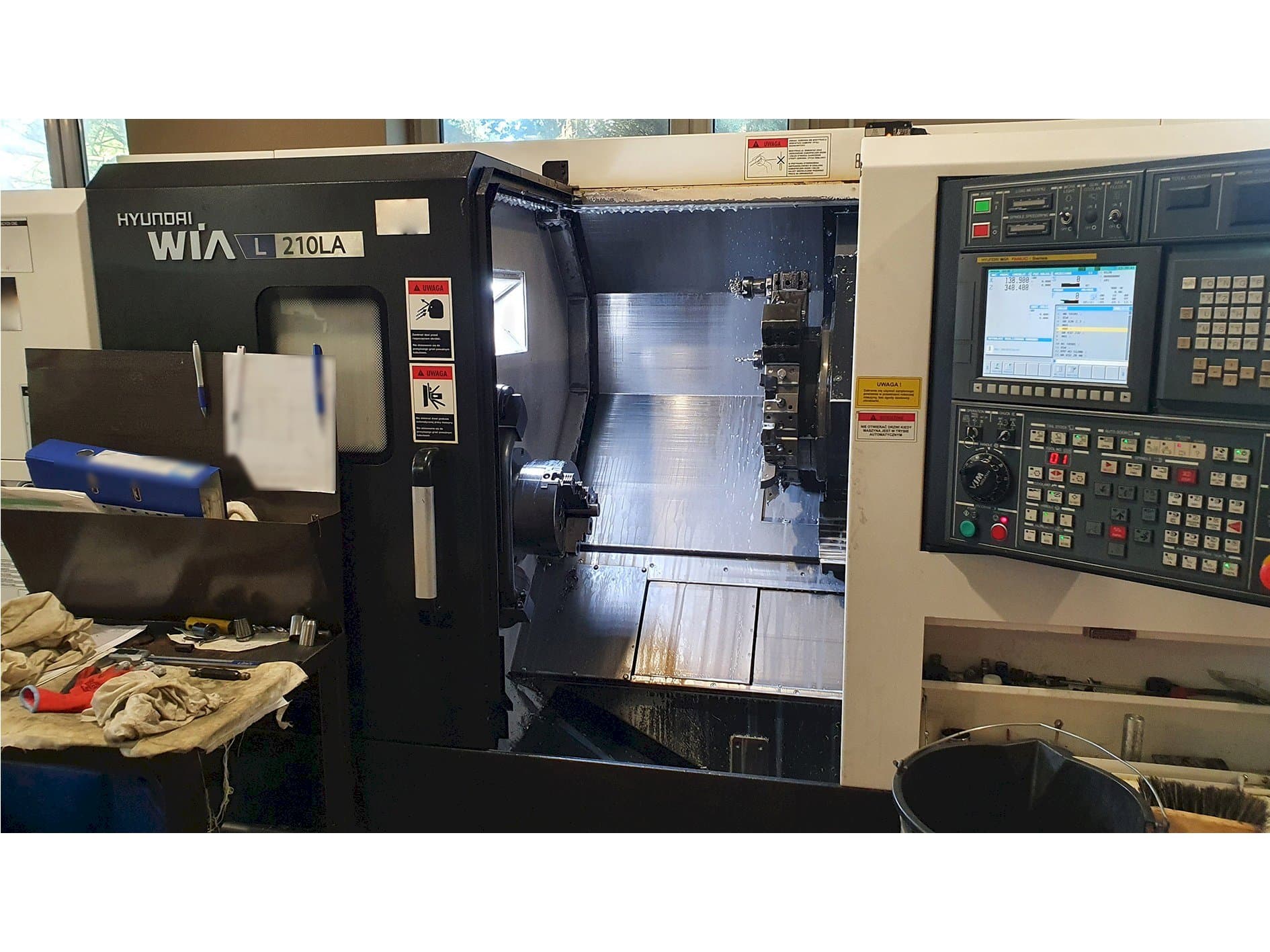

Front view of Hyundai Wia L210LA machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Hyundai Wia L210LA

Photo Gallery

Hyundai Wia - L210LAPL-TUR-HYU-2016-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Hyundai Wia L210LA Lathe

Show in original language

This Hyundai Wia L210LA Lathe was made in Taiwan in 2016. It has been power on for 8700 hours, of which 3100 are working hours. It is operated through a FANUC WIA i-Series control unit. The machine works with a spindle speed up to 4000 rpm. It was first start up in the year 2017. It is in very good working condition, ready for tests.

Overview

brand: Hyundai Wia
year: 2016
MODEL: L210LA
production hours: 3100
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Hyundai Wia L210LA

General Data

Measurements width: 2900 mm
Measurements depth: 1650 mm
Measurements height: 1870 mm
Machine weight: 4300 KG

Control Unit

Model: WIA i-Series
Brand: FANUC

Main drive

Spindle speed range: 4000 1/MIN

Movement

X-AXIS Movement: 210 mm
Z-AXIS Movement: 550 mm

Turret

Number of tool slots: 12 pcs

Media

Main electronic connection: 380V / 50 Hz
Power consumption: 21 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over the bed: 550 mm
- - Swing over the carriage: 350 mm
- - Max. Turning dia. : 350 mm
- - Max. Turning length: 530 mm
- - Bar capacity dia. : 65 mm
- - Tail stock taper: mt4
Qualitative Machine Benefits:
- - The machine is in very good working condition, ready for tests
- - Full documentation available

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
