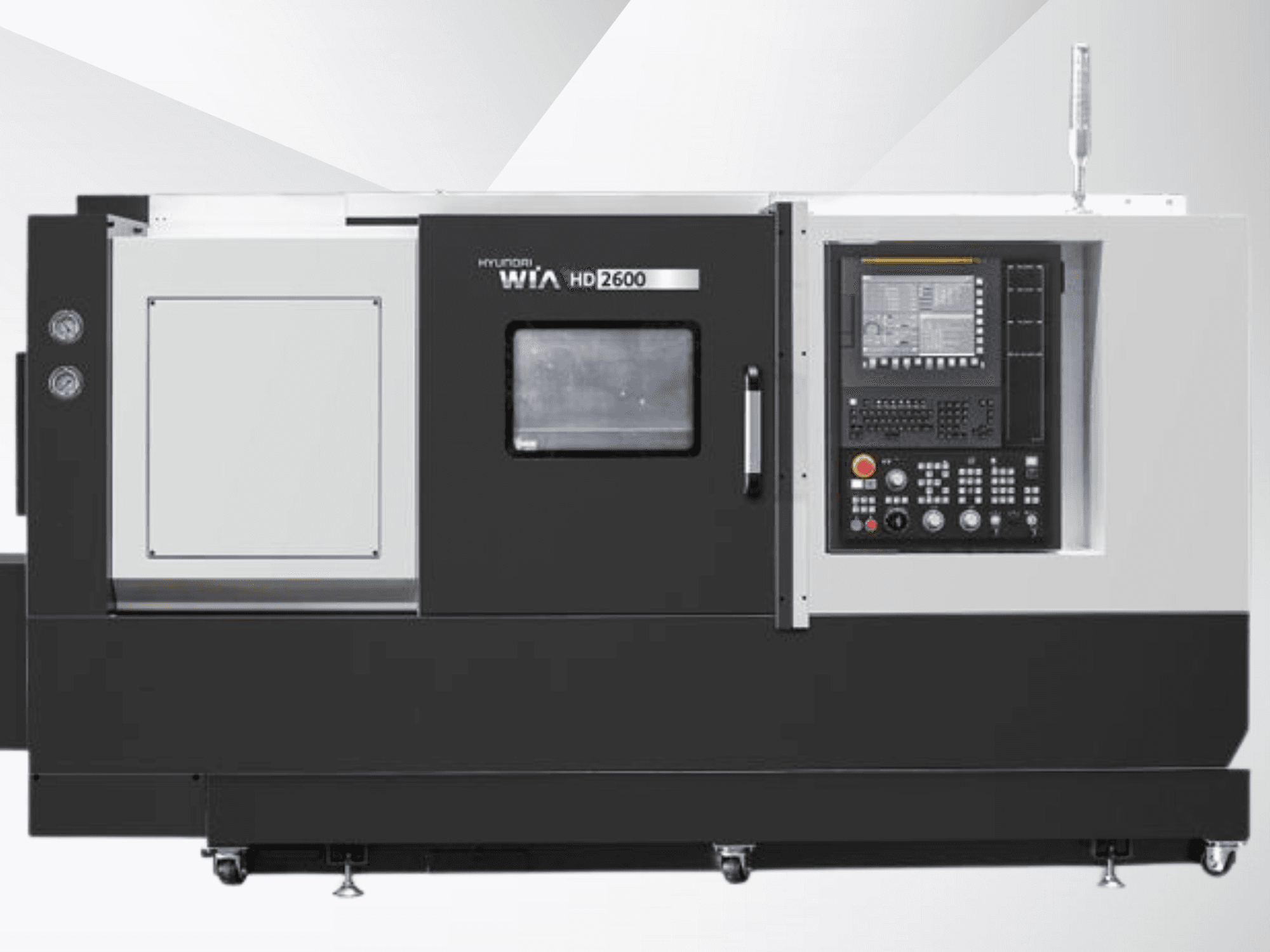

This Hyundai Wia HD 2600 horizontal turning machine was manufactured in 2025. It features a swing over the bed of 630 mm, a maximum turning diameter of 460 mm, and a bar capacity of 80 mm. The spindle supports a speed of 3,500 rpm with a motor power of 26/18.5 kW. It also includes a 10-tool turret and a rapid traverse rate of 24/30 m/min. If you are looking to get high-quality turning capabilities, consider the Hyundai Wia HD 2600 machine we have for sale. Contact us for more information.
Overview
- brand: Hyundai
- year: 2025
- MODEL: Wia HD 2600
- production hours: 0
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - Hyundai Wia HD 2600
Control Unit
- Control Brand: FANUC
- Control Model: Series
Dimensions
- Machine Height: 1755 mm
- Machine Length: 3400 mm
- Machine Weight: 5800 kg
Movement
- Number of Axes: 2
- X-axis Travel: 265 mm
- Z-axis Travel: 680 mm
Technical Specification
- Spindle Speed: 3500 RPM
Additional Information
Original packaging
Capacity
Swing over the bed: 630 mm
Swing over the carriage: 460 mm
Max. turning diameter: 460 mm
Max. turning length: 659 mm
Bar capacity: 80 mm
Chuck size: 10"
Spindle
Spindle bore: Ø91 mm
Motor (max/cont.): 26/18.5 kW (35/25 HP)
Torque (max/cont.): 734/522 Nm (541/385 lbf·ft)
Torque (additional value stated): (828/748 Nm)
Spindle type: Belt
Spindle nose: A2-8
C-axis indexing: 0.001°
Feed
Rapid traverse rate (X/Z): 24 / 30 m/min (945 / 1,181 ipm)
Slide type: Box guide
Turret / Tooling
No. of tools: 10 (12)
Tool size (OD): 25 mm
Tool size (ID): Ø50 mm
Indexing time: 0.15 sec
Tailstock
Type: MT#5 (Built-in tail stock - MT#4)
Quill diameter: Ø100 mm
Quill travel: 120 mm
Travel: 680 mm
Tank Capacity
Coolant tank: 180 L (47.6 gal)
Lubricating tank: 18 L (4.75 gal)
Power Supply
Electric power supply: 27 kVA
Thickness of power cable: Over 16 mm²
Voltage: 220/60 (200/50)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
