➤ Used HYUNDAI KIA Hyundai HiT V5R For Sale | gindumac.com

Show in original language

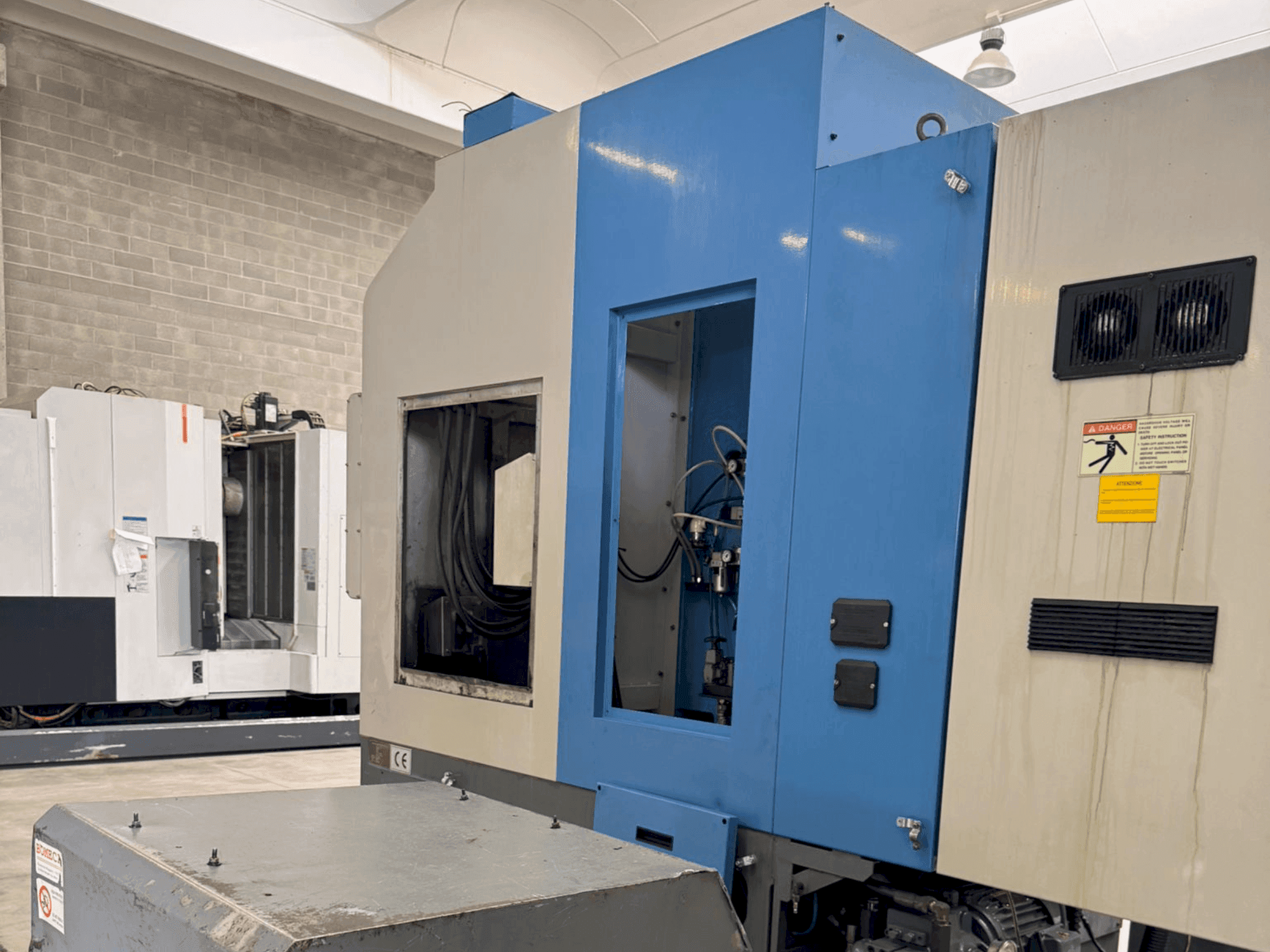

This Hyundai HiT V5R was manufactured in 1999. It features a swing of 800 mm, a maximum length capacity of 625 mm, and a chuck size of 381 mm. Equipped with a 16-station ATC, an 8-position turret, and a main motor of 30 HP, it supports up to 1,000 kg. Additional features include a Fanuc Series O-T CNC control and a turbo chip conveyor. Contact us for more information about this machine.

Overview

brand: HYUNDAI KIA
year: 1999
MODEL: Hyundai HiT V5R
application type: Turning
Location: Italy
machine type: Vertical Turning Machine
availability: Immediately
control unit brand: FANUC

Technical Information - HYUNDAI KIA Hyundai HiT V5R

General Data

Measurements width: 1880 mm
Measurements depth: 2540 mm
Measurements height: 2515 mm
Machine weight: 10000 kg

Control Unit

Brand: FANUC
Model: Series 0-T

Main drive

Number of axis: 2

Workpiece

Workpiece weight: 1000 kg

Tools

Number of stations: 16

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Main motor: 30 hp
- - Swing: 800 mm
- - Max. Length (shaft): 625 mm
- - Chuck size: 381 mm
- - Turret positions: 8
- - 8-angle drum turret
- - Positioning accuracy: 0. 102 mm
- - Repeatability: 0. 051 mm
- - Coolant motor / hydraulic tank
- - Turbo chip conveyor

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
