Thank you for your visit

This machine was recently sold.

Browse similar machines

Hurco - VMX42iHU-MIL-HUR-2013-00002

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

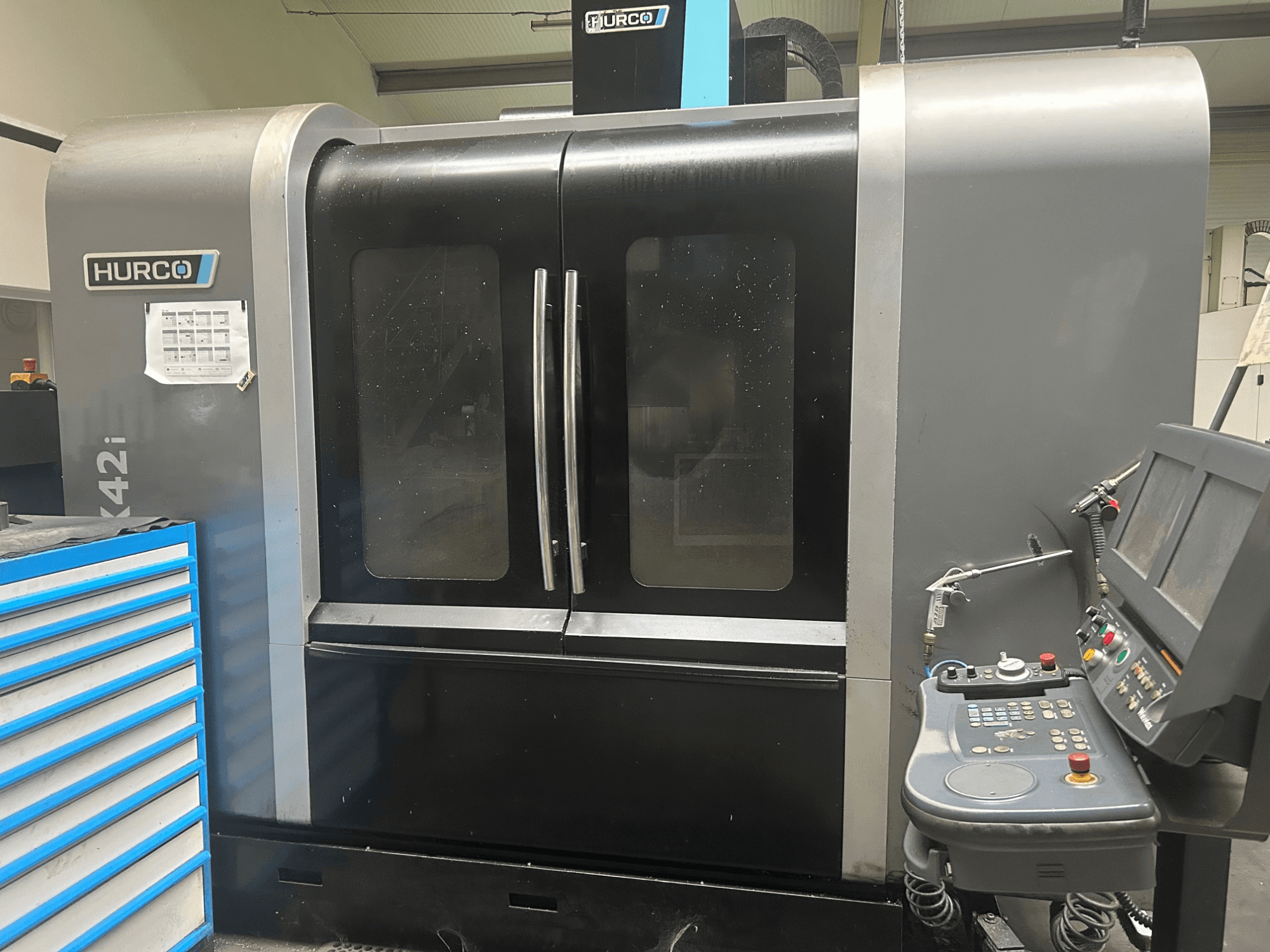

This 3-axis Hurco VMX42i was manufactured in 2013. It features a robust table size of 1,270 × 610 mm with a maximum load of 1,500 kg. The spindle can reach speeds up to 12,000 rpm, supported by a 15 kW motor. It includes an automatic tool changer with a capacity for 24 tools. Ideal for high precision tasks, it also offers rapid traverse rates of 24 m/min. Contact us for more information about this machine.

Overview

  • brand: Hurco
  • year: 2013
  • MODEL: VMX42i
  • application type: Milling
  • Location: Hungary
  • machine type: Vertical Machining Centre

Technical Information - Hurco VMX42i

Dimensions

  • Machine Depth: 2800 mm
  • Machine Height: 2800 mm
  • Machine Weight: 5000 kg
  • Table Load: 1500 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 1.067 mm
  • Y-axis Travel: 610 mm
  • Z-axis Travel: 610 mm

Technical Specification

  • Max. Tool Weight: 7 kg
  • Spindle Speed: 12000 RPM

Additional Information

  • Table:

    • Table size: 1,270 × 610 mm

  • Spindle:

    • Lubrication: Grease-lubricated spindle

  • Feed Rates:

    • Maximum cutting feed: 20 m/min

  • Tool Changer:

    • Type: Automatic tool changer (carousel type)

  • Accuracy:

    • Positioning accuracy: ±0.005 mm

    • Repeatability: ±0.003 mm

  • Control System:

    • Control unit: Hurco WinMax dual-screen CNC control

    • Display: 19” color touchscreens (2×)

    • Software features: Conversational and NC programming, DXF import, 3D model verification

Additional equipment

  • Coolant through spindle (CTS): optional

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
