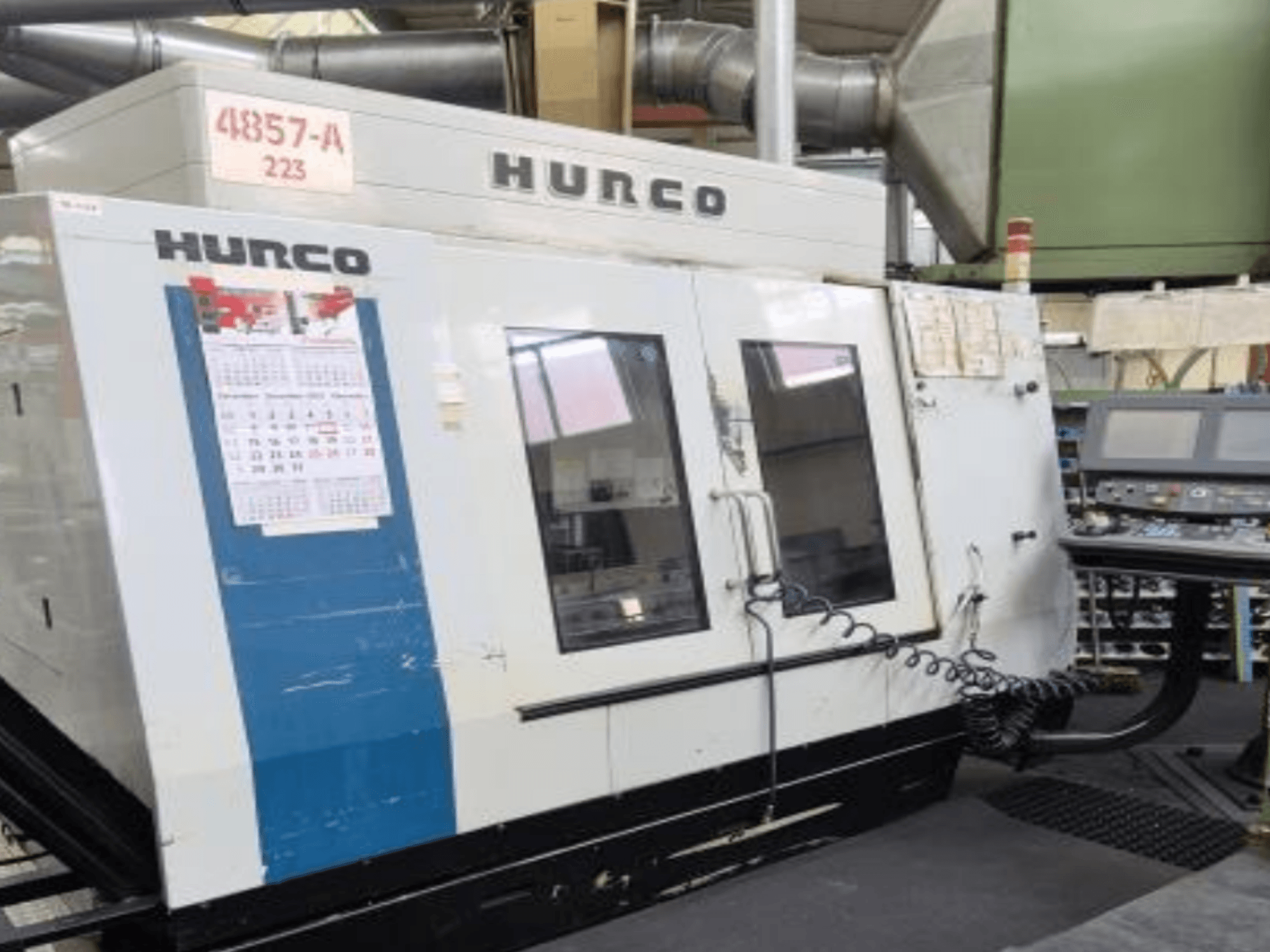

This 3-axis Hurco VMX 42 vertical machining centre was manufactured in 2004. It features a table clamping surface of 1270 x 610 mm and travels of 1060 mm in the X-axis and 610 mm in both Y and Z axes. The machine has a maximum table load of 1100 kg and a spindle speed range of 10 - 10,000 RPM. If you are looking to get high-quality machining capabilities, consider the Hurco VMX 42 machine we have for sale. Contact us for further details.
Overview
- brand: Hurco
- year: 2004
- MODEL: VMX 42
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand:
Technical Information - Hurco VMX 42
Dimensions
- Machine Height: 1750 mm
- Machine Length: 3800 mm
- Machine Weight: 6500 kg
- Machine Width: 4600 mm
- Table Load: 1100 kg
Movement
- Number of Axes: 3
- X-axis Travel: 1060 mm
- Y-axis Travel: 610 mm
- Z-axis Travel: 610 mm
Technical Specification
- Max. Tool Weight: 7 kg
- Spindle Power: 15 kW
- Spindle Speed: 10000 RPM
- Taper Size: SK 40
Additional Information
Table clamping surface: 1270 x 610 mm
Spindle power: 7.5 kW (100% ED), 15.0 kW (30% ED)
Spindle torque: 238 Nm at 625 rpm (30% ED)
Programmable feed rate: 3.0 – 7600 mm/min
Adjustable feed rate: 3.0 – 11,400 mm/min
Rapid traverse X/Y/Z: 30 / 30 / 20 m/min
Pull stud: DIN ISO 7388/11 Type B
Max tool diameter (full/adjacent empty): 80 mm / 160 mm
Max tool length: 300 mm
Tool change time (chip-to-chip): max 14 s
Tool changer: Automatic, 24 stations
Control: Ultimax 4 with dual screens (text and graphics)
Software: Conversational and ISO-code programming
Hardware: Pentium technology, 1.6 GB hard drive, 64 MB RAM
Electrical connection: 38 kVA, 400 V, 42 A
Compressed air: 6 bar / 0.3 ccm/min
Condition: Z-axis drive malfunction
Additional equipment
Coolant system
Coolant wash gun
Chip flushing system
Chip enclosure
Chip conveyor
Signal light
Machine light
Machine feet
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
