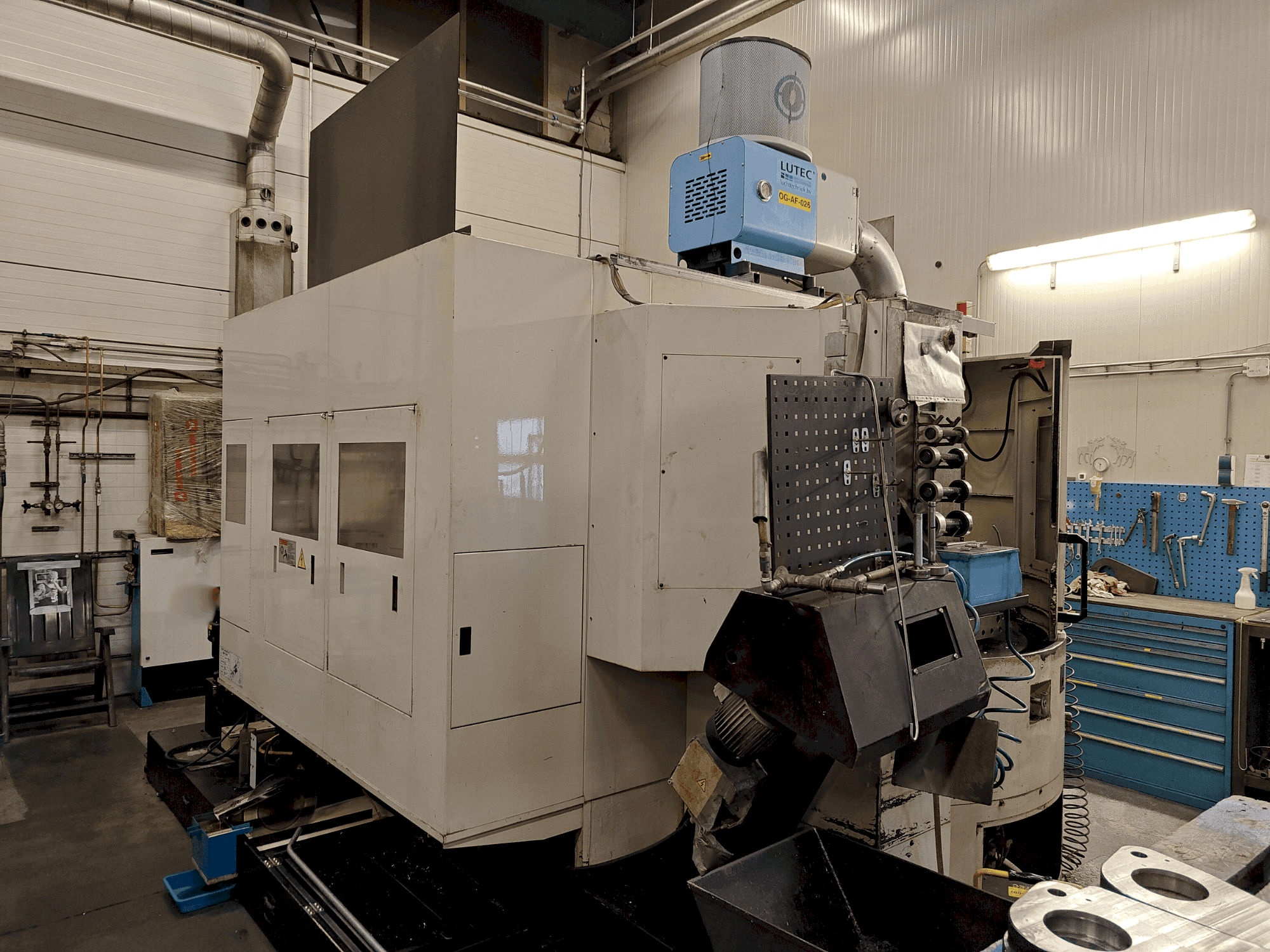

Front view of Hurco HTX 500  machine

Hurco HTX 500

Hurco - HTX 500

2010

Rs. 1,808,700
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 4-axis HURCO HTX 500 horizontal machining center was manufactured in 2010, featuring a large work cube with 28” x 24” x 24” travels and a dual pallet system for enhanced productivity. It boasts a high-speed 12,000 RPM spindle, a powerful 24 HP spindle motor, and rapid traverse rates up to 1,260 ipm. Ideal for rigorous milling tasks, the HURCO HTX 500 machine we have for sale represents a significant asset for any machining facility. Reach out for more information.

Overview

  • brand: Hurco
  • year: 2010
  • MODEL: HTX 500
  • application type: Milling
  • Location: Netherlands
  • machine type: Machining centers (horizontal)
  • availability: From March 2025
  • control unit brand: HURCO
  • GINDUMAC ID: NL-MIL-HUR-2010-00001

Technical Information

General Data

  • Measurements width: 4300 MM
  • Measurements depth: 2542 MM
  • Measurements height: 2810 MM
  • Machine weight: 13000 KG

Control Unit

  • Brand: HURCO
  • Model: UltiMax4

Main drive

  • Number of spindles: 1
  • Spindle speed range: 12,000 1/MIN
  • Spindle motor power: 24 HP
  • Tool taper: CAT 40

Movement

  • X-AXIS Movement: 710 MM
  • X-AXIS Rapid traverse: 1,260 ipm
  • Y-AXIS Movement: 600 MM
  • Y-AXIS Rapid traverse: 1,260 ipm
  • Z-AXIS Movement: 600 MM
  • Z-AXIS Rapid traverse: 1,260 ipm
  • AXIS 1 Movement: 360 °

Workpiece

  • Workpiece weight: Maximum 500 kg

Table

  • Outer length: 500 mm
  • Outer width: 500 mm
  • Min distance between vertical spindle and table: 150 mm
  • Max distance between vertical spindle and table: 765 mm

Tools

  • Slots in storage: 60
  • Max tool diameter: 80 mm
  • Max tool length: 350 mm

    Additional equipment

    • - Dual Pallet System
    • - Dual 12” LCD Color Monitors
    • - Conversational and NC (G-Code) programming
    • - Comprehensive cooling and lubrication systems

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Precision and repeatability with positioning accuracy of +/- 0. 005 mm and repeatability of +/- 0. 002 mm
        • - Voltage required: 208-240 vac / 60hz
        • - Power rating: 60 kva
        • - Air requirements: 5 cfm @ 80-100 psi
        • - Full enclosure splash guards and safety features compliant with ce, ul, csa standards
        • - Extensive diagnostics and on-screen help features for ease of use

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
