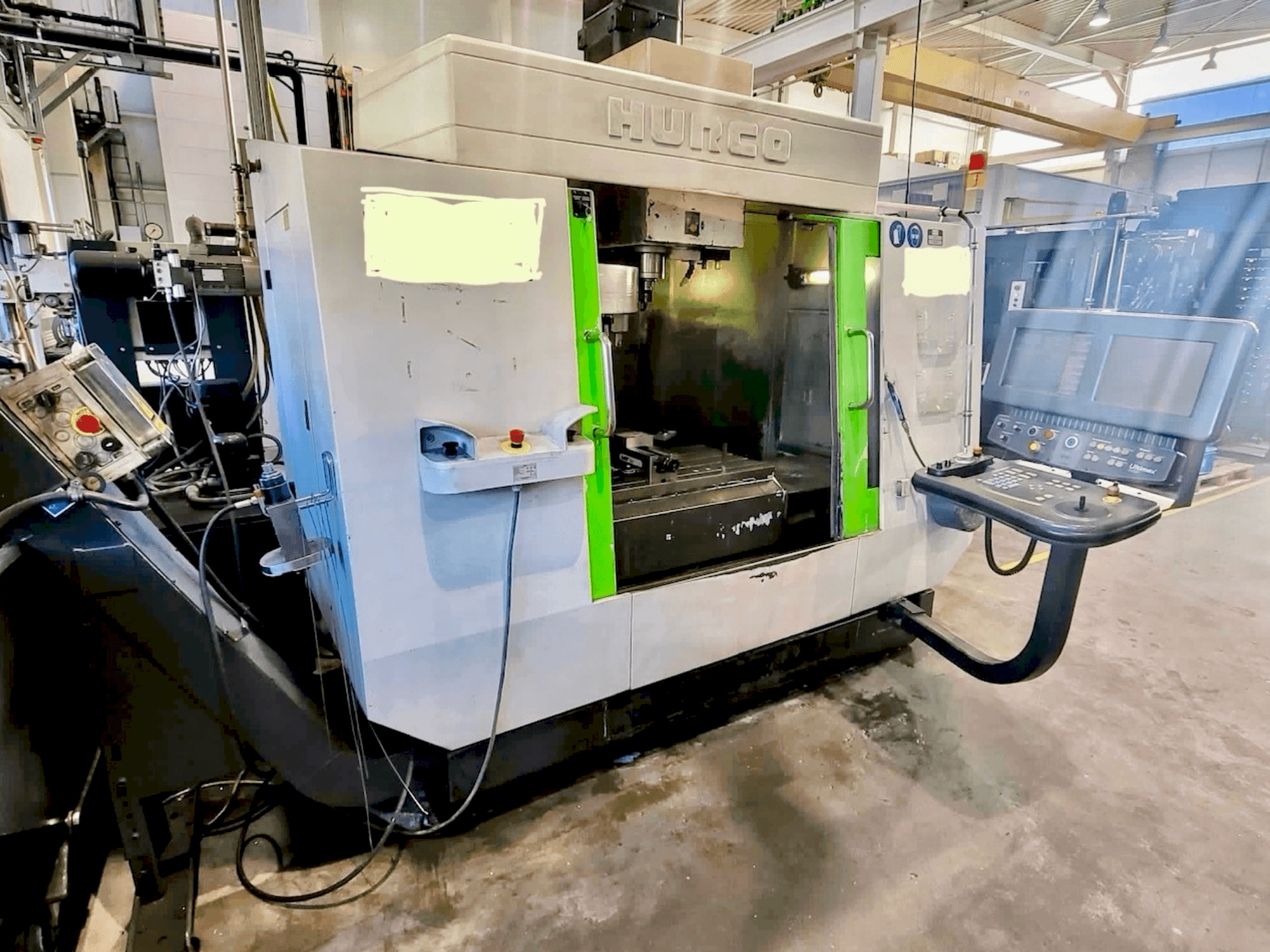

This Hurco BMC4020 Vertical Machining center was manufactured in the year 1998 in Taiwan. It is equipped with a Hurco Ultimax control unit and has 3 axis.

Overview

  • brand: Hurco
  • year: 1998
  • MODEL: BCM4020
  • application type: Milling
  • Location: Austria
  • machine type: Vertical Machining Centre
  • control unit brand: HURCO

Technical Information - Hurco BCM4020

Control Unit

  • Control Brand: HURCO
  • Control Model: Ultimax

Dimensions

  • Machine Depth: 3350 mm
  • Machine Height: 2670 mm
  • Machine Weight: 5600 kg
  • Table Length: 1220 mm
  • Table Width: 510 mm

Movement

  • Number of Axes: 3
  • X-axis Travel: 1020 mm
  • Y-axis Travel: 510 mm
  • Z-axis Travel: 610 mm

Technical Specification

  • Max. Tool Weight: 7 kg
  • Spindle Power: 15 kW

Additional Information

Extra Information

Accessories: cooling lubricant tank, pumps for the external and internal pumps and pump for cooling lubricant recirculation Length of the worktable: 1220 mm Width of the worktable: 510 mm Travel of the X-axis: 1020 mm Travel of the Y-axis: 510 mm Travel of the Z-axis: 610 mm Spindle power: 15 kW Maximum workpiece weight: 682 kg Max. Tool weight: 7 kg Machine height: 2670 mm Machine length: 3350 mm Machine width: 2320 mm Machine weight: 5600 kg Control system: Hurco Ultimax Tool holder: ISO40

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
