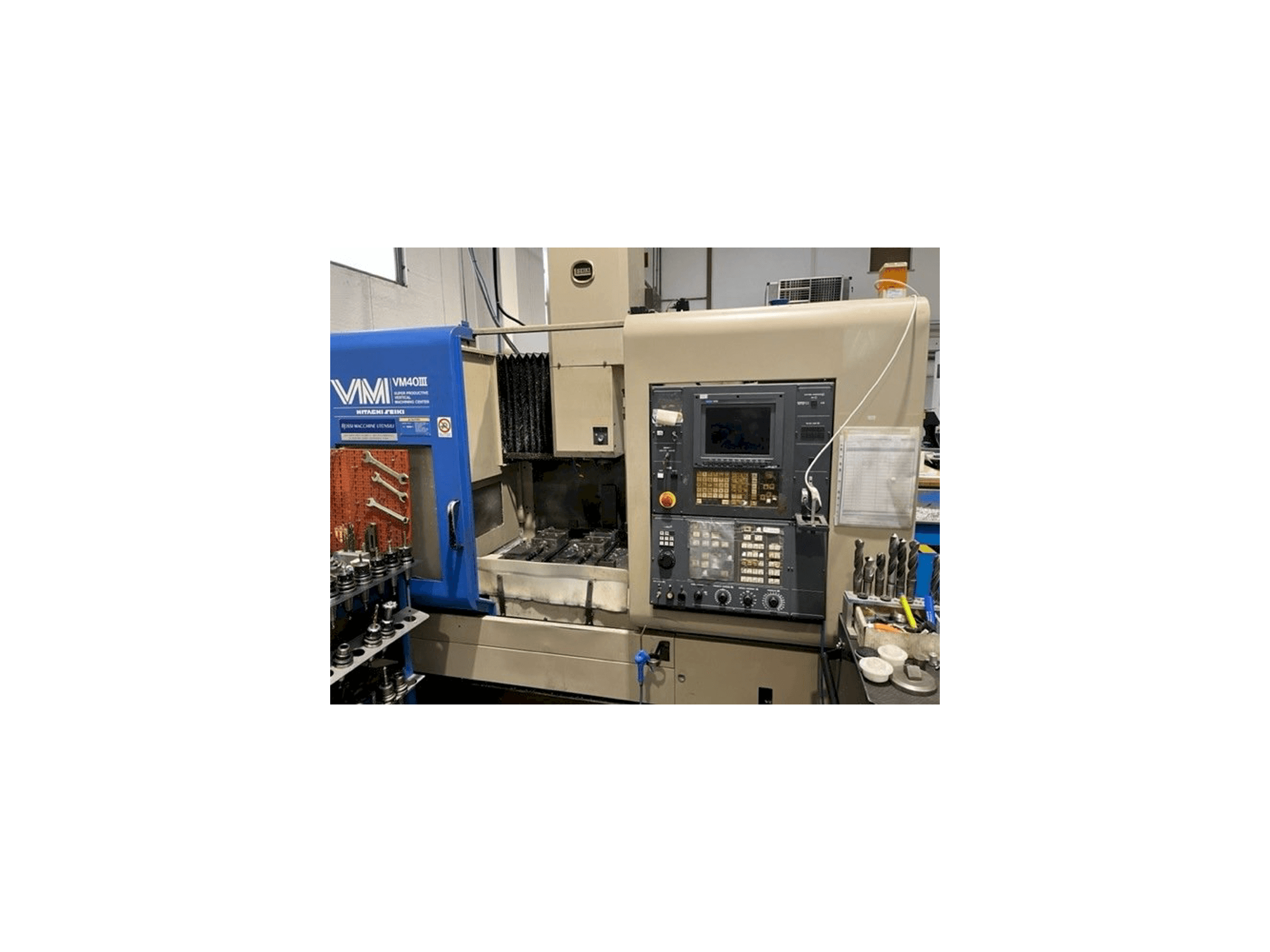

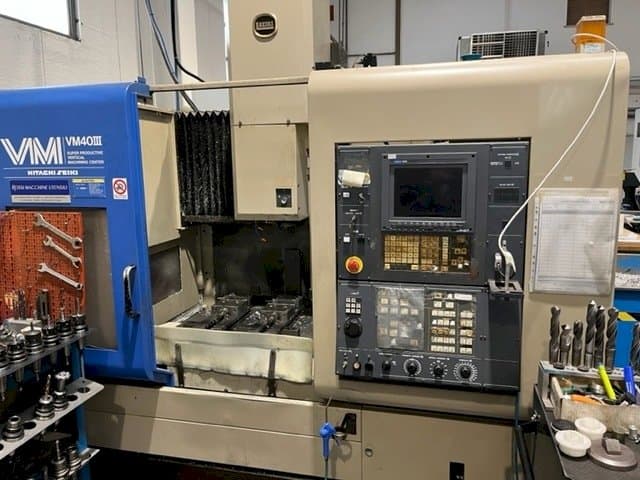

Front view of HITACHI SEIKI VM40  machine

HITACHI SEIKI VM40

HITACHI SEIKI - VM40

1997

Sold

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This HITACHI SEIKI VM40 Milling machine was manufactured in the year 1997. The machine has a spindle speed of 120-12000 rpm.

Overview

  • brand: HITACHI SEIKI
  • year: 1997
  • MODEL: VM40
  • application type: Milling
  • Location: Italy
  • machine type: Milling Machine
  • availability: Sold
  • GINDUMAC ID: IT-MIL-HIT-1997-00001

Technical Information

General Data

  • Measurements width: 2100 mm
  • Measurements depth: 2260 mm
  • Measurements height: 2570 mm
  • Machine weight: 5100 kg

Main drive

  • Spindle speed range: 120-12000 1/MIN

Movement

  • X-AXIS Movement: 560 mm
  • Y-AXIS Movement: 450 mm
  • Z-AXIS Movement: 450 mm

Table

  • Outer length: 760 mm
  • Outer width: 400 mm
  • TSlots size: 2
  • Min distance between vertical spindle and table: 80 - 530 mm
  • Table load: 250 kg

Tools

  • Slots in storage: 20
  • Max weight: 10 kg
  • Max tool diameter: 95 mm
  • Max tool length: 250 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Tool shank: jis 40. T
      • - Direct tapping function
      • - Wide range motor 1:16
      • - Atc, 20 tool
      • - Spiral chip conveyor 2 pcs.
      • - Coolant tank
      • - Flood coolant
      • - Splash cover
      • - Operator side door interlock
      • - Atc door interlock
    • Qualitative Machine Benefits:
      • - Manual pulse generator
      • - Sp. Speed load meter (on screen)
      • - Spindle / feedrate override
      • - Call light
      • - Electric leakage detection breaker
      • - Automatic power cut-off device
      • - W-setter/easy setter
      • - Automatic override memory for spindle and feed
      • - Leveling pads
      • - Work light

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
