HEYNUMAT - 24 UK/4000DE-TUR-HEY-2003-00001

Name: HEYNUMAT 24 UK/4000
Brand: HEYNUMAT
SKU: DE-TUR-HEY-2003-00001
Price: 3674450 INR
Availability: InStock

Rs. 3,674,450

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HEYNUMAT 24 UK/4000 For Sale | gindumac.com

Show in original language

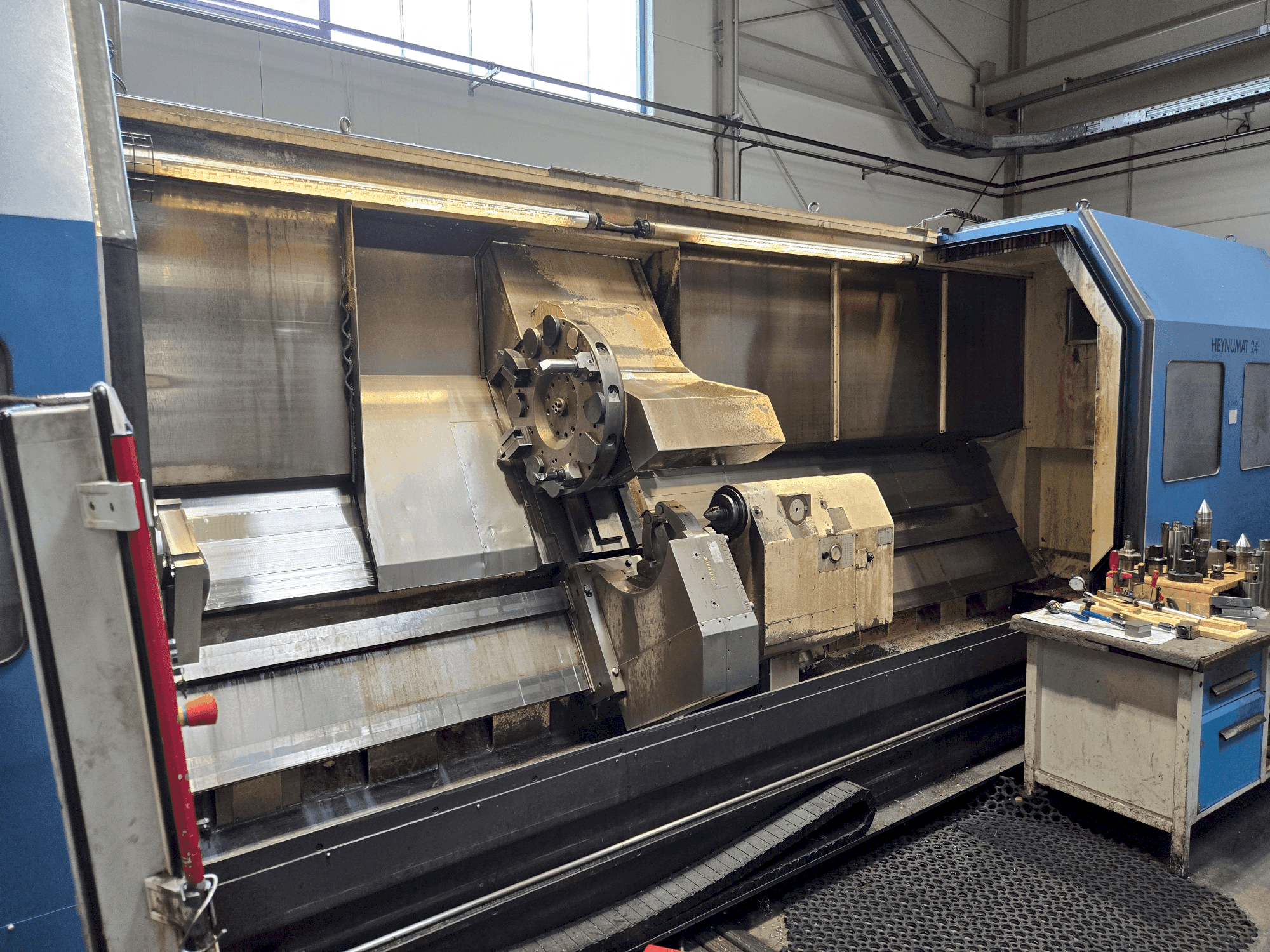

This HEYNUMAT 24 UK/4000 horizontal turning machine was manufactured in 2003. It features a robust spindle bore of 122 mm and a comprehensive spindle speed range up to 1800 rpm. The machine includes a CNC control Sinumerik 840C, ensuring precision and ease of operation. With a turning diameter over bed of 850 mm and a centre distance of 4000 mm, it's ideal for large-scale work. For more information about this horizontal turning machine, please reach out to us.

Overview

brand: HEYNUMAT
year: 2003
MODEL: 24 UK/4000
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Immediately
control unit brand: Siemens

Technical Information - HEYNUMAT 24 UK/4000

Control Unit

Brand: Siemens
Model: Sinumerik 840C

Main drive

Number of spindles: 1
Spindle speed range: 1800 rpm 1/MIN
Spindle bore: 122 mm
Tool taper: MK 6
Number of axis: 3

Movement

X-AXIS Movement: 500 mm
X-AXIS Rapid traverse: 15 m/min
Z-AXIS Movement: 4000 mm
Z-AXIS Rapid traverse: 15 m/min

Workpiece

Workpiece drm over bed: Ø 850 mm

Media

Chip conveyor: Yes

Additional equipment

- Steady rest type SLU, single version, centring range: 50-310 mm
- Chip conveyor: Conveying direction along the machine, discharge height approx. 1200 mm, conveying capacity at 7 bar approx. 25 l/min

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Workpiece length: 4000 mm
- - Adjustable axial force: 2000-22000 n
- - Main cutting force: 20000 n
- - Feed force at 100% ed x/z-axis: 10000/22000 n
- - Rapid traverse speed x/z-axis: 15 m/min
- - Spindle diameter in front bearing: 200 mm
- - Spindle head: din 55026 size 15
- - Quill diameter/stroke: 160/150 mm
- - Tool shank diameter: 60 mm

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
