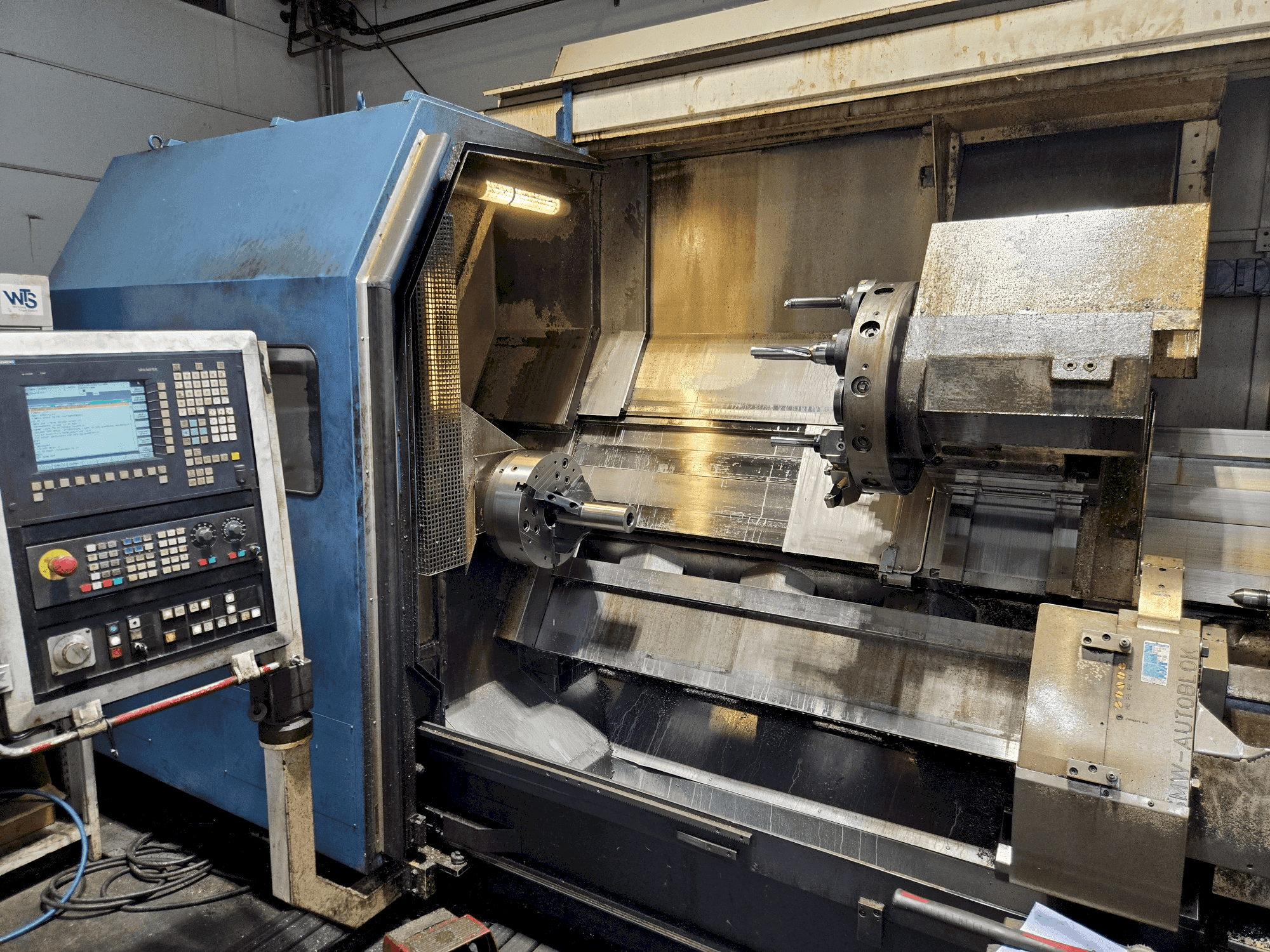

Front view of HEYNUMAT 21 U/2500  machine

HEYNUMAT - 21 U/2500DE-TUR-HEY-2004-00001

Rs. 2,939,600
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This HEYNUMAT 21 U/2500 horizontal turning machine was manufactured in 2004. It features a spindle bore of 105 mm and a centre distance of 2500 mm, suitable for various turning tasks. The machine includes a CNC control Sinumerik 840C, enhancing precision and efficiency. It also comes equipped with a steady rest type SLU with a centring range of 50-295 mm. A great opportunity to buy this HEYNUMAT 21 U/2500 horizontal turning machine. Contact us for further details regarding this horizontal turning machine.

Overview

  • brand: HEYNUMAT
  • year: 2004
  • MODEL: 21 U/2500
  • application type: Turning
  • Location: Germany
  • machine type: Horizontal Turning Machine
  • availability: Immediately
  • control unit brand: Siemens

Technical Information - HEYNUMAT 21 U/2500

Control Unit

  • Brand: Siemens
  • Model: Sinumerik 840C

Main drive

  • Spindle speed range: 2240 rpm 1/MIN
  • Spindle bore: 105 mm
  • Tool taper: MK 5
  • Number of axis: 2

Movement

  • X-AXIS Movement: 340 mm
  • X-AXIS Rapid traverse: 10 m/min
  • Z-AXIS Movement: 2500 mm
  • Z-AXIS Rapid traverse: 10 m/min

Workpiece

  • Workpiece drm over bed: Ø 500 mm

Media

  • Chip conveyor: Yes

    Additional equipment

    • - Steady rest type SLU, single version, centring range: 50-295 mm
    • - Chip conveyor: Conveying direction along the machine, discharge height approx. 1200 mm

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Workpiece length: 2500 mm
        • - Adjustable axial force: 2500-16000 n
        • - Spindle diameter in front bearing: 160 mm
        • - Spindle head: din 55022 size 11
        • - Quill diameter/stroke: 125/140 mm
        • - Tool shank diameter: 60 mm

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
