HERMLE - C800 UHU-MIL-HER-1998-00001
Sold
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- HERMLE C800 U Machining centers (vertical)
Show in original language

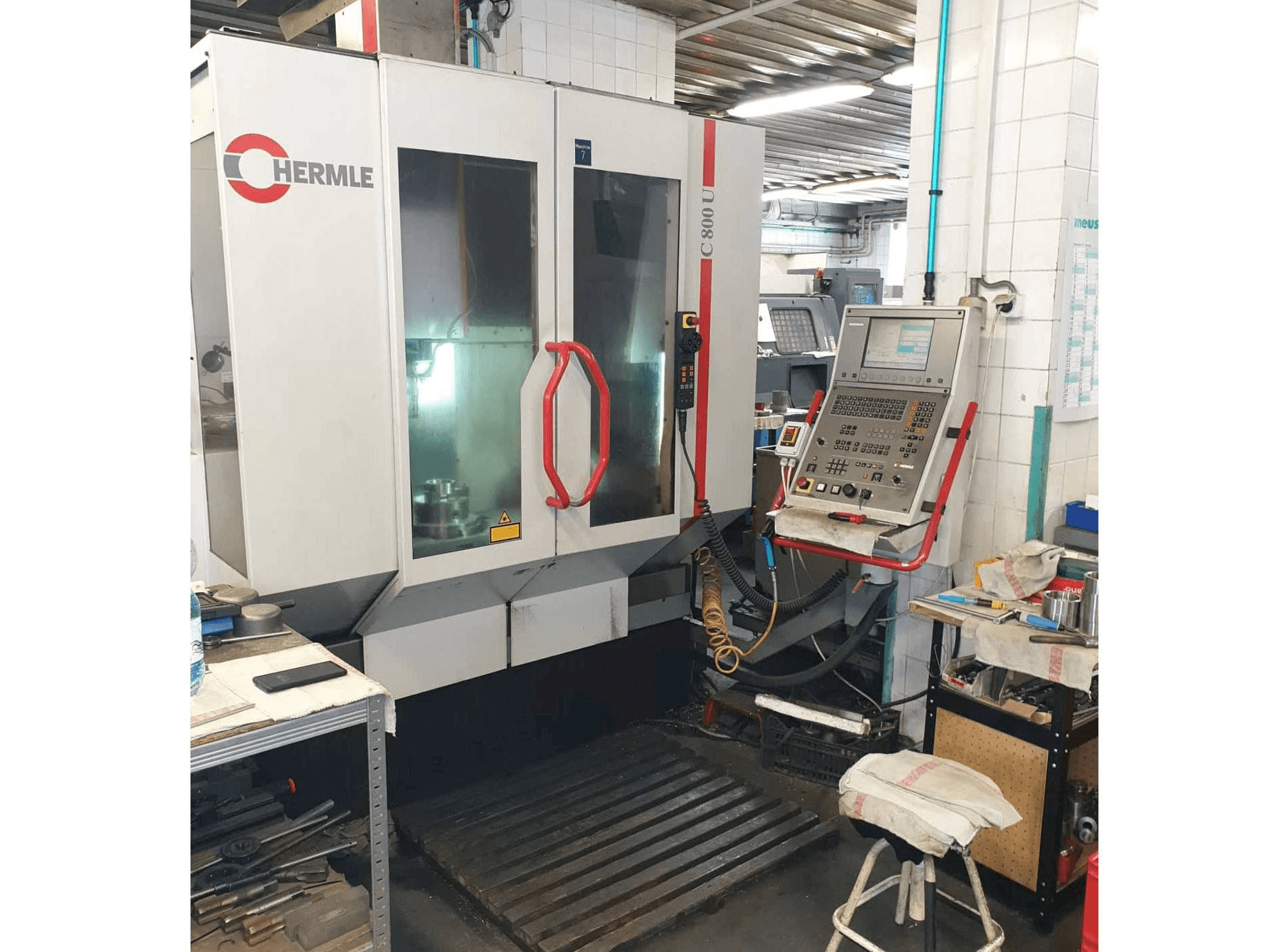

This HERMLE C800 U vertical machining center was built in 1998. It has 73386 spindle hours. It is equipped with a HEIDENHAIN TNC 430 control unit. This 5 axis machine operates with a spindle speed up to 36000 rpm. It comes electrical hand wheel. Very good condition.
Overview
- brand: HERMLE
- year: 1998
- MODEL: C800 U
- production hours: 73386
- application type: Milling
- Location: Hungary
- machine type: Universal Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - HERMLE C800 U
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC 430
Dimensions
- Machine Depth: 3450 mm
- Machine Height: 2700 mm
- Machine Weight: 8000 kg
- Table Load: 300 kg
Movement
- Number of Axes: 5
- X-axis Travel: 800 mm
- Y-axis Travel: 600 mm
- Z-axis Travel: 500 mm
Technical Specification
- Spindle Power: 10.5 kW
- Spindle Speed: 36000 RPM
- Taper Size: HSK 40
Additional Information
Machine Benefits
Technical Machine Benefits
- Electrical hand wheel
- Feed range 30. 000 mm/min
- Rapid traverse 30 m/min
- Tool change unit 30 pos.
- Coolant
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
