HERMLE - C 600 UDE-MIL-HER-2005-00001

Name: HERMLE C 600 U
Brand: HERMLE
SKU: DE-MIL-HER-2005-00001
Price: 4868650 INR
Availability: InStock

Rs. 4,868,650

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HERMLE C 600 U For Sale | gindumac.com

Show in original language

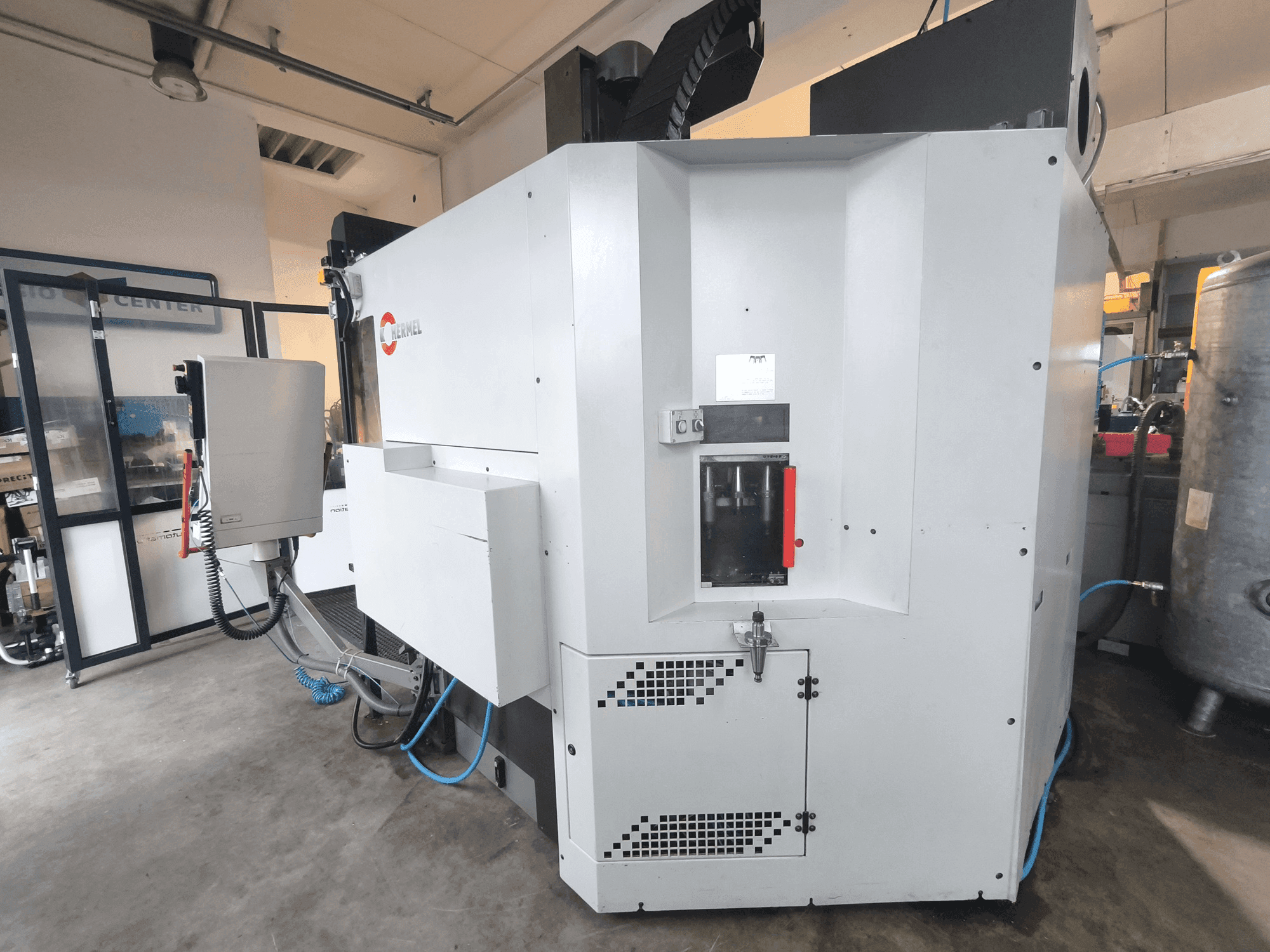

This 5-axis HERMLE C 600 U vertical machining centre was manufactured in 2005. It features a Heidenhain 530 iTNC control, a spindle speed of 16,000 s/min, and a SK40 tool holder. The machine includes a swivelling rotary table Ø280mm with a load capacity of 200Kg, and a tool magazine with 30 positions. Special equipment includes a Schunk zero-point clamping system, scraper belt chip conveyor, and internal coolant supply IKZ 40 bar. Contact us for further details regarding this vertical machining centre.

Overview

brand: HERMLE
year: 2005
MODEL: C 600 U
production hours: 38135
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Immediately
control unit brand: Heidenhain

Technical Information - HERMLE C 600 U

General Data

Machine weight: 6500 KG

Control Unit

Brand: Heidenhain
Model: 530 iTNC

Main drive

Spindle speed range: 16000 1/MIN
Tool taper: SK40
Number of axis: 5

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 450 mm
Z-AXIS Movement: 450 mm

Tools

Slots in storage: 30

Media

Internal cooling: Yes

Additional equipment

- Interface for automation
- Schunk zero-point clamping system with rotary feed-through
- Automatic door: Yes (only in conjunction with automation)
- Documentation
- Scraper belt chip conveyor: Knoll
- Coolant device: Knoll
- Tool breakage control / tool measurement: Blum
- Switch cabinet cooler: Rital
- Paper belt filter and backflush filter
- Electrical heat compensation: Heidenhain

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Blast air through the centre of the spindle
- - C-axis worm drive
- - Measuring probe: m&h
- - Emulsion mist extraction
- - Heidenhain handwheel
- - Optional: ur10 automation
- - Swivelling rotary table: Ø280 mm
- - Table load: 200 kg
- - Swivelling range: ± 110°
- - Feed rates in x, y, z: 35 m/min
Qualitative Machine Benefits:
- - Comprehensive tool magazine with 30 positions
- - Advanced automation interface and clamping systems
- - Robust cooling and filtration systems

Extra information

- Machine still under power // That machine was completly overhauled in 2023/2024 // Overhauled 2023/2024: Machine interior panels - Door suspension left and right - Interior light left and right - Roller blind X axle left and right - Roller blind Y axle left and right - Inverter various axes - Table support C-axis - M&H measuring probe - Y position measuring system incl. connection cable - All pneumatic lines.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
