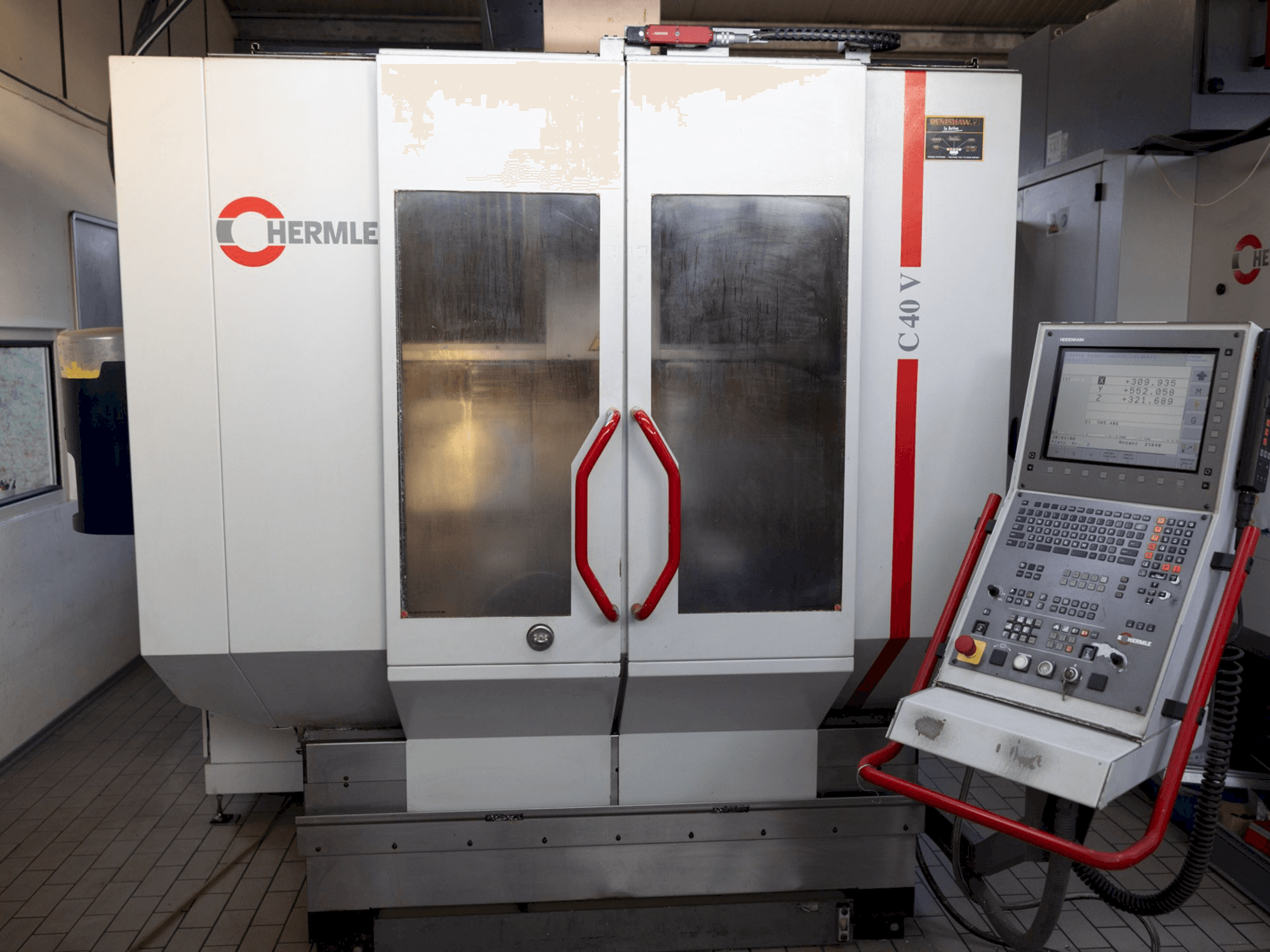

Detail of HERMLE C 40 V  machine

HERMLE - C 40 VDE-MIL-HER-2006-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This HERMLE C 40 V Vertical Machininig Center was manufactured in the year 2006 in Germany. It is equipped with a HEIDENHAIN TNC 530 control unit and has 3 axis. The machine has a spindle speed of 18000 rpm. It has no internal cooling (IKZ) but will be delivered with a blow air outside, renishaw probe and Heidenhain tool probe. The clamping devices visible in the working room picture are not included. It is in very good conditions and well maintained with 37,315 hours machine-on. Currently it is used in a German CNC shop and available because of a planned upgrade from 3 axis to automated 5 axis machining.

Overview

  • brand: HERMLE
  • year: 2006
  • MODEL: C 40 V
  • production hours: 37315
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • availability: Sold
  • control unit brand: HEIDENHAIN

Technical Information - HERMLE C 40 V

General Data

  • Machine weight: 10000 kg

Control Unit

  • Model: iTNC 530
  • Brand: HEIDENHAIN

Main drive

  • Spindle speed range: 18000 1/MIN
  • Number of axis: 3

Movement

  • X-AXIS Movement: 850 mm
  • Y-AXIS Movement: 700 mm
  • Z-AXIS Movement: 500 mm

Tools

  • Type of tool holder: SK 40

    Additional equipment

    • - Chip conveyor
    • - Blow air outside
    • - Renishaw probe
    • - Heidenhain tool probe

    Additional Information

      Extra information

      • - No Internal Cooling (IKZ), Clamping devices are not included in the offer

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

    Your account manager:

    Sergi Guardia

    Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

    get in contact

    Payment Terms

    • Payment in advance

    • Asset Financing
