Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
HERMLE - B 300 UGB-MIL-HER-2011-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- HERMLE B 300 U

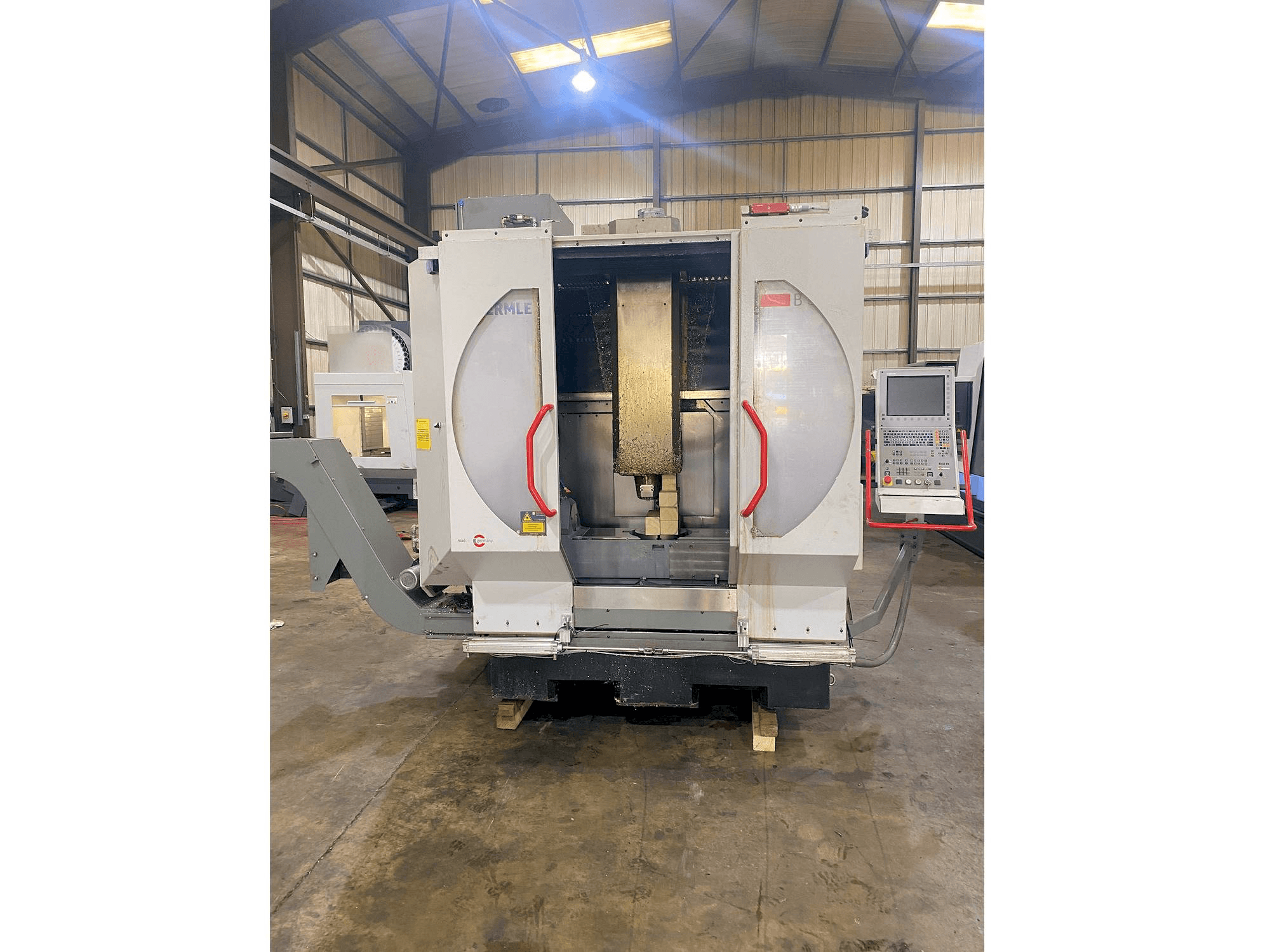

This HERMLE B 300 U Vertical Machining Center was made in the year 2011 in Germany. This machine has been on for 74148 hours, of which 23140 are spindle hours. It is operated through a Heidenhain iTNC 530 control unit. This 5 axis machine can work with a spindle speed of 15000 rpm and a table diameter 280 mm.
Overview
- brand: HERMLE
- year: 2011
- MODEL: B 300 U
- production hours: 74148
- application type: Milling
- Location: United Kingdom
- machine type: Universal Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - HERMLE B 300 U
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC 530
Dimensions
- Machine Depth: 2700 mm
- Machine Height: 2900 mm
- Machine Weight: 8500 kg
Movement
- Number of Axes: 5
- X-axis Travel: 800 mm
- Y-axis Travel: 600 mm
- Z-axis Travel: 500 mm
Technical Specification
- Number of Tools: 30
- Spindle Speed: 15000 RPM
- Through-spindle Coolant: Yes
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Good condition
Technical Machine Benefits
- C axis 0. 001 degrees (360 degree full rotation)
- A axis -/+ 110 degrees
- Tool setter, workpiece probe
- Table diameter 280 mm
- Rapid feedrate 30 m/min.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
