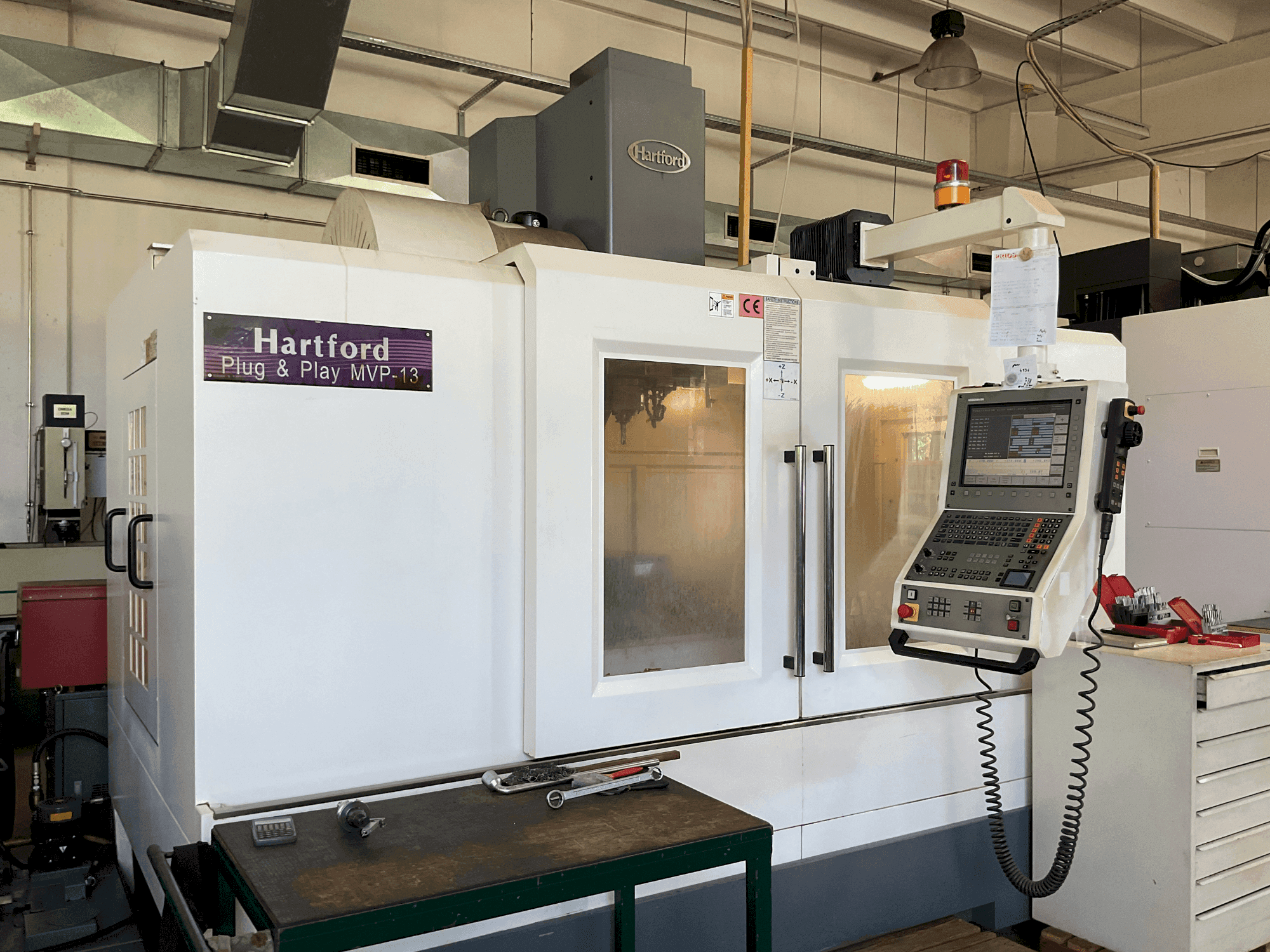

This 3-axis Hartford MVP-13 vertical machining center was manufactured in 2008. It features a direct drive main spindle, linear rolling guideways, and a BT-40 taper. The spindle operates at up to 15,000 RPM with a 13 kW power output. It supports a table load of 1,500 kg and offers a rapid traverse rate of 24,000 mm/min. Consider the opportunity to buy this Hartford MVP-13 vertical machining center. Contact us for more information about this machine.
Overview
- brand: HARTFORD
- year: 2008
- MODEL: MVP-13
- application type: Milling
- Location: Slovenia
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - HARTFORD MVP-13
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC530
Movement
- X-axis Travel: 1300 mm
- Y-axis Travel: 700 mm
- Z-axis Travel: 650 mm
Additional Information
Additional equipment
- Through-spindle air blow / Spindle oil cooling / HEIDENHAIN manual pulse generator MPG HR 40 / HEIDENHAIN three-axis linear scales / PC connection via electrical cable + TNC software / CE certification / RS-232 interface / Centralized lubrication via controller / Work light / Automatic machine shut-off / Manual air blow gun / Workpiece cooling system / Oil separator / Spindle pretensioning
Machine Benefits
Technical Machine Benefits
- Weight (kg): 9600
- Cutting feed rate: 1 – 12000 mm/min /rapid traverse rate: 24000 mm/min
- Max table-to-spindle distance: 770 mm / spindle diameter: 50 mm
- Table size: 1300 x 700 mm / table load capacity: 1500 kg
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
