Used HARDINGE VL-5 - 2001 - Lathe for sale | gindumac.com

Show in original language

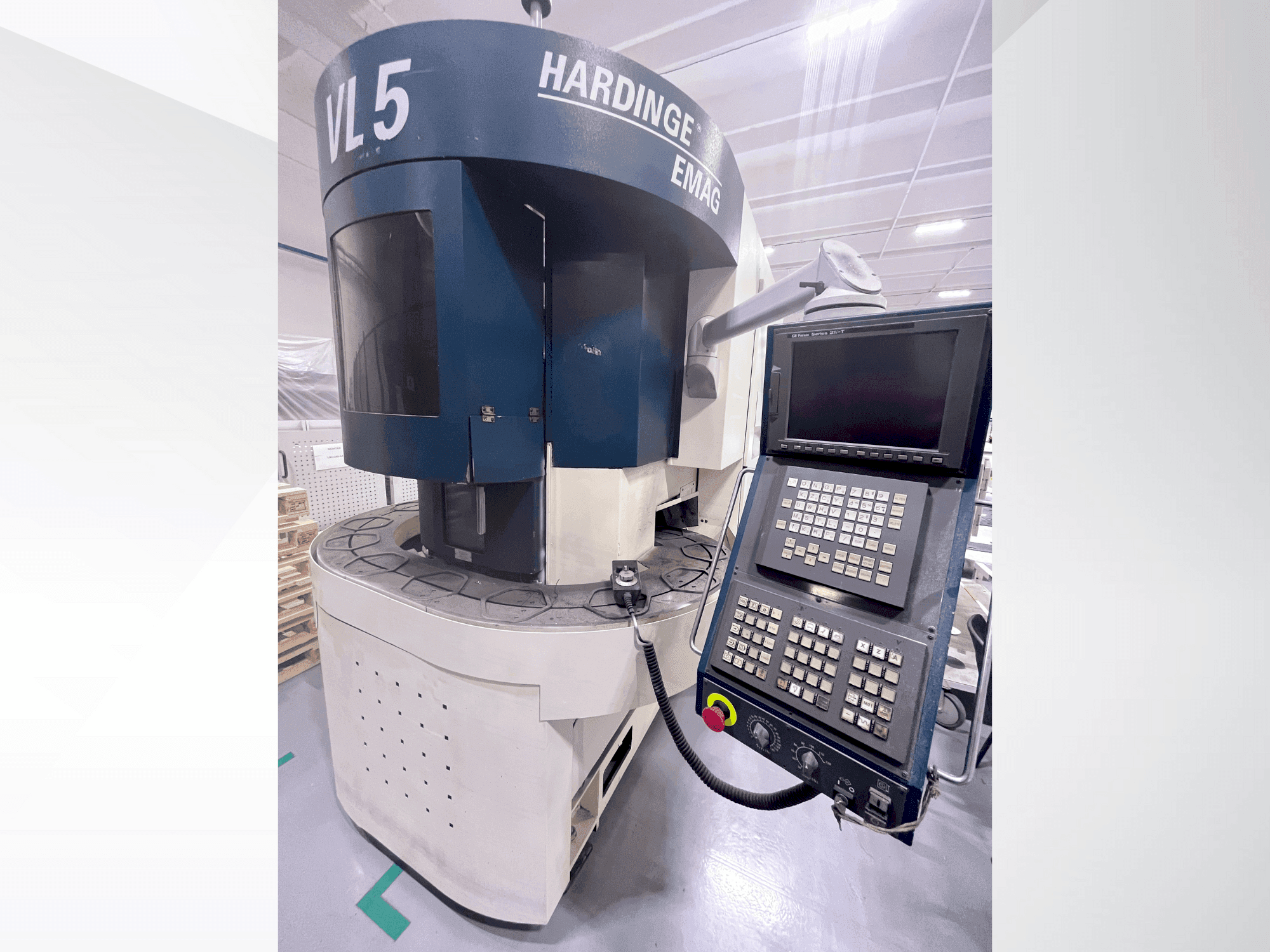

This HARDINGE VL-5 lathe, manufactured in 2001, is equipped with a GE Fanuc 21i-T controller. It has a chuck diameter of 260 mm and supports a maximum turning diameter of 220 mm and a workpiece length of 110 mm. The spindle speed reaches up to 4,500 rpm, with rapid feed rates of 60 m/min for the X-axis and 30 m/min for the Z-axis. It also features an automatic tool changer with 12 driven positions. For further details regarding this lathe, contact us.

Overview

brand: HARDINGE
year: 2001
MODEL: VL-5
application type: Turning
Location: Bulgaria
machine type: Vertical Turning Machine
control unit brand: FANUC

Technical Information - HARDINGE VL-5

General Data

Machine weight: 6500 KG

Control Unit

Model: 21i-T
Brand: FANUC

Main drive

Spindle speed range: 4500 1/MIN

Movement

X-AXIS Movement: 570 MM
Y-AXIS Movement: 200 MM

Tools

Slots in storage: 12

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum workpiece diameter: 220 mm
- - Maximum workpiece length: 110 mm
- - High rapid feed rates (x / z) 60/30 m/min for increased machining efficiency.
- - Equipped with a ge fanuc 21i-t controller for advanced control capabilities.
Qualitative Machine Benefits:
- - Provides precise control over machining with high spindle speeds up to 4500 rpm.
- - Capable of handling complex parts with y-axis movement.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
