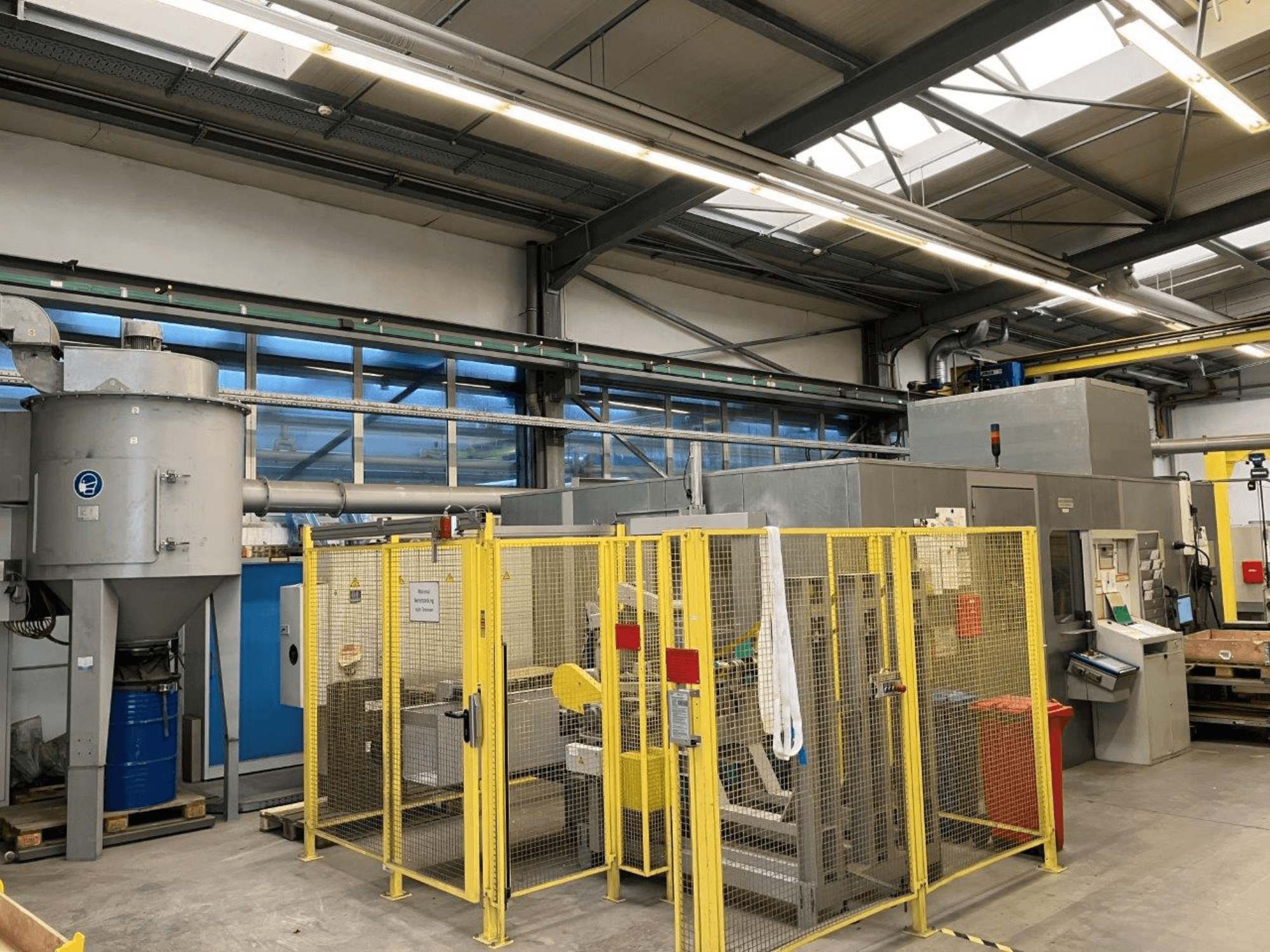

HARALD BAUGMARTEN - TM 400 S DE-GRI-HAR-2014-00001

• Press (holding)

  • Force: 3500 kN

  • Stroke: 50 mm

  • Speed at 500 kN: approx. 30 mm/s

  • Speed at 3500 kN: approx. 4 mm/s

  • Return speed: 60 mm/s

• Press (cutting)

  • Force: 2500 kN

  • Stroke: 100 mm

  • Speed at 500 kN: approx. 30 mm/s

  • Speed at 2500 kN: approx. 5 mm/s

• Shock damping stroke: 20 mm

• Drive and power

  • Hydraulic pump power: 2 × 15 kW

  • Total hydraulic drive power: 30 kW

  • Cooling unit power: 3 kW

  • Hydraulic unit power: 3 kW

• Pipe connections (machine to hydraulic unit)

  • 2 × Ø38 × 4 mm

  • 2 × Ø30 × 4 mm

  • 1 × Ø20 × 3 mm

• Mechanical adjustment tolerance: ±5 mm

• Operating hours

  • Hydraulic unit 1: 20,652.8 h

  • Hydraulic unit 2: 20,641.8 h

• Main system components (core machine)

  • Cut-off grinding machine type TM 400 S (manufacturer: Sema Systemtechnik)

  • Four-column press (manufacturer: Winter Pressen)

  • Hydraulic power unit with hydraulic pumps

  • Control cabinet and operator panel

Additional equipment

• Automatic bar feeder with bundle loader

• Bar breaking device

• Bar rotary drive / measuring station

• Weighing station with section sorting

• Extraction and filter system

• Soundproof booth (HüWa Schallschutz und Anlagenbau) and protective fencing
