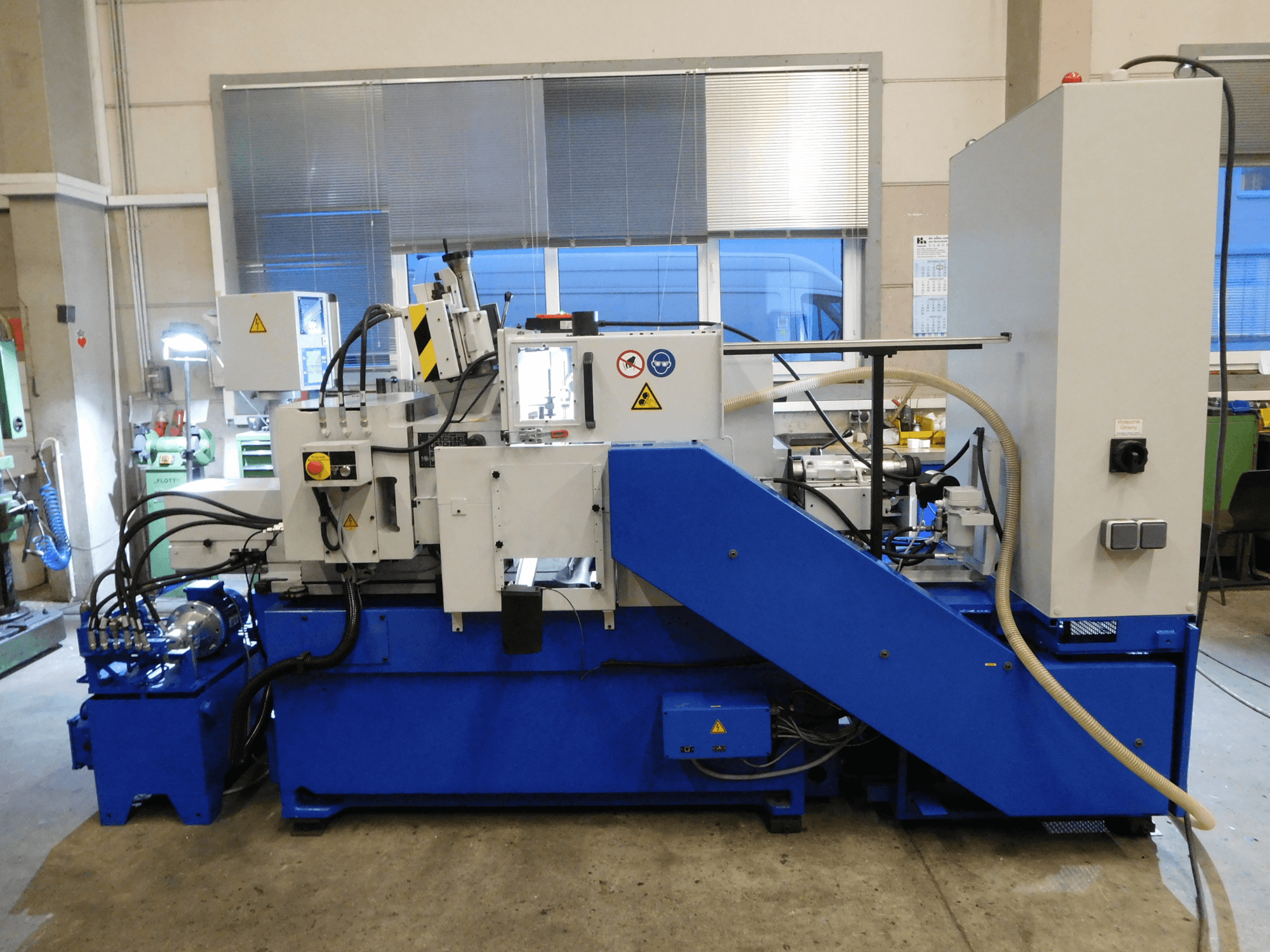

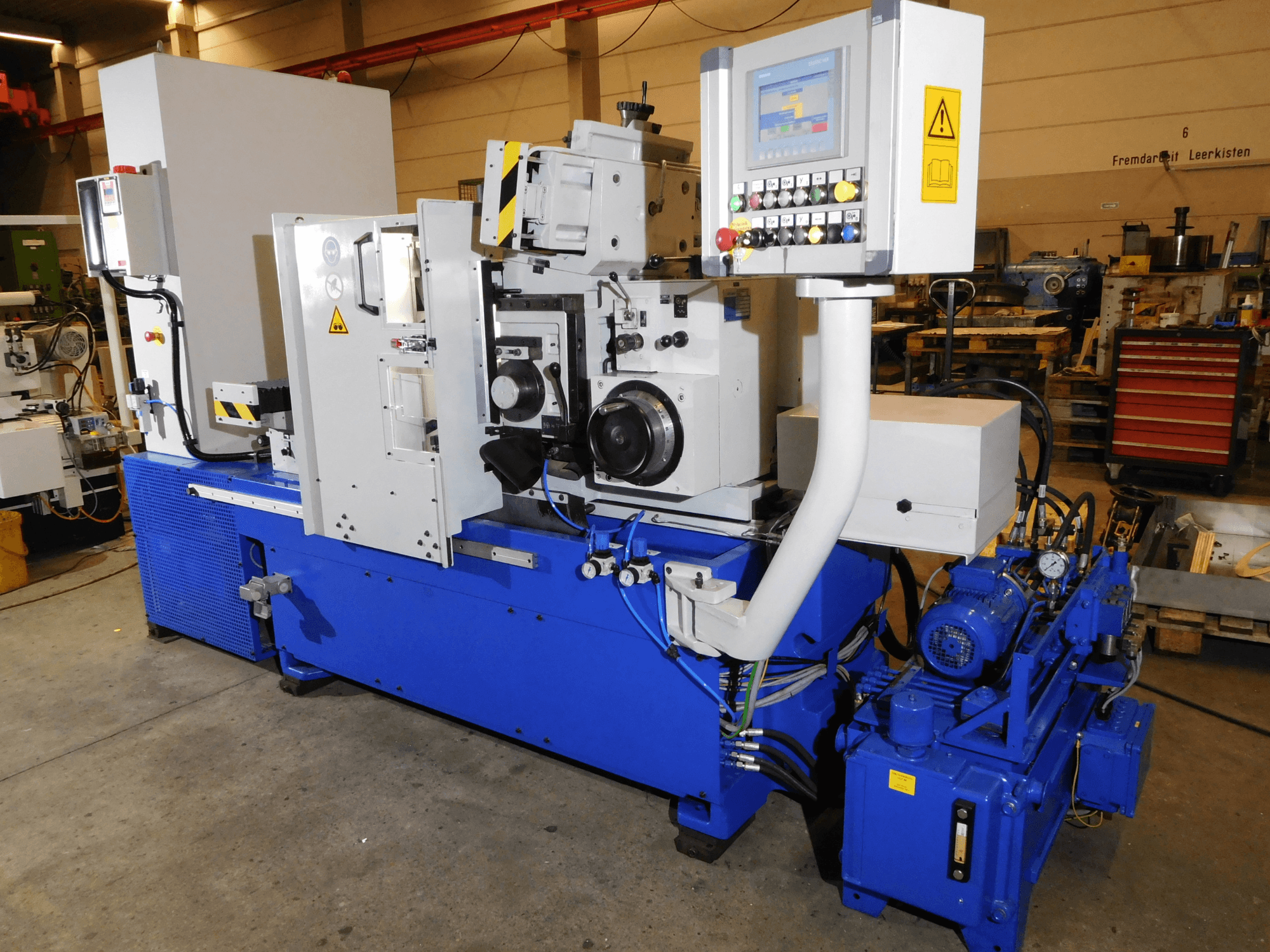

Schaudt Mikrosa - SASL 125DE-GRI-SCH-1989-00001

Retroffited & Overhauled in 2021/22

Working range:

• Maximum workpiece diameter

• that can be ground

• with a grinding wheel Ø 500 mm: 140 mm

• Maximum workpiece diameter

• that can be ground

• with a grinding wheel Ø 630 mm: 80 mm

• Minimum workpiece diameter that can be ground: 3.5 mm

• Maximum workpiece length for through-feed grinding: 200 mm

• Maximum workpiece length in plunge grinding 245 mm

• Maximum grindable profile depth on the workpiece 25 mm

Grinding wheel:

• Maximum outer diameter 500 or 630 mm

• Minimum outer diameter 380 mm

• Maximum grinding wheel width 250 mm

• Grinding wheel bore 305 mm

• Guide wheel:

• Maximum guide wheel outer diameter 315 mm

• Maximum guide wheel width 250 mm

• Bore diameter 127 mm

Power requirements:

• Power consumption approx. 33 kW

Additional equipment

• Optional: Additional equipment available

Machine Benefits

Technical Machine Benefits

• Hydrodynamic axis bearing

• Regular maintenance during series production
