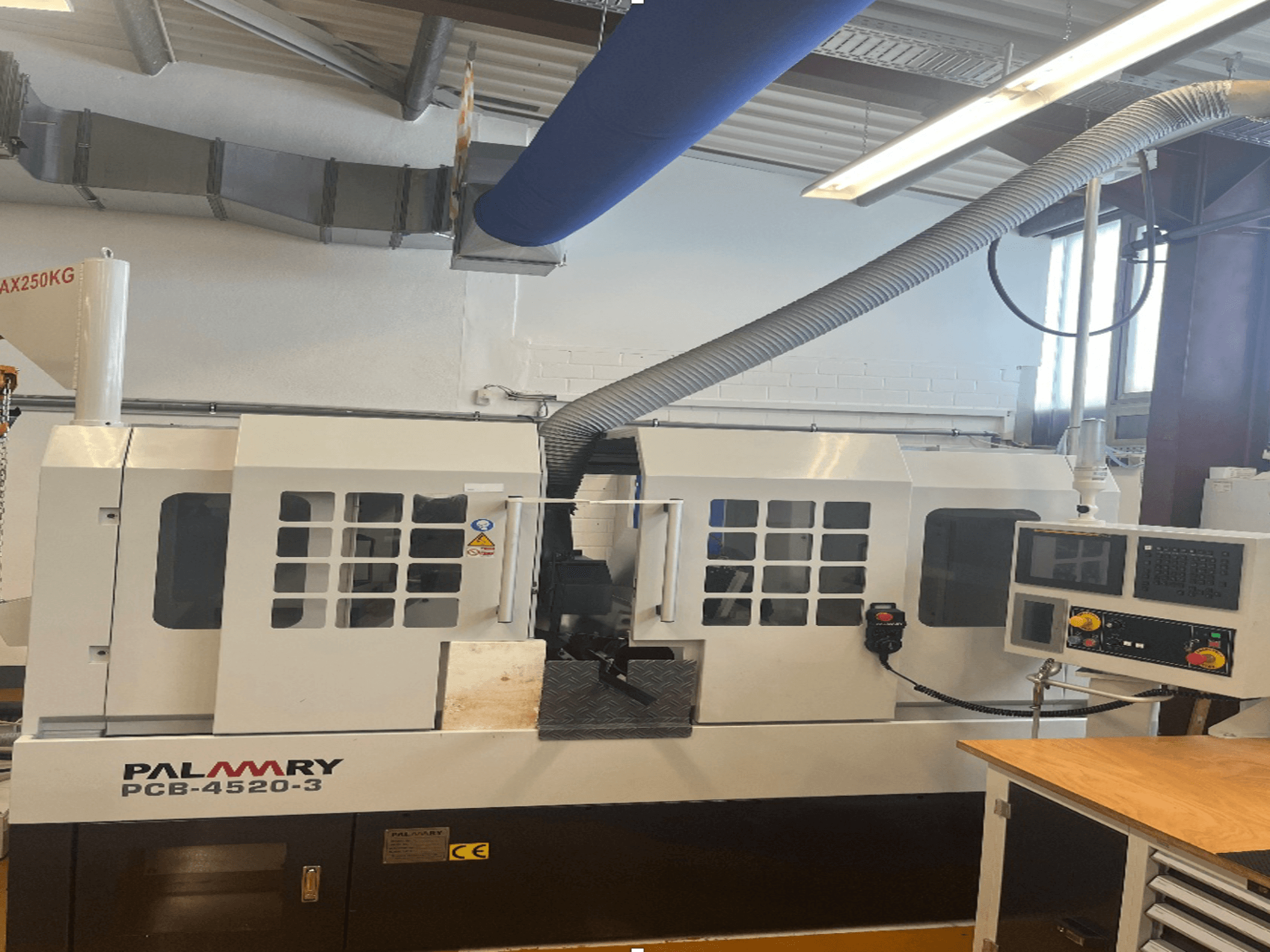

PALMARY - PCB-4520-3DE-GRI-PAL-2024-00001

Standard Features

• Maximum Grinding Diameter: Ø60 mm

• Regulating Wheel Speed: 30 rpm

• Grinding Wheel Speed: 1,200 rpm (max. 45 m/s)

• Grinding Processes: Infeed Grinding and Throughfeed Grinding

• Integrated Dressers: 2

• FANUC CNC Control System

• Adjustment Cart and Flange

• Grinding Wheel and Flange

• Standard Stopping Type Grinding Table

• Stopping Type Blade

• Diamond Dresser (2 pcs/set)

• Main Axis Lubricating Device

• Pilot Lamp

Optional Equipment

• Paper Filter (80 L/min with 260 L Tank)

• Magnetic Coolant Separator (80 L/min)

• Grinding Wheel Inverter (15 HP)

• Fully Enclosed Splash Guard

• Jib Crane for Grinding Wheel Change (PCB-45)

• Vibration Meter for Manual Grinding Wheel Balancing (KINIK KGB-2010)

• Throughfeed Table for Small Diameters (Ø8–38 mm)

• Throughfeed Table for Large Diameters (Ø35–60 mm)

• Automatic Unloading Attachment (Throughfeed Grinding)

  • Adjustable Speed

  • Workpiece Diameter Capacity: Ø8–60 mm

  • Maximum Workpiece Length: 150 mm

• Additional Infeed Blade Set (t = 6 mm, 13 mm, 20 mm)

• Additional Throughfeed Blade Set (t = 6 mm, 13 mm, 20 mm)

• Spare Flange for Adjustment Cart and Adjustment Wheel

Additional Information

• Machine has no CE Certificate
