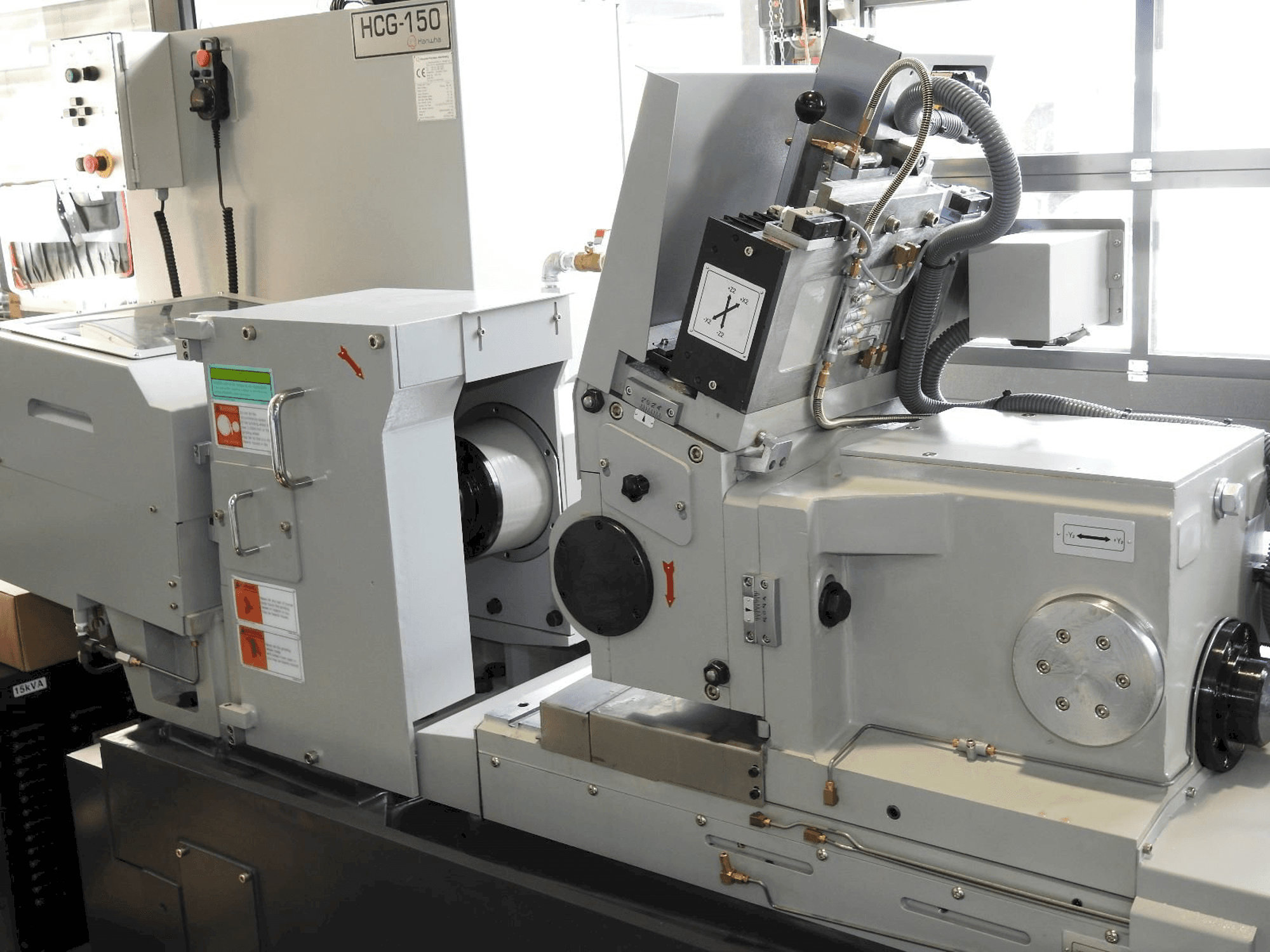

Front view of Hanwha HCG 150  machine

Hanwha HCG 150

Hanwha - HCG 150

2019

Rs. 17,888,850

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Hanwha HCG 150 Grinding machine was manufactured in the year 2019. It is equipped with a Fanuc control unit. The machine has a grinding wheel of 2600 min/m.

Overview

  • brand: Hanwha
  • year: 2019
  • MODEL: HCG 150
  • application type: Grinding
  • Location: Germany
  • machine type: Grinding machines
  • availability: Immediately
  • control unit brand: Fanuc
  • GINDUMAC ID: DE-GRI-HAN-2019-00001

Technical Information

General Data

  • Measurements width: 1450 mm
  • Measurements depth: 2750 mm
  • Machine weight: 4000 kg

Control Unit

  • Brand: Fanuc

Main drive

  • Spindle motor power: 11 kW

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Hanwha centerless grinding machine hcg-150cnc
      • - Optimized clamping for easy grinding wheel change
      • - Double clamping of the regulating wheel for high precision
      • - Grinding wheel bearing selectable, hydrodynamic or roller bearing
      • - Roller bearing is standard
      • - Grinding wheel with roller bearing
      • - Grinding wheel dxwxid: [Ø 455 x 150mm x 228. 6mm] grinding wheel: [2600 m/min].
      • - Control wheel drive 1. 4 kw (servo motor)
      • - Control wheel: [10-300 rpm]
      • - Workpiece grinding diameter: [Ø 1. 0mm - Ø 50mm]
    • Qualitative Machine Benefits:
      • - Control wheel: dxbxid: [Ø 305 x 150mm x 177. 8mm]
      • - Tool box
      • - Disk changing unit
      • - Magnetic separator
      • - Grinding wheel dressing

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
