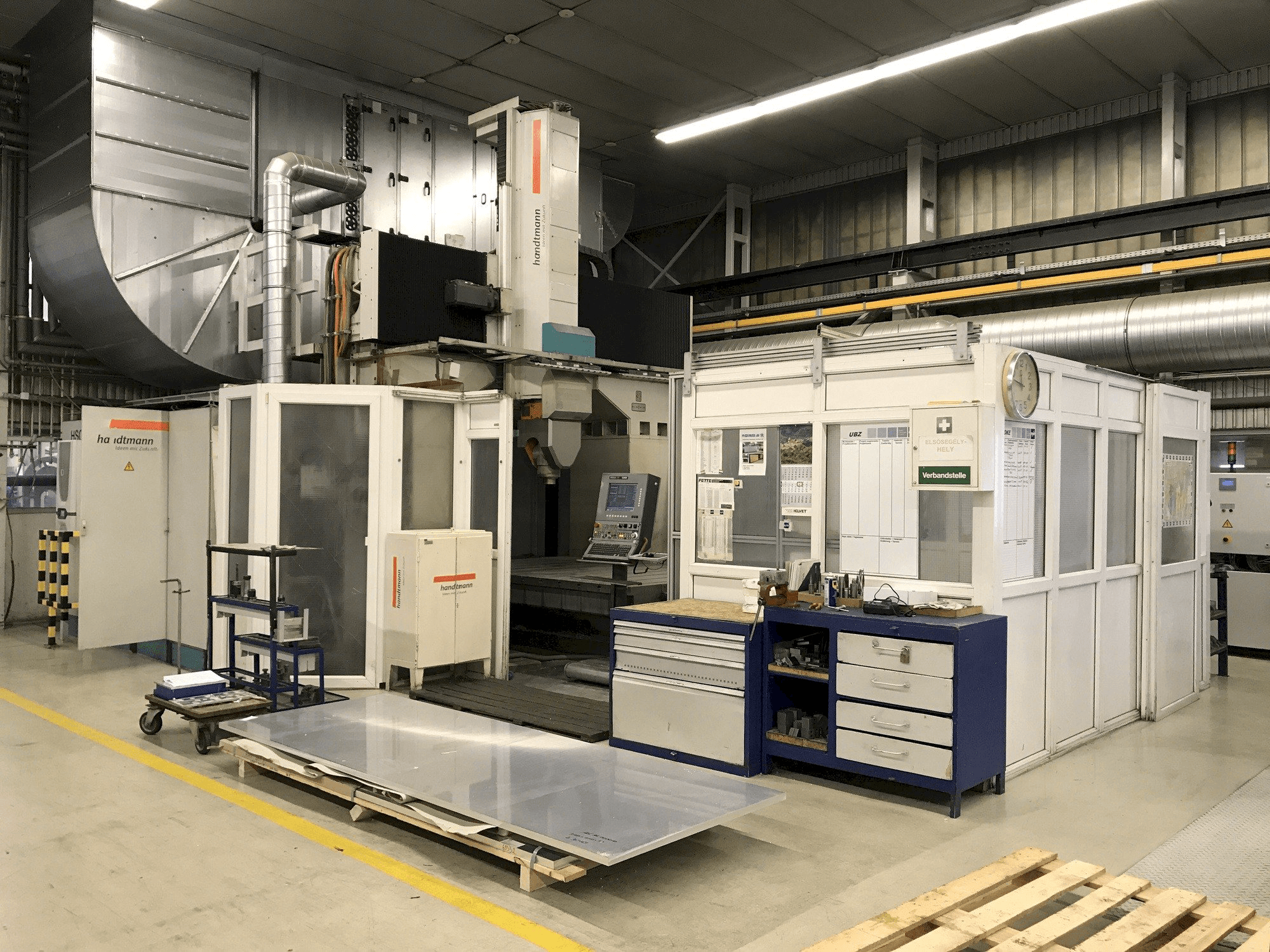

Front view of Handtmann UBZ NT 300/200 T2 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Handtmann UBZ NT 300/200 T2

Photo Gallery

Handtmann - UBZ NT 300/200 T2HU-MIL-HAN-2003-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Handtmann UBZ NT 300/200 T2 Vertical Machining Center

Show in original language

This Handtmann UBZ NT 300/200 T2 Vertical Machining Center was made in Germany in 2003. It has a production history of 6605 working hours. It is equipped with a Fidia C20 control unit. This machine can work with a spindle speed up to 20000 rpm. It has a new spindle that was replaced in 2017.

Overview

brand: Handtmann
year: 2003
MODEL: UBZ NT 300/200 T2
production hours: 6605
application type: Milling
Location: Hungary
machine type: Vertical Machining Centre
control unit brand: FIDIA

Technical Information - Handtmann UBZ NT 300/200 T2

Control Unit

Control Brand: FIDIA
Control Model: C20

Dimensions

Machine Depth: 7200 mm
Machine Height: 5900 mm
Machine Weight: 40000 kg
Table Length: 3000 mm
Table Width: 2000 mm

Movement

A-axis Max: 125°
A-axis Min: 95°
C-axis: 275°
X-axis Travel: 4200 mm
Y-axis Travel: 2750 mm
Z-axis Travel: 1350 mm

Technical Specification

Max. Tool Weight: 4 kg
Number of Tools: 20
Spindle Speed: 20000 RPM

Additional Information

Machine Benefits

Technical Machine Benefits

Large table size
Wide range of movement
New spindle, only 6605 hrs in this new spindle, it was replaced in february 2017

Machine History

Industries

Automotive

End product

Large aluminum tools for automotive industry (for foam and injection moulding)

Material type

Aluminium

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
