Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.

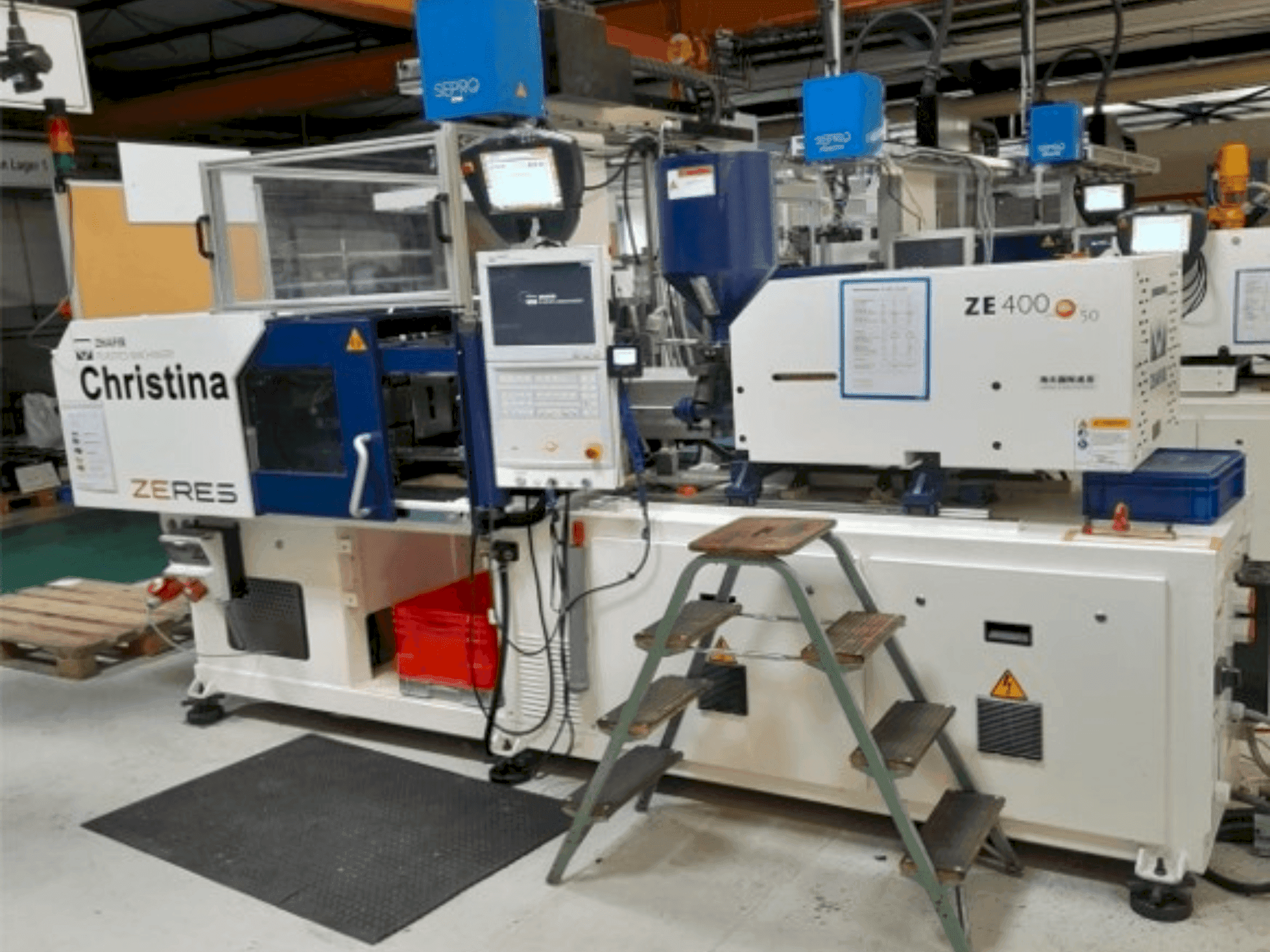

HAITIAN - ZHAFIR Zeres ZE400DE-INJ-HAI-2017-00002
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- ➤ Used HAITIAN ZHAFIR Zeres ZE400 For Sale | gindumac.com
This HAITIAN ZHAFIR Zeres ZE400 was manufactured in 2017. It is a hydraulic injection moulding machine, ideal for precision and efficiency in plastic processing. Consider the opportunity to buy this HAITIAN ZHAFIR Zeres ZE400 hydraulic injection moulding machine. Contact us for more information.
Overview
- brand: HAITIAN
- year: 2017
- MODEL: ZHAFIR Zeres ZE400
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
Technical Information - HAITIAN ZHAFIR Zeres ZE400
Dimensions
- Machine Depth: 3610 mm
- Machine Height: 1750 mm
- Machine Weight: 2800 kg
Technical Specification
- Clamping Force: 400 kN
- Screw Diameter: 16 mm
Additional Information
Machine Benefits
Technical Machine Benefits
- Platen size: 460 x 440 mm
- Distance between uprights: 320 x 280 mm
- Installation height: 150/320 mm
- Max. Ejector bar length: 160 mm
- Ejector coupling: central haitian standard Ø 20mm / m12
- Centering ring bwap & fap: 100 mm
- Cascade control: 4-fold
- Core pulls bwap: 1 pcs
- Air valves: 2
- Hot runner control units: external
Extra Information
Injection Unit Screw Type: A L/D Ratio: 21 Injection Capacity (PS): 11 g Hold Pressure: 234 Mpa or 2380 Kgf/cm2 Screw Rotate Speed: 400 RPM Nozzle Contact Force: 9.8 KN {1.0} tf Nozzle in Size: 45 mm Heater Power: 4.3 KW Clamping Unit Toggle Stroke: 235 mm Space Between Tie Bars (H x V): 320 x 280 mm Minimal Mold Size (H x V): 205 x 180 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
