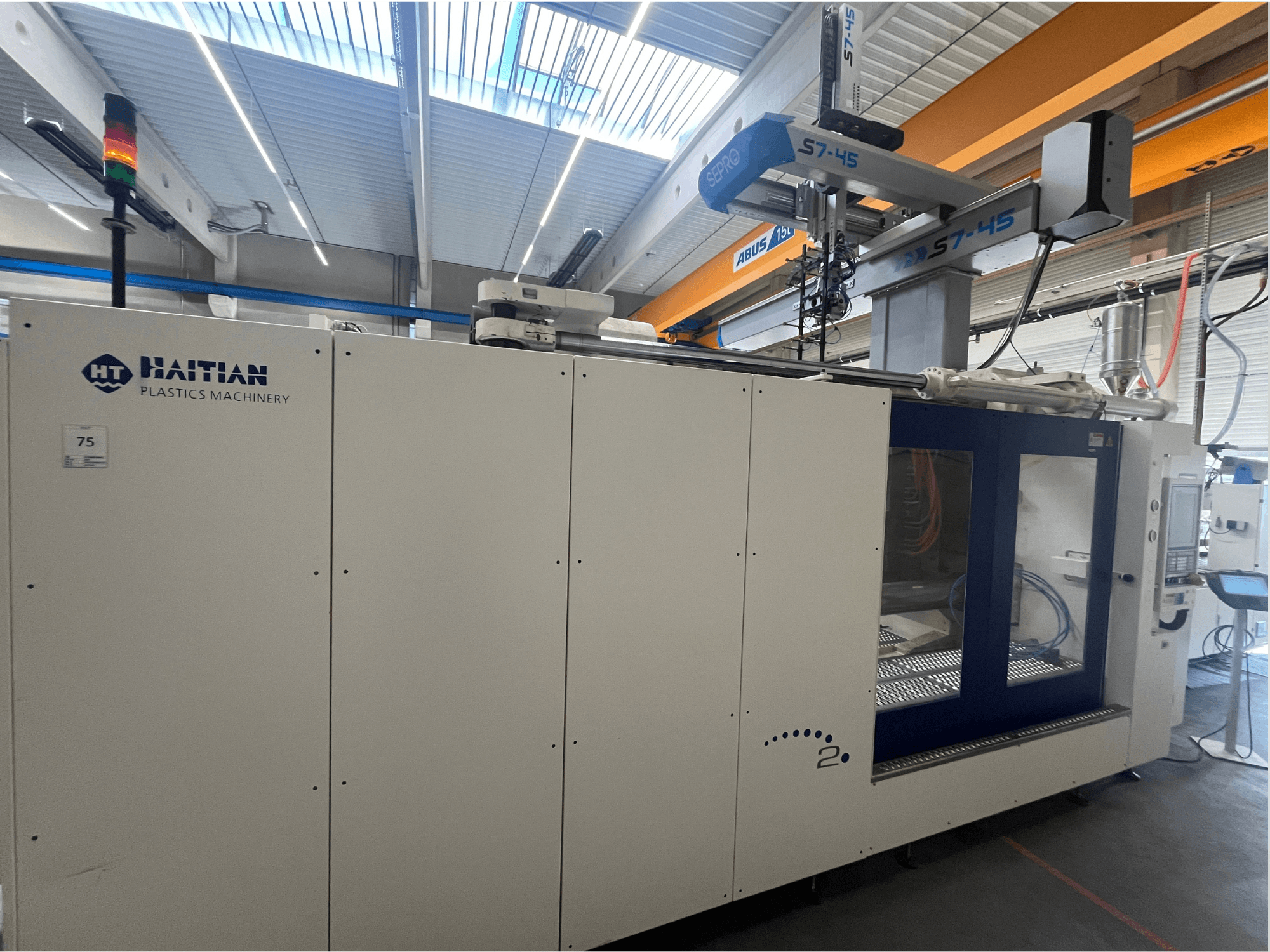

This HAITIAN JU12000II/8400 was manufactured in 2017. It features a screw diameter of 110 mm and operates with a power of 135 kW. The machine runs on AC 400 V, 50 Hz, and can handle a nominal current of 279 A. Weighing 56,000 kg, it's robust for demanding tasks. Consider the opportunity to buy this HAITIAN JU12000II/8400 hydraulic injection moulding machine. Contact us for more information.
Overview
- brand: HAITIAN
- year: 2017
- MODEL: JU12000II/8400
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
Technical Information - HAITIAN JU12000II/8400
Dimensions
- Machine Weight: 56000 kg
Additional Information
Power: 135 kW
Voltage: AC 400 V, 3P / N / PE, 50 Hz
Nominal Current: 279 A
Short-circuit Resistance: 25 kA
Screw Diameter: Ø 110 mm
Clamping force: 1200 tons
Injection unit
Screw diameter: 110 mm
Shot volume: 4847 cm³
Injected weight: 4410 g
Mold / Platens
Plate spacing: 1300 × 1200 mm
Minimum mold height: 600 mm
Maximum mold height: 1250 mm
Core pulls
Fixed core pulls: 2
Movable core pulls: 2
Valves / Zones
Pneumatic valves: 1
Hydraulic valves: 0
Heating zones: 4
Operating data
Operating hours: 63,296 h
Fully automatic operation time: 23,247 h
Number of shots: 781,107
Automation & Peripherals
Robot: Sepro S7.45
Hopper: Moretto TMC12
Dosing unit: Symetric GM115-AD
axis X 3000 mm
axis Y 1100 mm
axis Z 2200 mm
nominal payload (part and end of arm tool) 30 kg
Control & System
VISUAL 2 control
PC monitor with software
Direct PC–robot connection
CE certified
Performance & Motion
High torque design
Powerful servo motors
Anti-vibration software
High acceleration
Short cycle times
Installation & Cabinet
Fixed plate installation
Beam-mounted control cabinet
Optional floor-mounted cabinet
I/O & Interfaces
16x I/O
EU 67 interface cable (10 m)
USB/PC interface
Pneumatics & Vacuum
1 vacuum / pressure circuit (venturi)
C-axis pneumatic rotation (0–90°)
Teaching & Operation
Mobile teaching box
10" LCD display
10 m cable
Operation & maintenance manual
Spare parts list
power Supply
400V, 3-phase
Linear System & Durability
SLS linear guides (X & Z axis)
High reliability for heavy loads
Resistant to:
Abrasive dust
PVC vapors
Water vapor
Integrated lubrication
Low maintenance (1× per year)
Robot Series
HAITIAN by SEPRO S7
Heavy duty design
High speed operation
Suitable for:
Axial configurations
Dual arms
Dual motion
Machine Compatibility
For IMM 700 – 5000 tons clamping force
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
