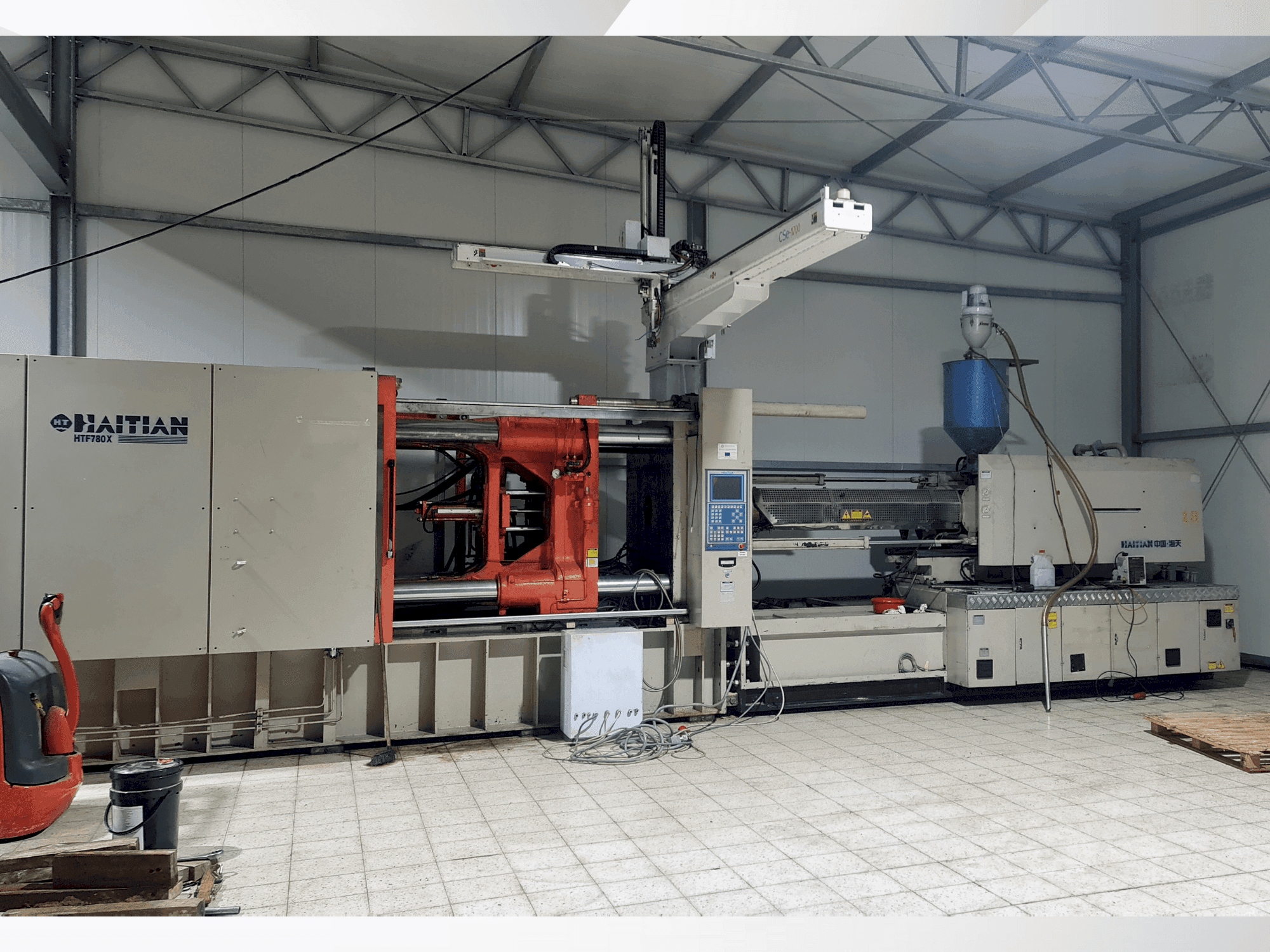

Front view of HAITIAN HTF 780x  machine

HAITIAN - HTF 780xPL-INJ-HAI-2005-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Haitian HTF 780x was manufactured in 2005. It includes a ROBOT STAR type CSE 1700 and boasts a clamping force of 7800 kN with a screw diameter of 100 mm. The injection moulding machine has a maximum injection volume of 3456 cm³ and a plasticizing capacity of 85.2 g/s, making it highly efficient for large-scale production. The Haitian HTF 780x machine we have for sale is a robust addition to any plastics processing facility. Contact us for further details.

Overview

  • brand: HAITIAN
  • year: 2005
  • MODEL: HTF 780x
  • application type: Injection Moulding
  • Location: Poland
  • machine type: Hydraulic Injection Moulding Machine
  • availability: Sold

Technical Information - HAITIAN HTF 780x

General Data

  • Measurements width: 2600 MM
  • Measurements depth: 10500 MM
  • Measurements height: 3800 MM
  • Machine weight: 45000 KG

Injection Unit

  • Screw diameter: 100 mm
  • Shot weight: 3145 g
  • Injection pressure: 184 MPa BAR
  • Plasticizing rate max.: 85.2 g/s
  • Screw speed: 0-110 rpm
  • Heating capacity: 58.45 kW

Clamping unit

  • Clamping force: 7800 kN
  • Distance between bars: 980 x 980 mm
  • Mould height min: 400 mm
  • Mould height max: 980 mm
  • Ejector stroke: 260 mm
  • Ejector force for / back: 186 kN

Media

  • Oil tank: 1778 L

    Additional equipment

    • - ROBOT STAR type CSE 1700

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - High injection capacity and speed, robust clamping force
      • Qualitative Machine Benefits:
        • - High plasticizing capacity, precise control over injection parameters

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
