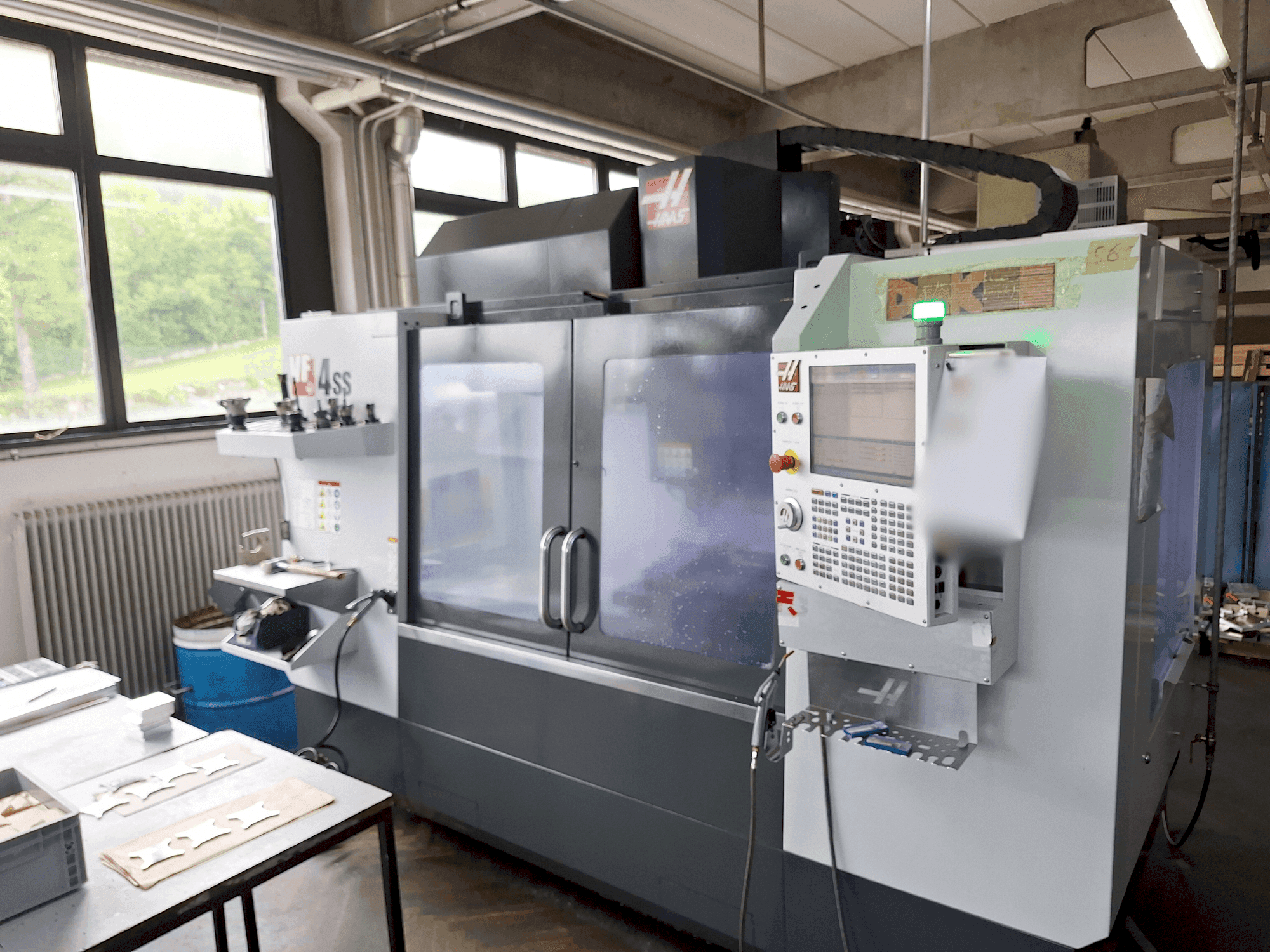

This 3-axis HAAS VF-4SS Machining Center was manufactured in 2019. It features a robust 1270 mm X-axis, 508 mm Y-axis, and 635 mm Z-axis travel, complemented by a high-speed spindle capable of 12000 rpm and 22.4 kW power. The machine supports a table load of 794 kg and includes a 30+1 tool changer for efficient operations. Ideal for precision machining, the HAAS VF-4SS machine we have for sale offers significant capabilities. Contact us for further details regarding this Machining Center.
Overview
- brand: HAAS
- year: 2019
- MODEL: VF-4SS
- application type: Milling
- Location: Slovenia
- machine type: Machining centers (vertical)
- availability: Immediately
Technical Information - HAAS VF-4SS
General Data
- Machine weight: 6260 KG
Main drive
- Spindle speed range: 12000 1/MIN
- Spindle motor power: 22.4 kw
- Tool taper: CT40, BT40, HSK-A63
- Number of axis: 3
Movement
- X-AXIS Movement: 1270 mm
- X-AXIS Feed Force: 13723
- X-AXIS Rapid traverse: 35.6 m/min
- Y-AXIS Movement: 508 mm
- Y-AXIS Feed Force: 13723 n
- Y-AXIS Rapid traverse: 35.6 m/min
- Z-AXIS Movement: 635 mm
- Z-AXIS Feed Force: 17459 n
- Z-AXIS Rapid traverse: 35.6 m/min
Table
- Outer length: 1321 mm
- Outer width: 495 mm
- TSlots size: Width: 15.90 mm to 16.00 mm. Center distance: 80 mm
- Min distance between vertical spindle and table: 107 mm
- Max distance between vertical spindle and table: 742 mm
- Table load: 794 kg
Tools
- Slots in storage: 30 + 1
- Max weight: 5.4 kg
- Max tool diameter: 127 mm
- Max tool length: 330 mm
Additional Information
- Technical Machine Benefits:
- - Maximum torque: 122. 0 nm at 2000 rpm
- - Drive system inline direct-drive
- - Bearing lubrication air / oil injection
- - Coolant capacity: 208 l
- - Tool-to-tool (avg): 1. 80 s
- - Chip-to-chip (avg): 2. 40 s
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
