- ➤ Used HAAS VF-4SS - 2019 - Vertical Machining Center

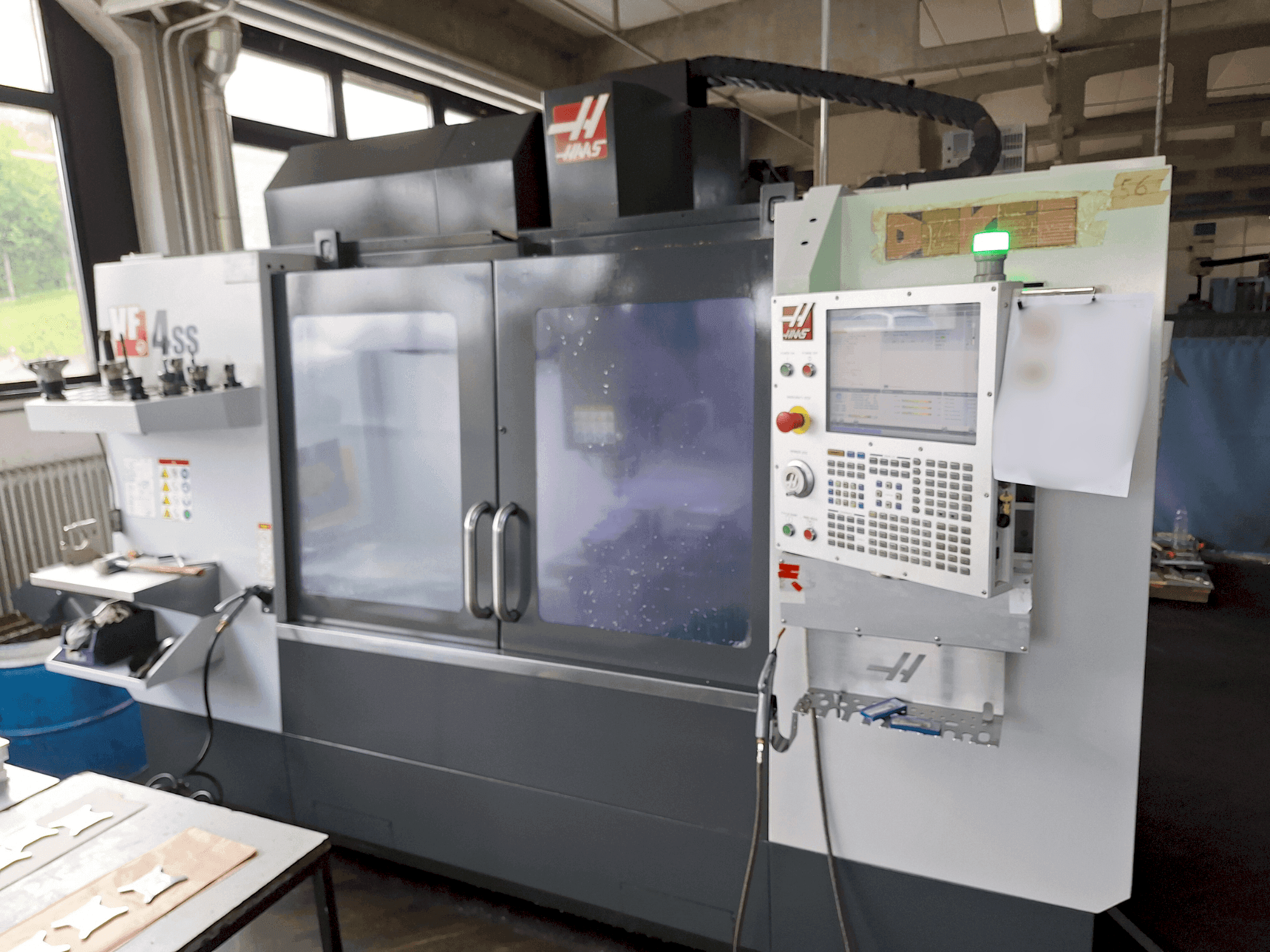

This 3-axis HAAS VF-4SS was manufactured in 2019, featuring a robust vertical machining center design. It boasts a spindle speed of 12000 rpm and a spindle power of 22.4 kW, ensuring high-efficiency machining. The machine includes a 30+1 tool changer and supports a maximum table load of 794 kg. Rapid movements reach up to 35.6 m/min on all axes, enhancing productivity. For more information about this Machining Center, please reach out to us.
Overview
- brand: HAAS
- year: 2019
- MODEL: VF-4SS
- application type: Milling
- Location: Slovenia
- machine type: Machining centers (vertical)
- availability: Immediately
Technical Information - HAAS VF-4SS
General Data
- Machine weight: 6260 KG
Main drive
- Spindle speed range: 12000 1/MIN
- Spindle motor power: 22.4 kw
- Tool taper: ct40 | bt40 | hsk-a63
- Number of axis: 3
Movement
- X-AXIS Movement: 1270 mm
- X-AXIS Feed Force: 13723 n
- X-AXIS Rapid traverse: 35.6 m/min
- Y-AXIS Movement: 508 mm
- Y-AXIS Feed Force: 13723 n
- Y-AXIS Rapid traverse: 35.6 m/min
- Z-AXIS Movement: 635 mm
- Z-AXIS Feed Force: 17459 n
- Z-AXIS Rapid traverse: 35.6 m/min
Table
- Outer length: 1321 mm
- Outer width: 495 mm
- TSlots size: Width: 15.90 mm to 16.00 mm. Center distance: 80 mm
- Number of tslots: 5
- Min distance between vertical spindle and table: 107 mm
- Max distance between vertical spindle and table: 742 mm
- Table load: 794 kg
Tools
- Slots in storage: 30+1
- Max weight: 5.4 kg
- Max tool diameter: 127 mm
- Max tool length: 330 mm
Media
- Air pressure: 5.5 bar
Additional Information
- Technical Machine Benefits:
- - Maximum torque: 122. 0 nm at 2000 rpm
- - Drive system inline direct-drive
- - Bearing lubrication air / oil injection
- - Coolant capacity: 208 l
- - Tool-to-tool (avg): 1. 80 s
- - Chip-to-chip (avg): 2. 40 s
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
