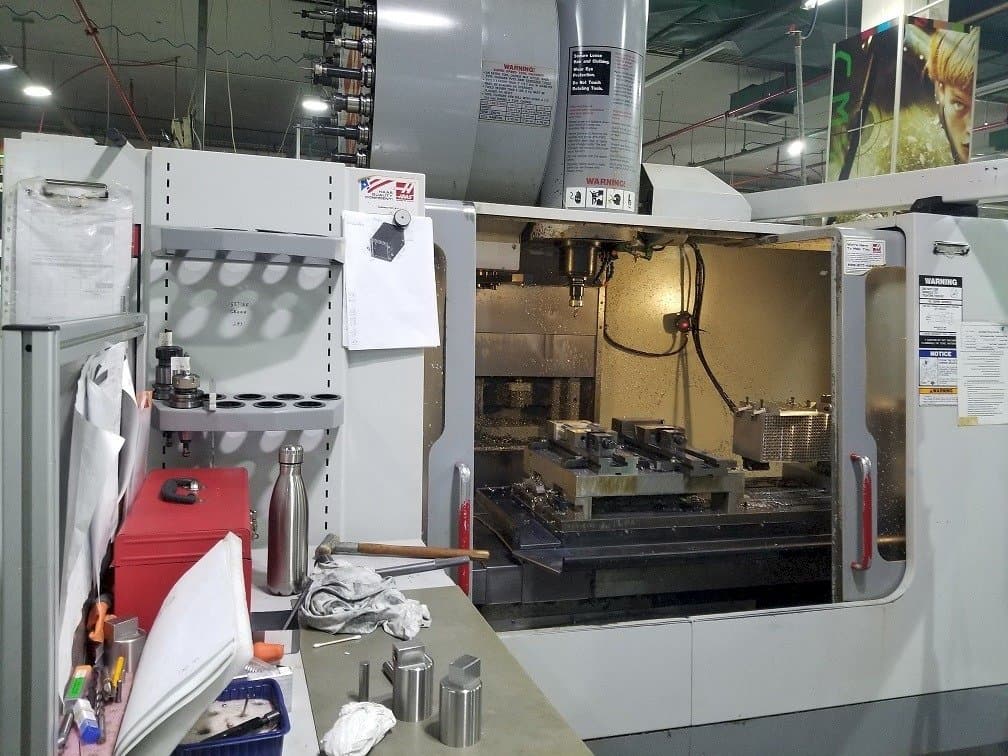

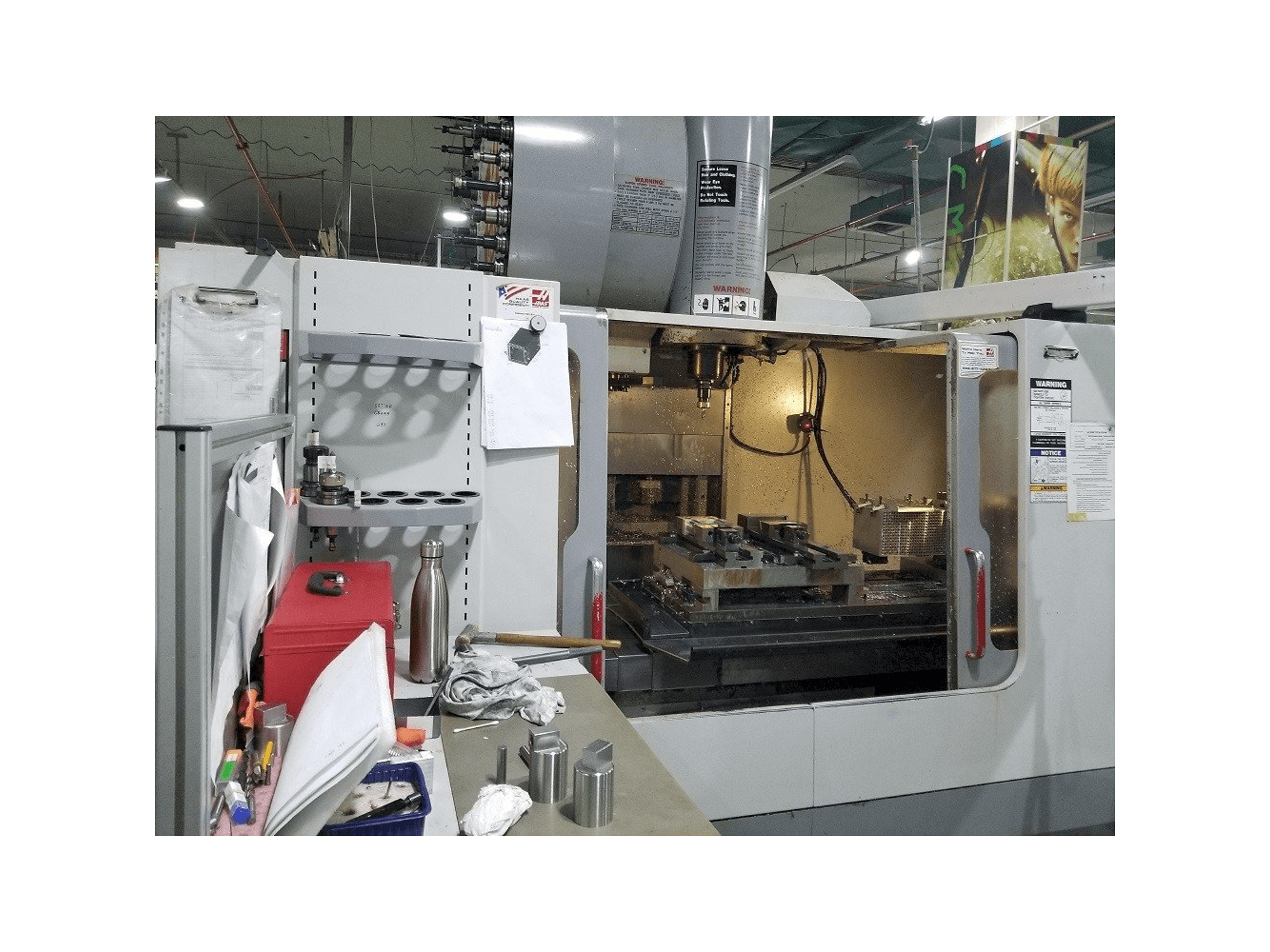

HAAS VF-4SS

Photo Gallery

HAAS - VF-4SSIL-MIL-HAA-2005-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
HAAS VF-4SS Vertical Machining Center

Show in original language

This HAAS VF-4SS Vertical Machining Center was manufactured in the year 2005 in United States. It is equipped with a control unit of the same brand. This 4 axis machine can work with a spindle speed up to 12000 rpm.

Overview

brand: HAAS
year: 2005
MODEL: VF-4SS
application type: Milling
Location: Israel
machine type: Vertical Machining Centre
control unit brand: HAAS

Technical Information - HAAS VF-4SS

General Data

Machine weight: 6033 kg

Control Unit

Model: CNC
Brand: HAAS

Main drive

Spindle speed range: 12000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 1270 mm
X-AXIS Rapid traverse: 35,5 m/min
Y-AXIS Movement: 508 mm
Y-AXIS Rapid traverse: 35,5 m/min
Z-AXIS Movement: 635 mm
Z-AXIS Rapid traverse: 35,5 m/min

Table

Outer length: 1320 mm
Outer width: 457 mm
Table load: 794 kg

Tools

Number of stations: Capacity 40+1 BT40
Max tool diameter: 76 mm

Additional Information

Machine Benefits

Qualitative Machine Benefits

Early power fault detection
Cool programable coolant nozzle
Macros
Visual quick code
Remote jog handle
Chip auger

Technical Machine Benefits

Drive system inline direct drive
Max. Rating 30 hp
Max. Torque 90 ft-lb@ 2000 rpm
Brushless axis motor: (max. Thrust)
X & y axis 1400 kg, z-axis 1780 kg
Max. Cutting: 21,15 m/min
Too changer: tool to tool 1. 6 sec chip to chip 2. 2 sec
40 position side mount automatic tool changer
High speed machining, 4th axis rotary table
Rotation & scaling, spindle orientation, rigid tapping

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
