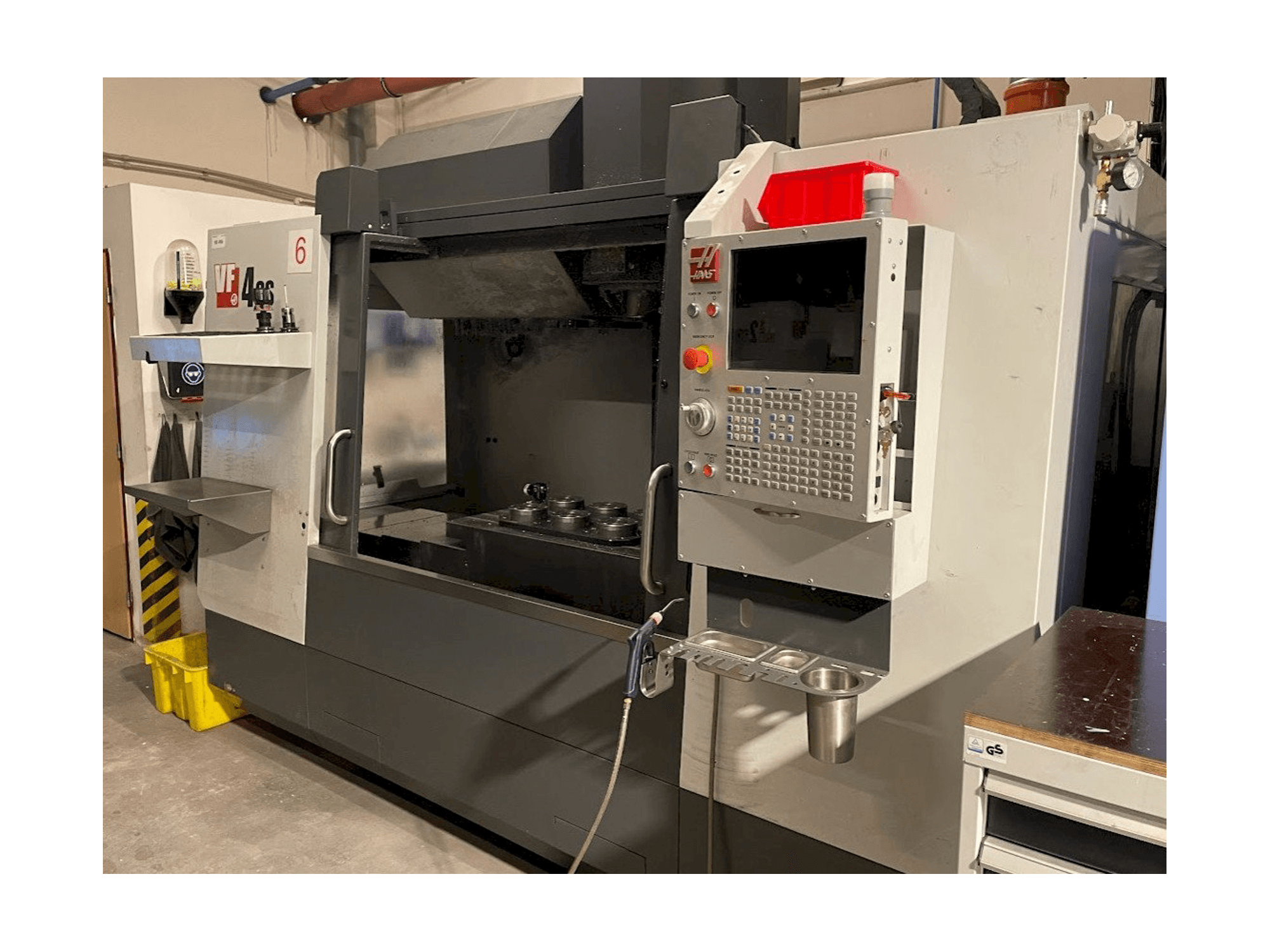

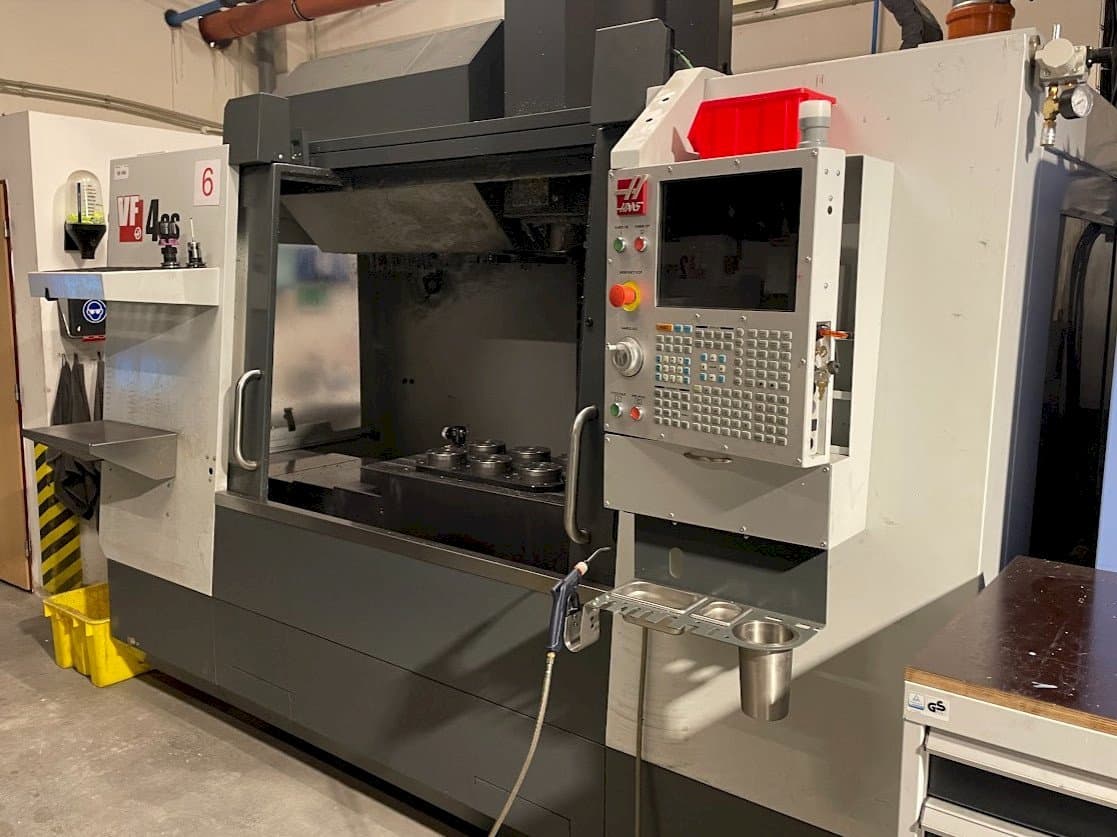

Right view of HAAS VF-4SS  machine

HAAS VF-4SS

HAAS - VF-4SS

2019

Sold

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This HAAS VF-4SS Vertical Machining center was manufactured in the year 2019 in the United States and has 10771 production hours, of which 4664 are cutting hours. It is equipped with a HAAS control unit and has 3+2 axis. The machine has a spindle speed of 12000 rpm, is in very good condition and well maintained.

Overview

  • brand: HAAS
  • year: 2019
  • MODEL: VF-4SS
  • production hours: 10771
  • application type: Milling
  • Location: United Kingdom
  • machine type: Machining centers (vertical)
  • availability: Sold
  • control unit brand: Haas
  • GINDUMAC ID: GB-MIL-HAA-2019-00002

Technical Information

General Data

  • Measurements width: 3629 mm
  • Measurements depth: 2794 mm
  • Measurements height: 2985 mm
  • Machine weight: 6033 kg

Control Unit

  • Brand: Haas

Main drive

  • Spindle speed range: 12000 1/MIN
  • Max payload: 3+2 KG

Movement

  • X-AXIS Movement: 1270 mm
  • Y-AXIS Movement: 508 mm
  • Z-AXIS Movement: 635 mm

Table

  • Outer length: 1324 mm
  • Outer width: 457 mm

Tools

  • Slots in storage: 30
  • Type of tool holder: BT 40

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Kitagawa 2 axis rotary table.
      • - Min-max height under spindle 107-742 mm
      • - Spindle motor power 29. 8 kw
      • - Wips system (wireless intuitive probing system)
      • - Tool setter, spindle probe
      • - Programmable coolant nozzle
      • - Coolant
      • - Usb port
      • - Through spindle coolant
      • - Swarf auger
    • Qualitative Machine Benefits:
      • - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
